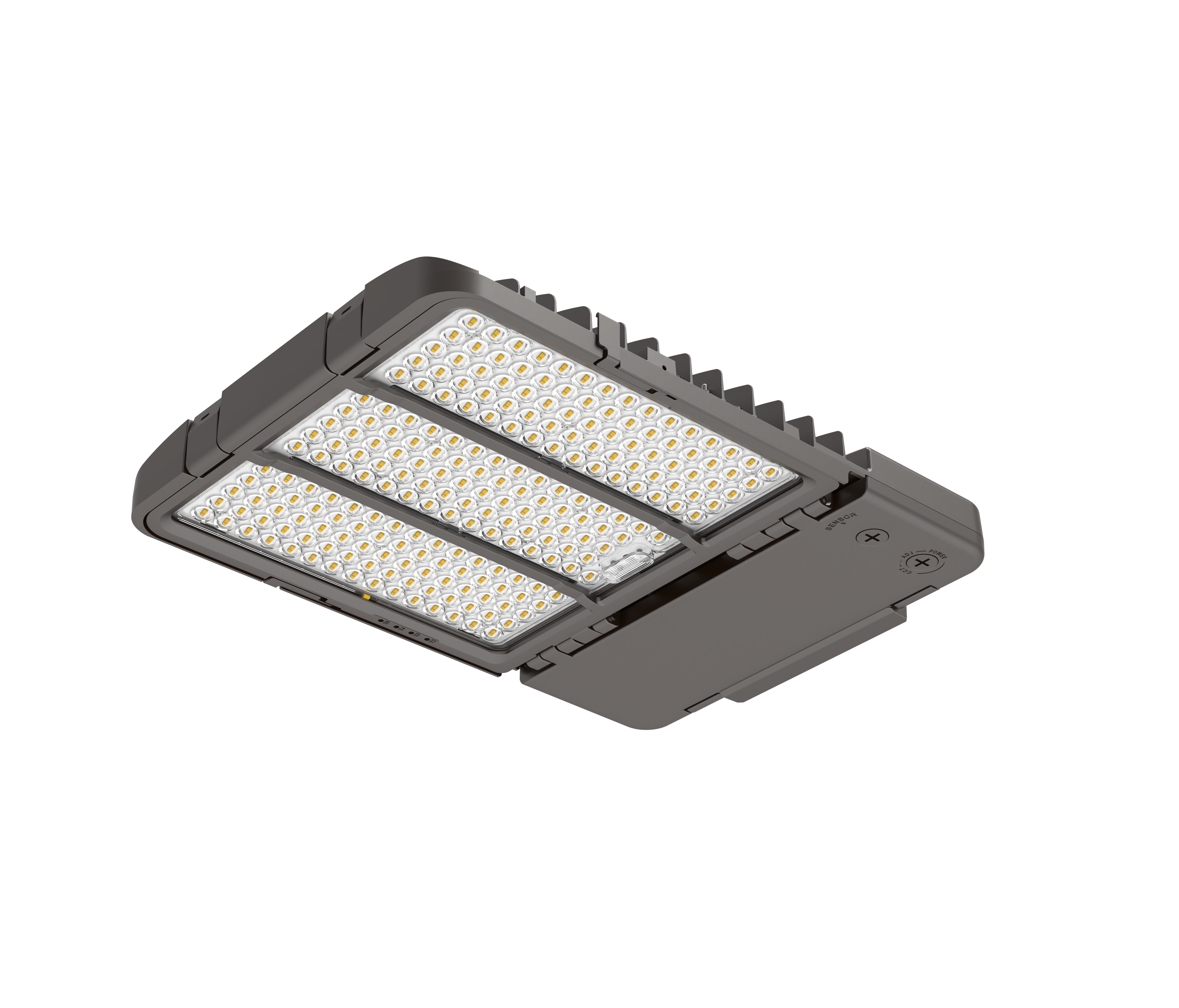

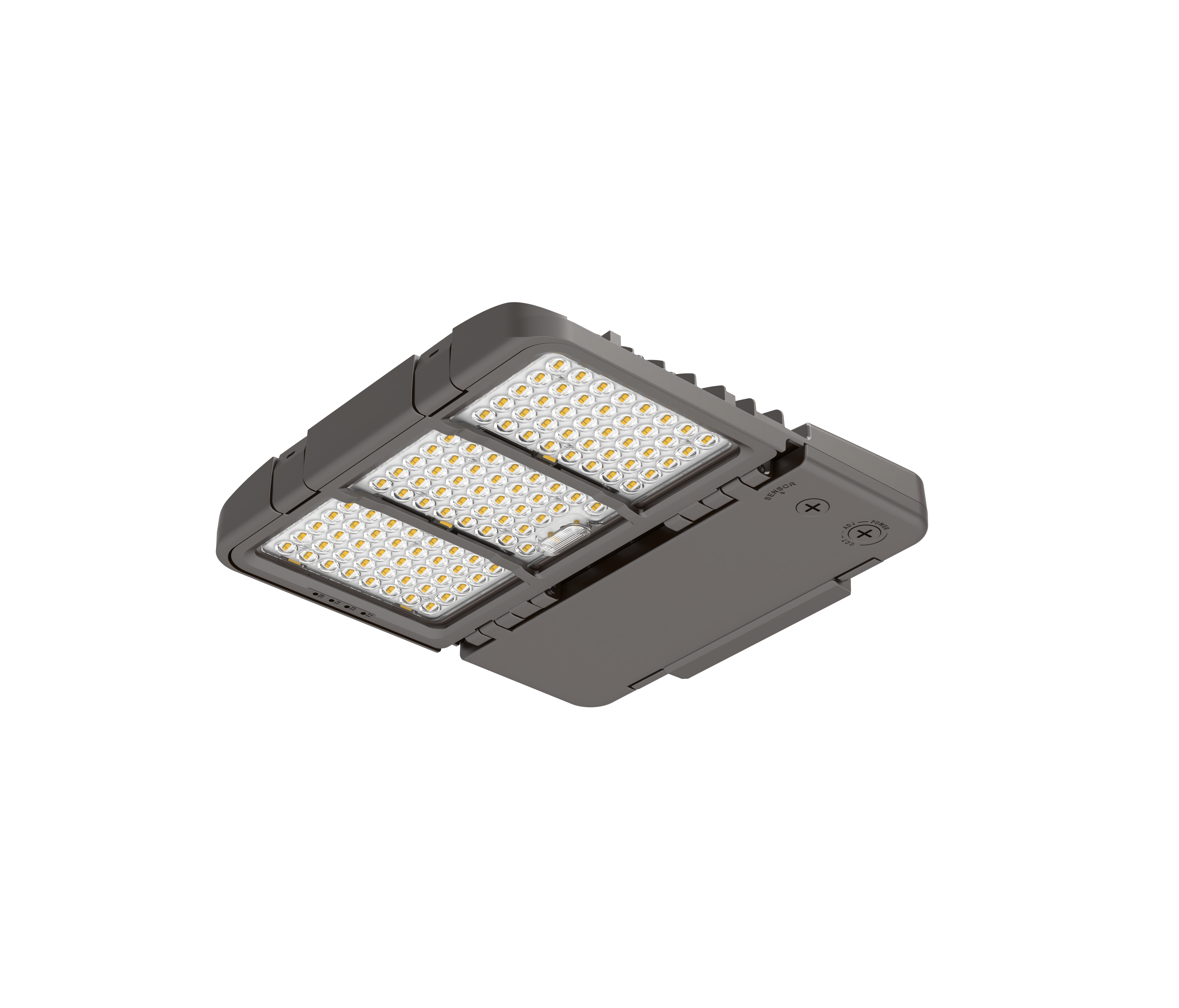

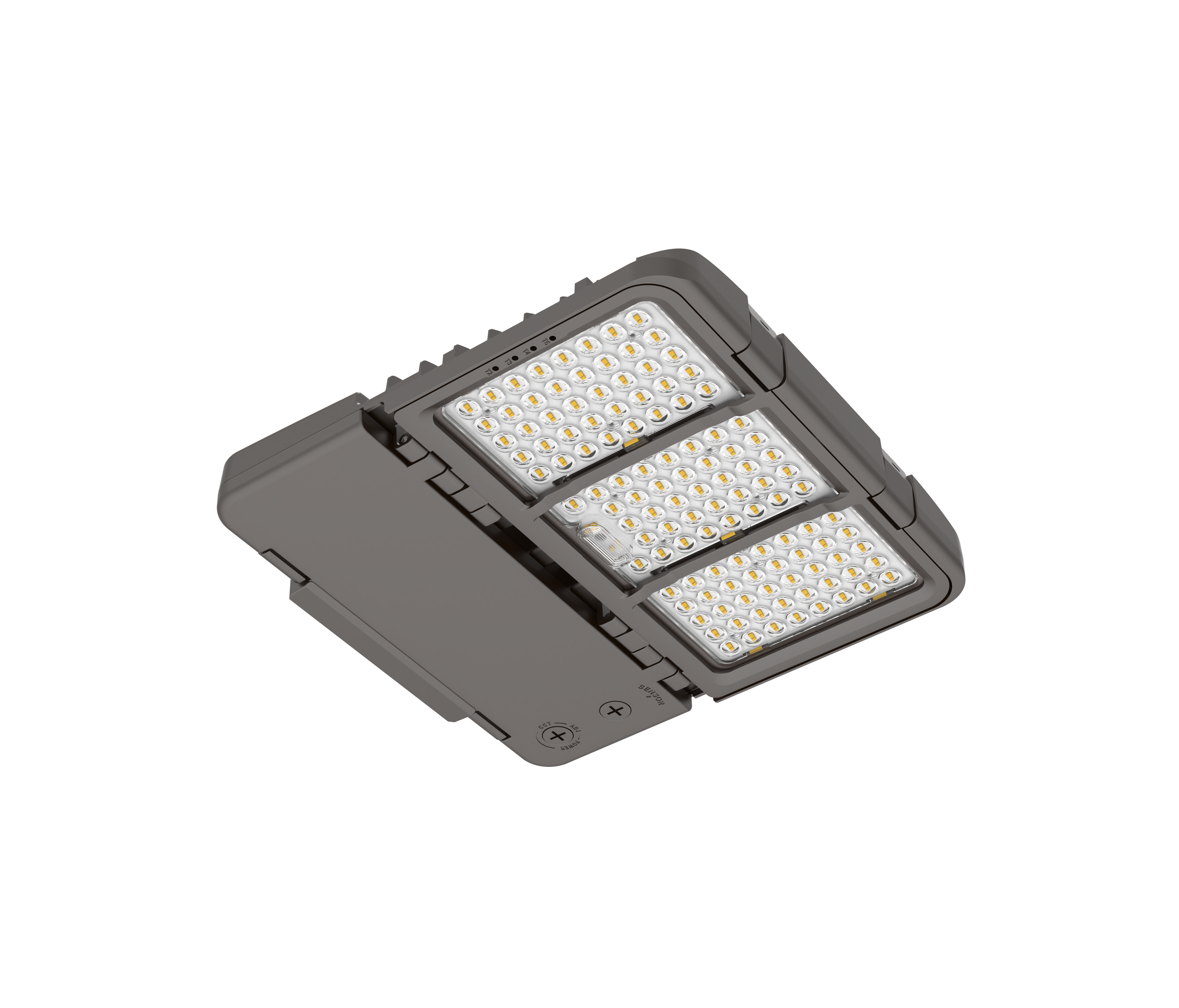

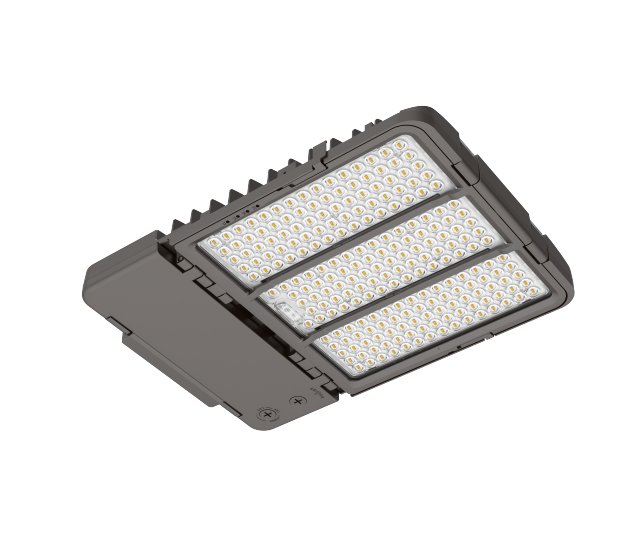

DarkSky compliant area light with CRI 80 and advanced smart control (DALI/PWM/DMX). Selectable wattage up to 320W and 48,000 lm with multiple beam distributions. Designed for environmentally sensitive installations requiring precise light control.
| Model | Wattage | Efficacy | Lumens | Input Voltage | Dimension |
|---|---|---|---|---|---|
| ALS09/150/SW | ADJ 75/90/120/150W | 135-150 lm/W | Up to 22,500 lm | 120-277 / 120-347 / 277-480V | 345×358×50mm |
| ALS09/320/SW | ADJ 200/240/280/320W | 135-150 lm/W | Up to 48,000 lm | 120-277 / 120-347 / 277-480V | 490×358×50mm |
| Parameter | Value |
|---|---|
| CRI | 80 (Optional 70) |
| IP Rating | IP66 |
| IK Rating | IK10 (Housing) / IK09 (Lens) |
| Smart Control | 0-10V / DALI / PWM / DMX |
| Color Temperature | 3000K / 4000K / 5000K |
| Colors | Black / White / Bronze / Gray / Green |
| Beam Angle | Selectable Type II / III / IV / V, BLC / TT |
| Sensor | Photocell / Z10 / Motion Sensor & Remote |

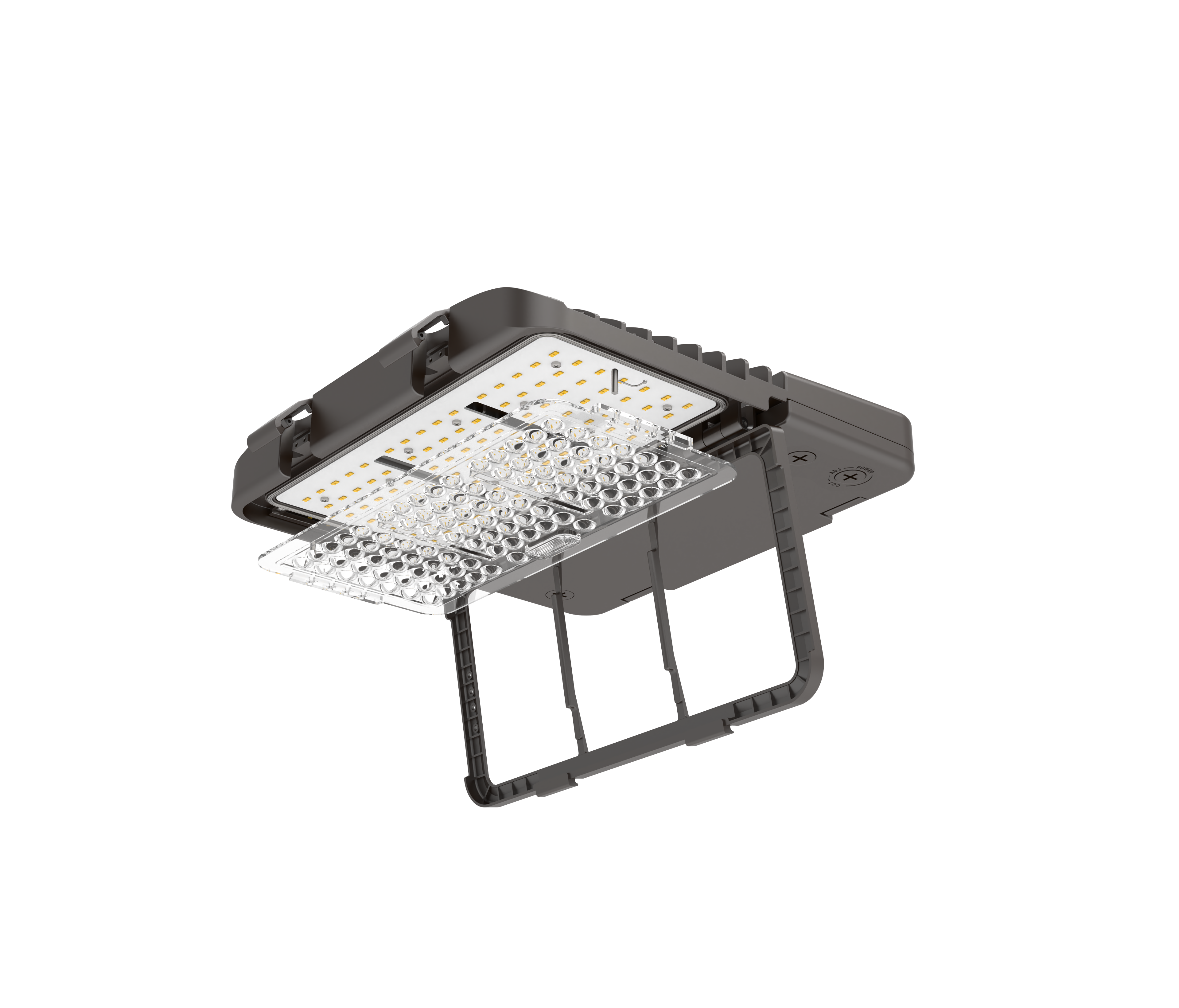

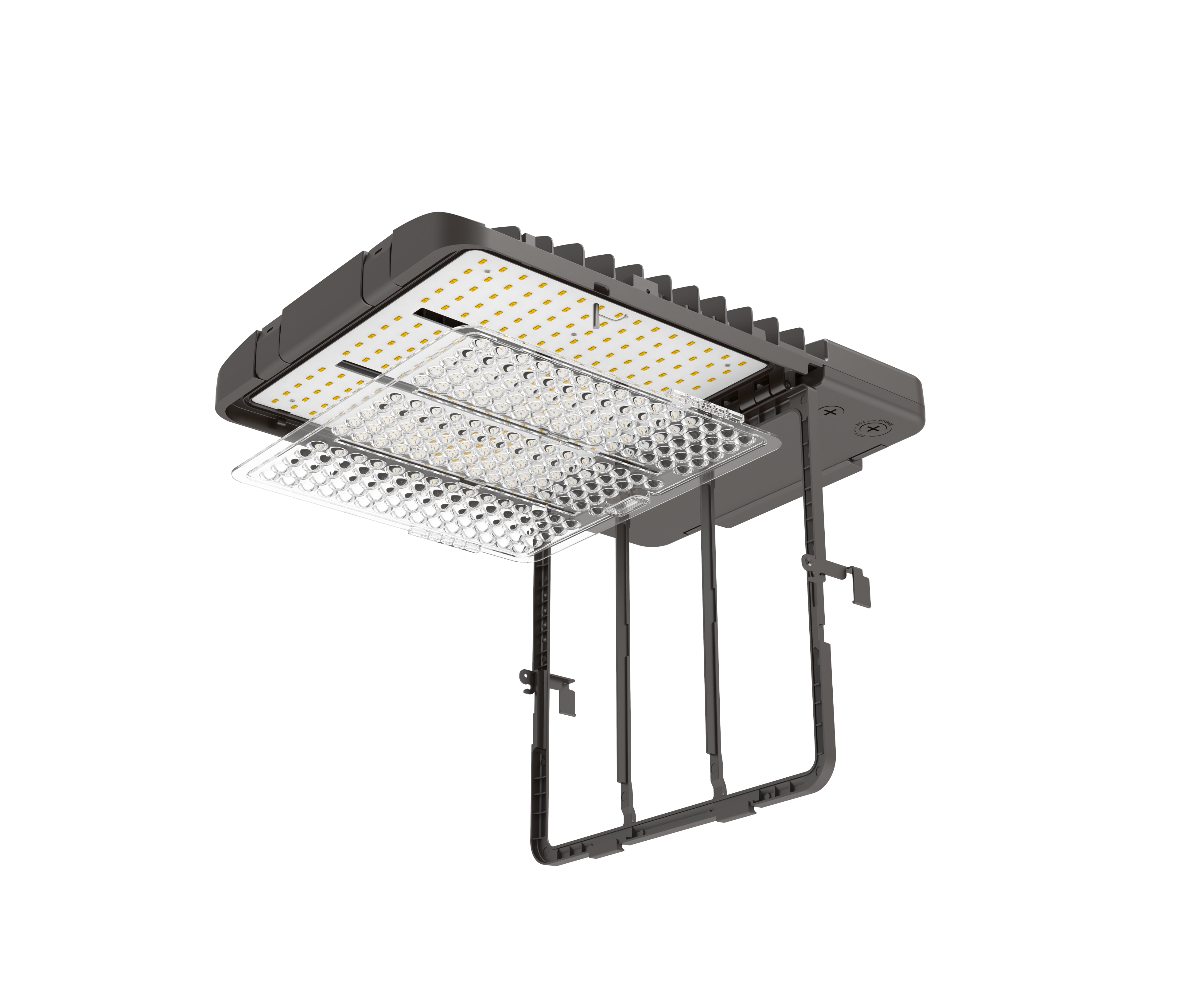

| Mounting | Slip Fitter / Yoke / Fixed Universal / Direct / Wall Mount |
| Operating Temp | -40℃ ~ 50℃ |
| Weight (150W) | 4.5 kg / 9.92 lb |
| Weight (320W) | 5.5 kg / 12.13 lb |
| Warranty | 5 Years (Optional 7 Years) |
| Lifetime | L70B50: 100,000 hrs @ 25℃ |
Parking Lots · Roadways · Commercial Sites · Environmentally Sensitive Areas
