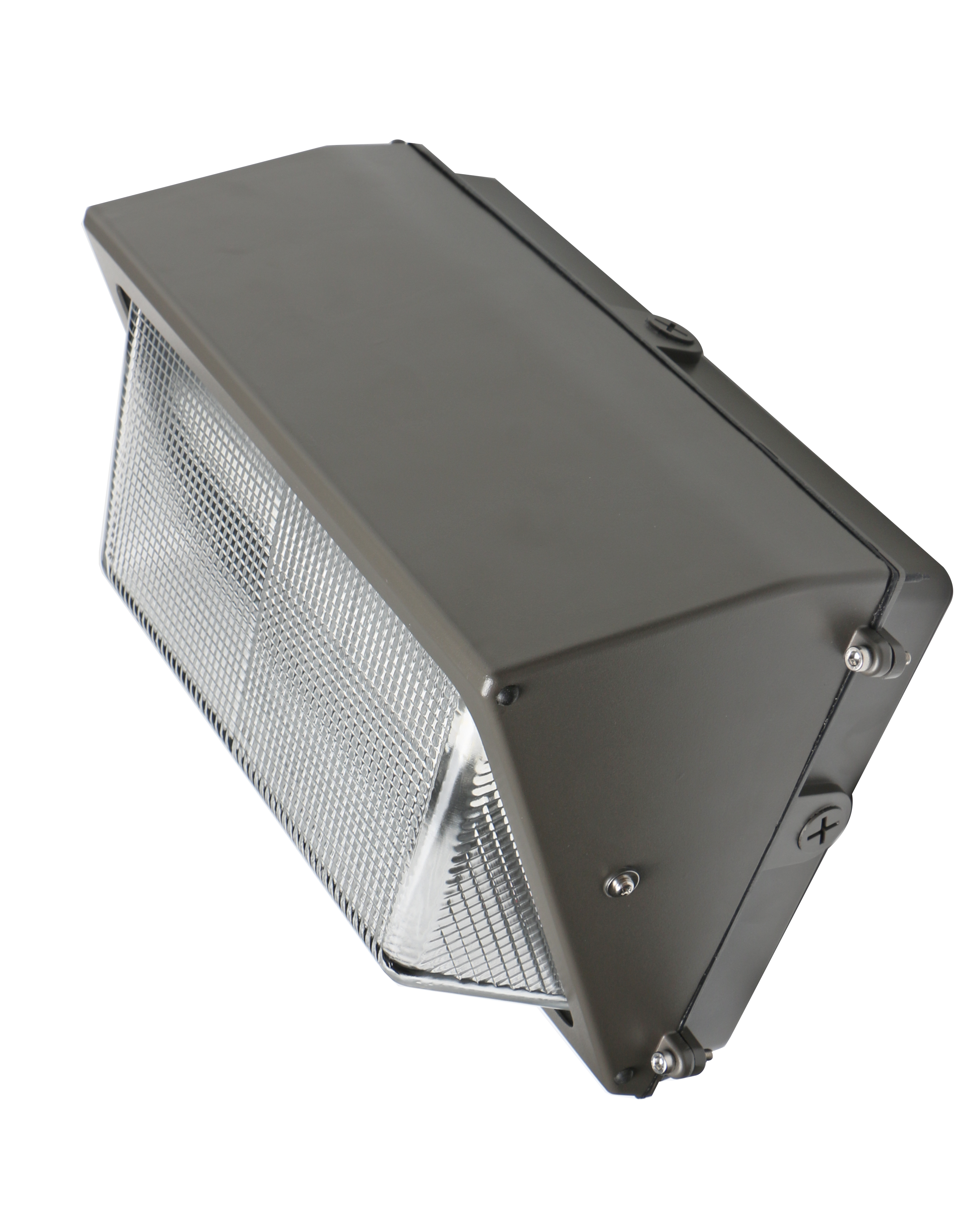

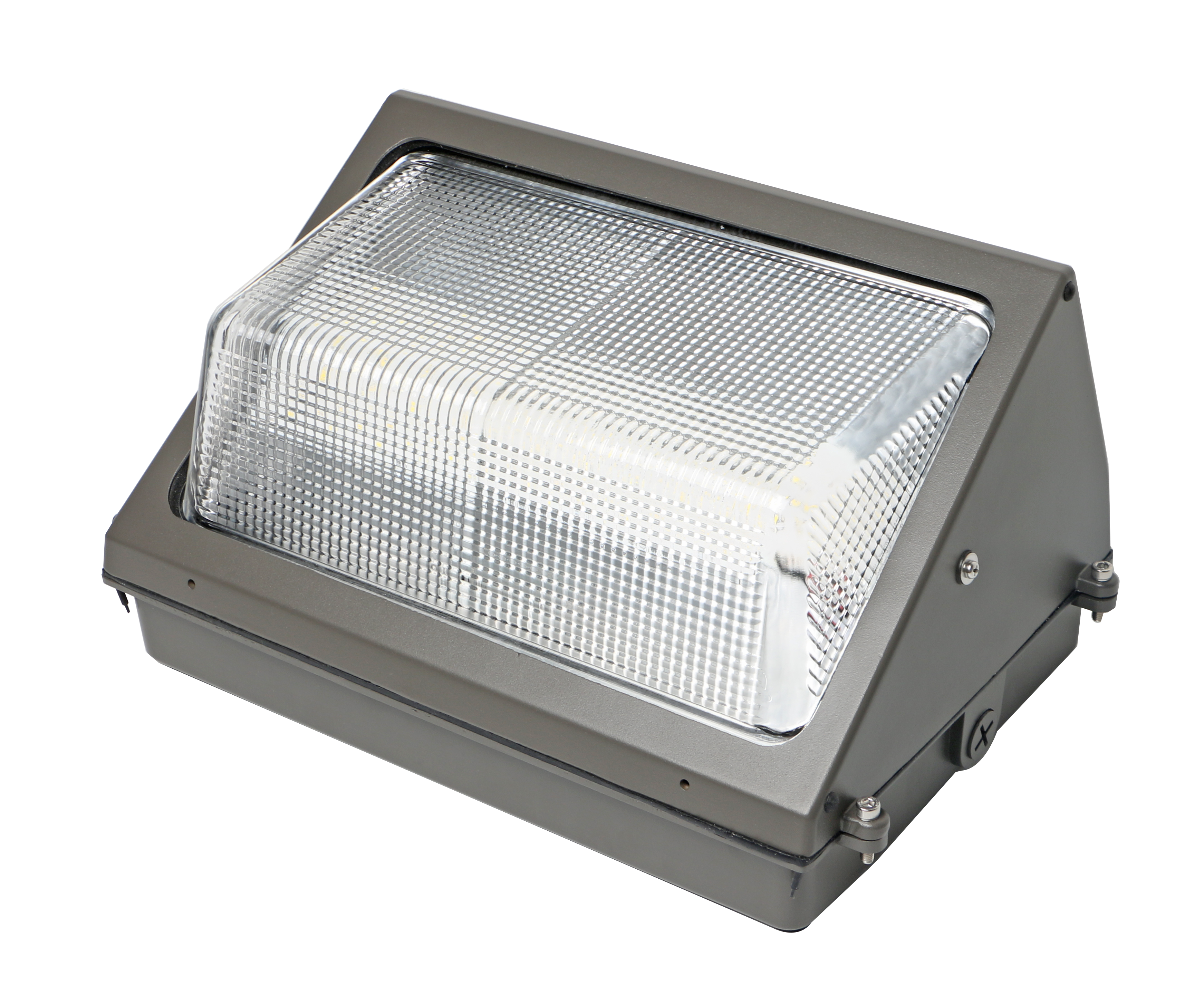

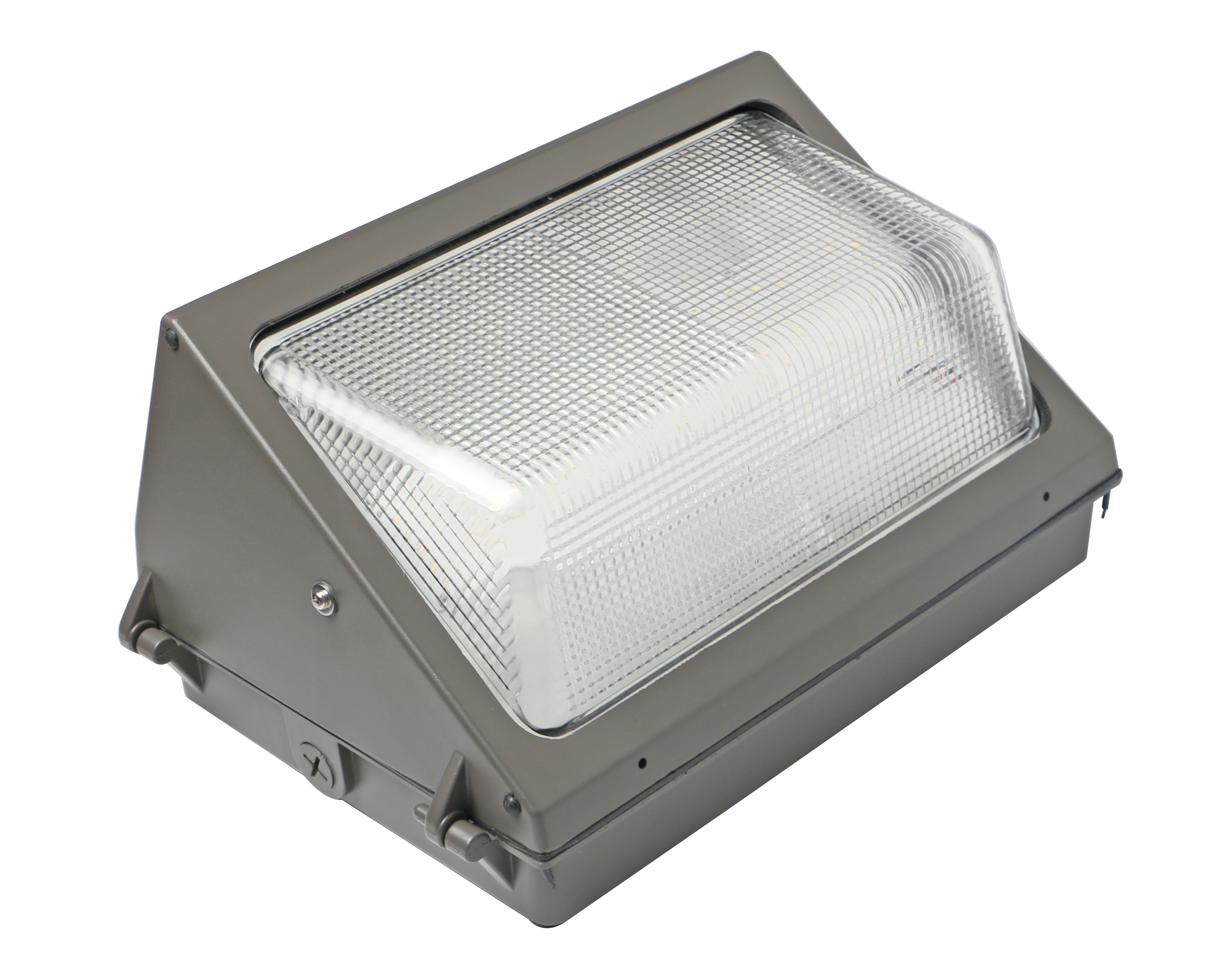

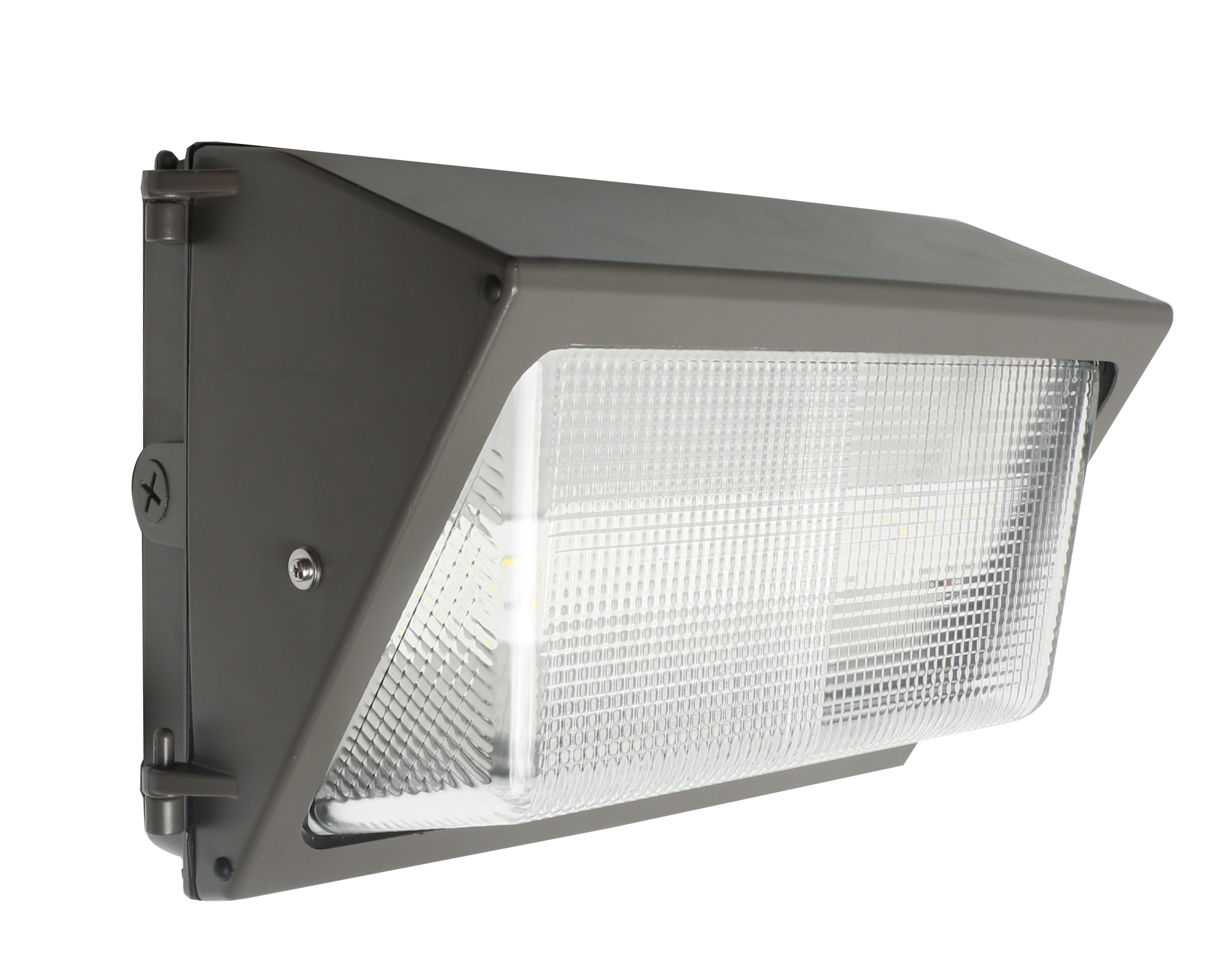

IP65 full throw LED wall pack light with switchable wattage and 3 adjustable CCT for outdoor large-area perimeter lighting.
| Model | Wattage | Efficacy | Fixture Flux | Surge Protection | Beam Angle | Input Voltage | Dimension(LWH) | Weight |
|---|---|---|---|---|---|---|---|---|
| WPT05/60/SW/CCT3/BZ-PHO | ADJ 28/38/60W | 150 lm/W | 4200/5700/9000 lm | 4KV | F.Throw | 100-277V / 120-347V | 229.95185.23232.86mm / 9.057.299.21" | 3.54KG / 7.8LB |
| WPT05/100/SW/CCT3/BZ-PHO | ADJ 60/80/100W | 150 lm/W | 9000/12000/15000 lm | 4KV | F.Throw | 100-277V / 120-347V | 362.85233.82232.7mm / 14.297.519.16" | 4.2KG / 9.26LB |
| Parameter | Value |
|---|---|
| CRI | >80 |
| IP Degree | IP65 |
| Dimming Mode | 0-10V |
| Housing Color | Black / White / Bronze |
| Sensor Options | Photocell / Motion Sensor |
| Mounting Type | Wall Mount |
| Operating Temp | -40°C ~ 50°C |
| CCT | 3 Adjustable Color Temperatures |
| Surge Protection | 4KV |
| Beam Angle | F.Throw (Long Range) |
| Warranty | 5 Years |
| Lifetime | L70B50: 100,000 hrs @ 25°C |
| Certifications | DLC Premium, LM79, LM80, ETL, FC |
Applications
Large commercial building outer walls, parking lots, industrial warehouse perimeter, highway side walls, campus long-distance outdoor lighting
