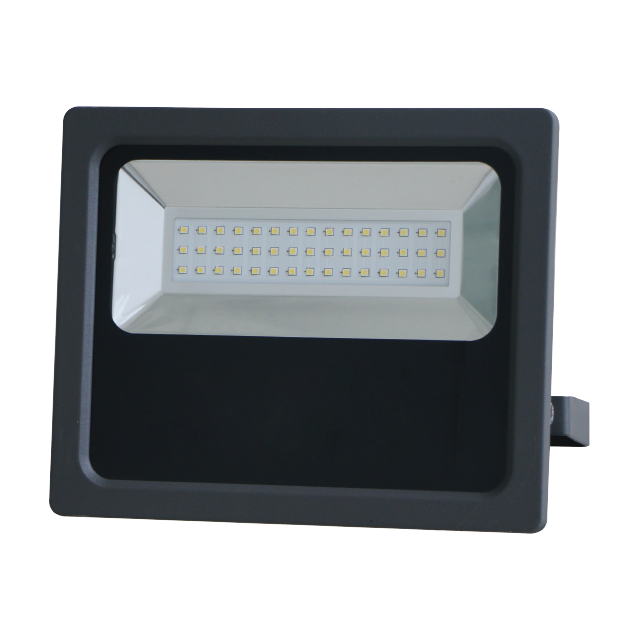

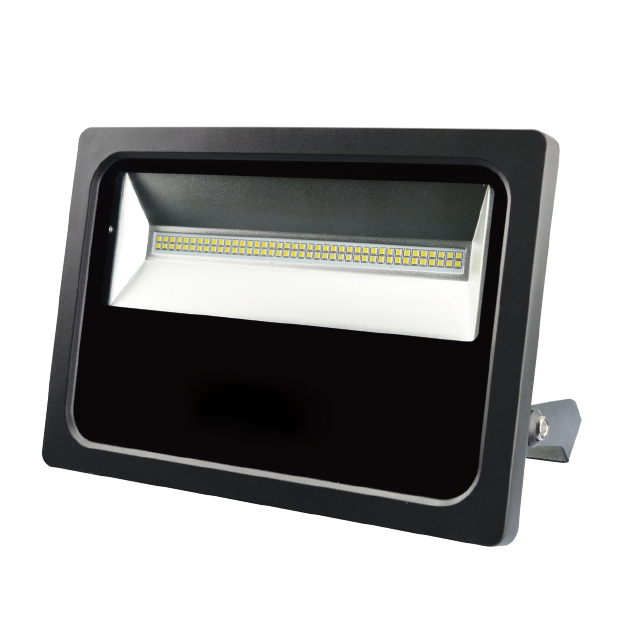

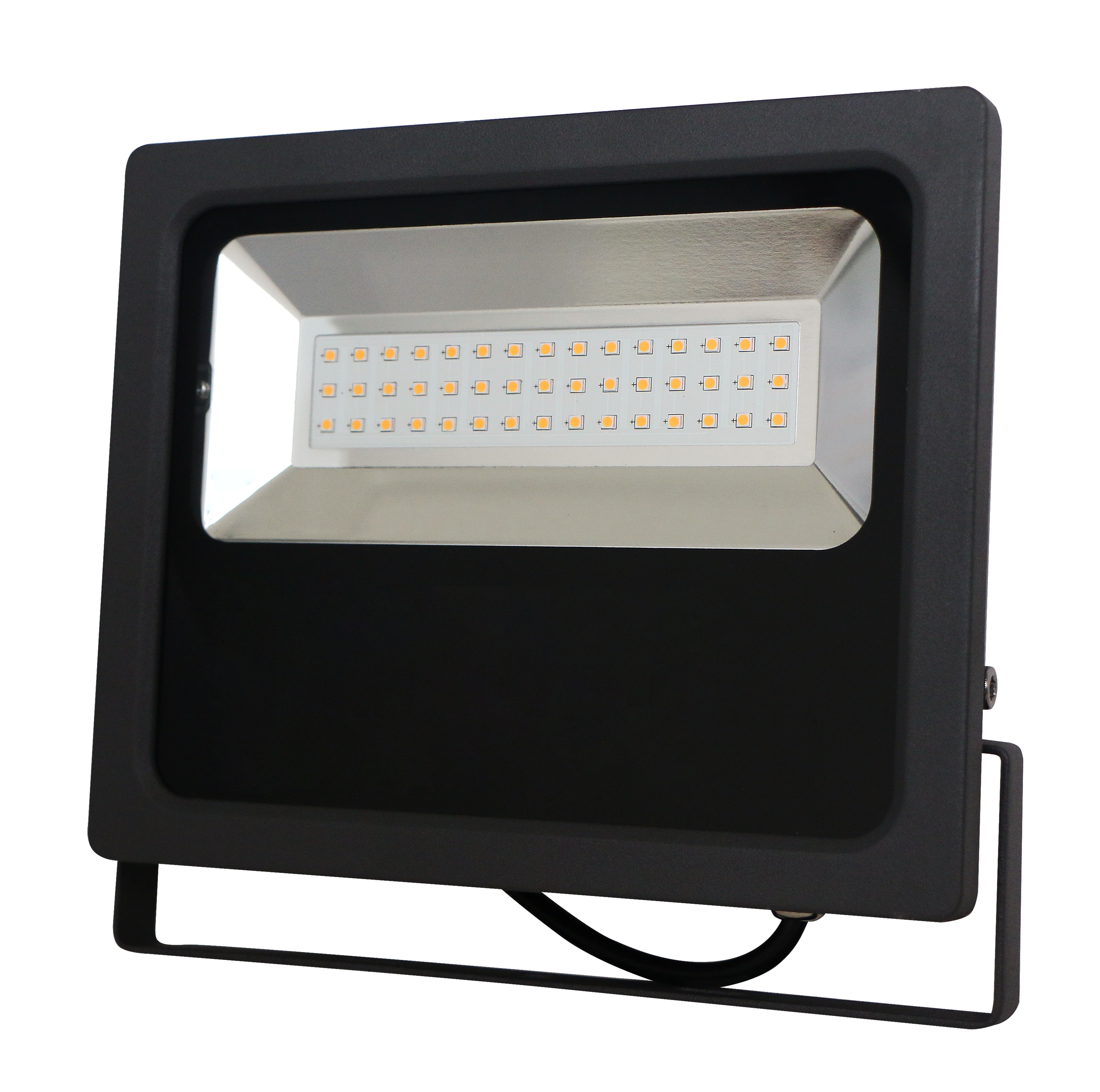

Full-range flood light from 10W residential to 200W commercial. Dual-wattage models (e.g. 70/100W, 150/200W) reduce inventory while covering more project requirements. Wide 110° beam for general area flooding.
| Model | Wattage | Lumens | Surge | Input Voltage | Dimension |
|---|---|---|---|---|---|
| FG112-10/20W | 10/20W | 1,200 / 2,400 lm | 4KV | 120-240V | 136×122×36mm |
| FG112-30W | 30W | 3,600 lm | 4KV | 120-277V | 180×155×47mm |
| FG112-50W | 50W | 6,000 lm | 4KV | 120-277V | 223×207×43mm |
| FG112-70/100W | 70/100W | 8,400 / 12,000 lm | 4KV | 120-277V | 255×251×55mm |
| FG112-150/200W | 150/200W | 18,000 / 24,000 lm | 4KV | 120-277V | 391×358×61mm |
| Parameter | Value |
|---|---|
| CRI | 70 |
| IP Rating | IP65 |
| IK Rating | IK07 |
| Dimming | 0-10V |
| Color Temperature | 3000K / 4000K / 5000K |
| Colors | Black |
| Beam Angle | 110° |
| Surge Protection | 4KV |
| Sensor | PIR Light Control |
| Mounting | Bracket |
| Operating Temp | -30℃ ~ 45℃ |
| Warranty | 5 Years |
| Lifetime | L70B50: 50,000 hrs @ 25℃ |
Building Facades · Billboards · Sports Courts · Parking Lots · Industrial Yards
