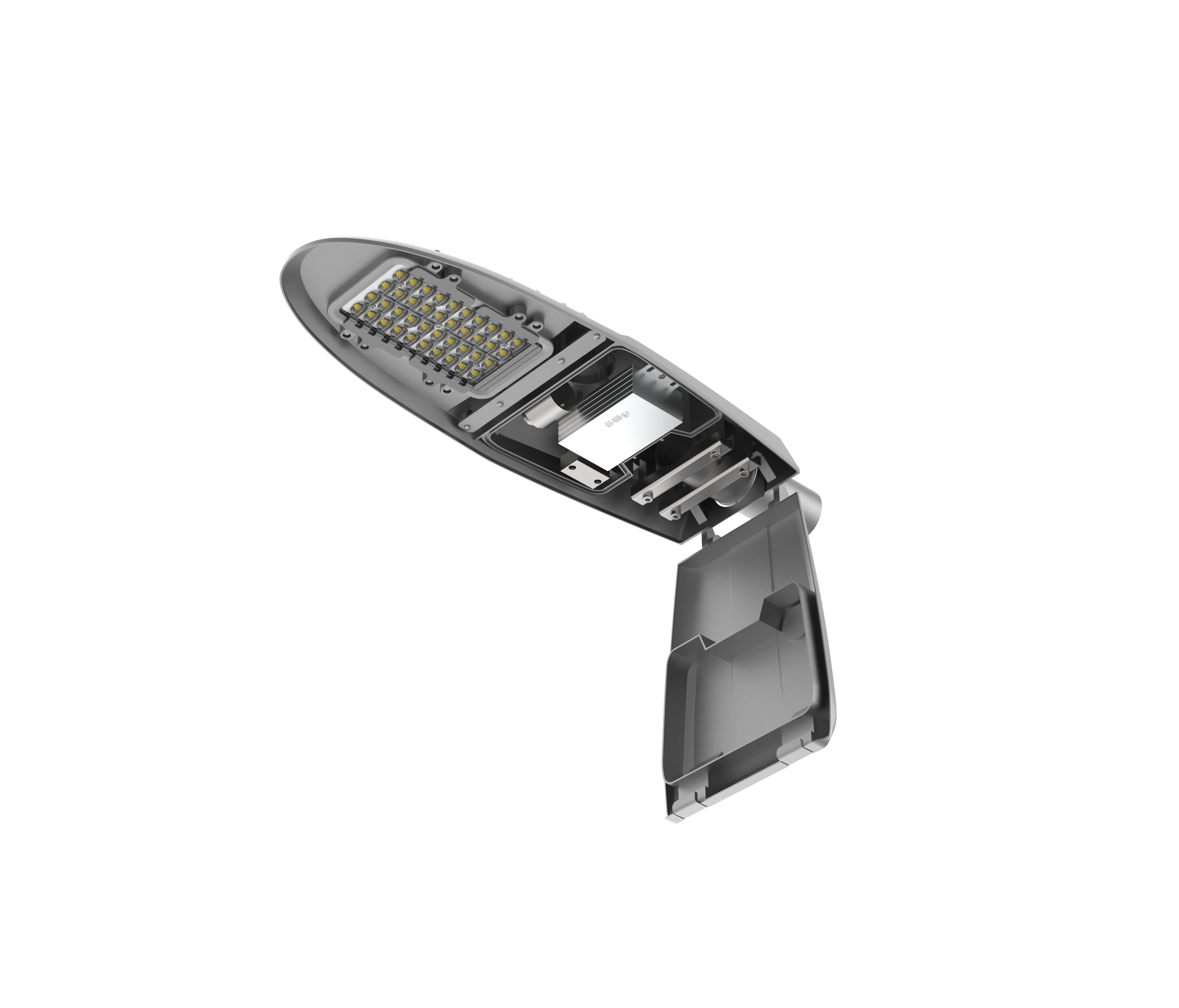

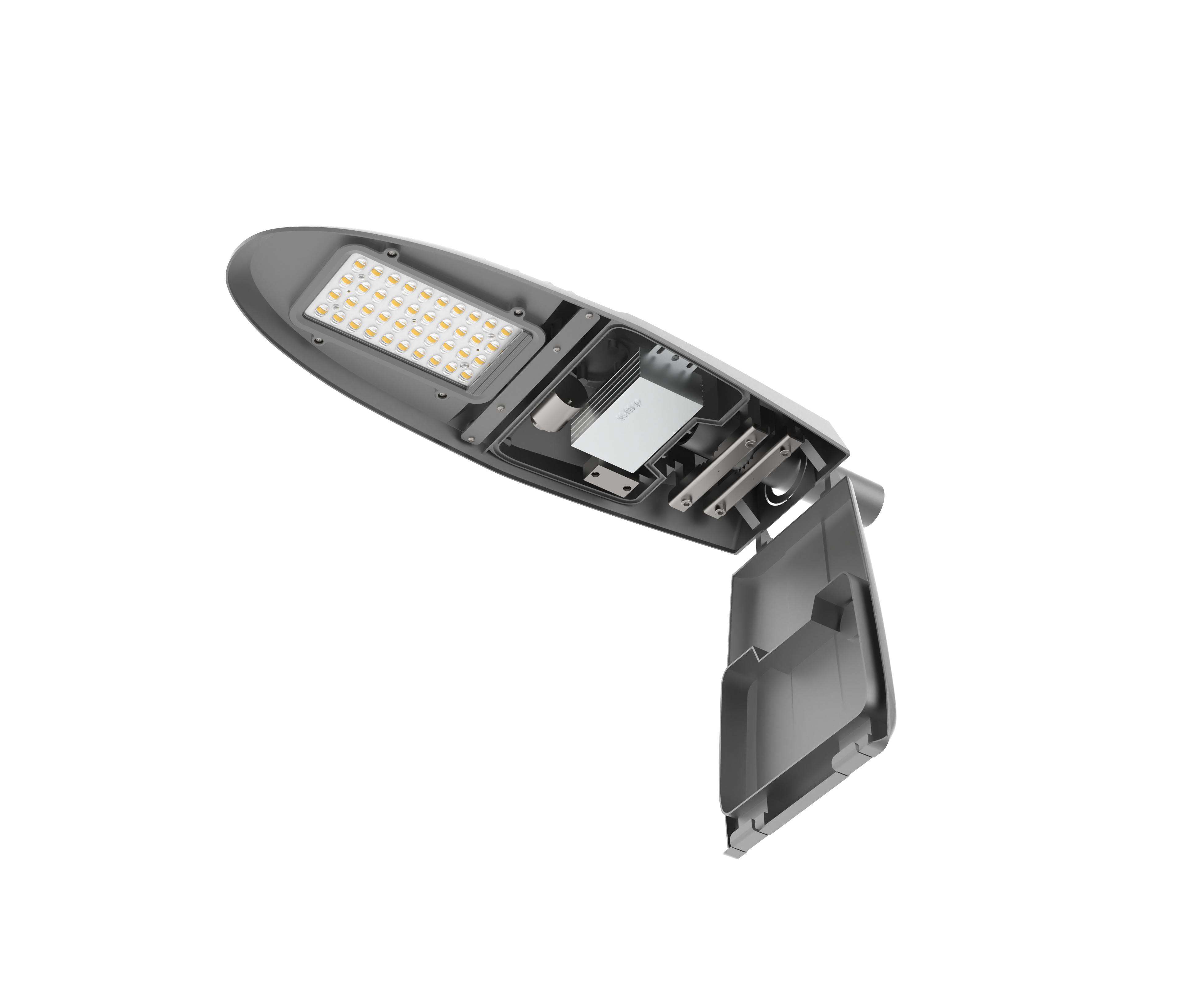

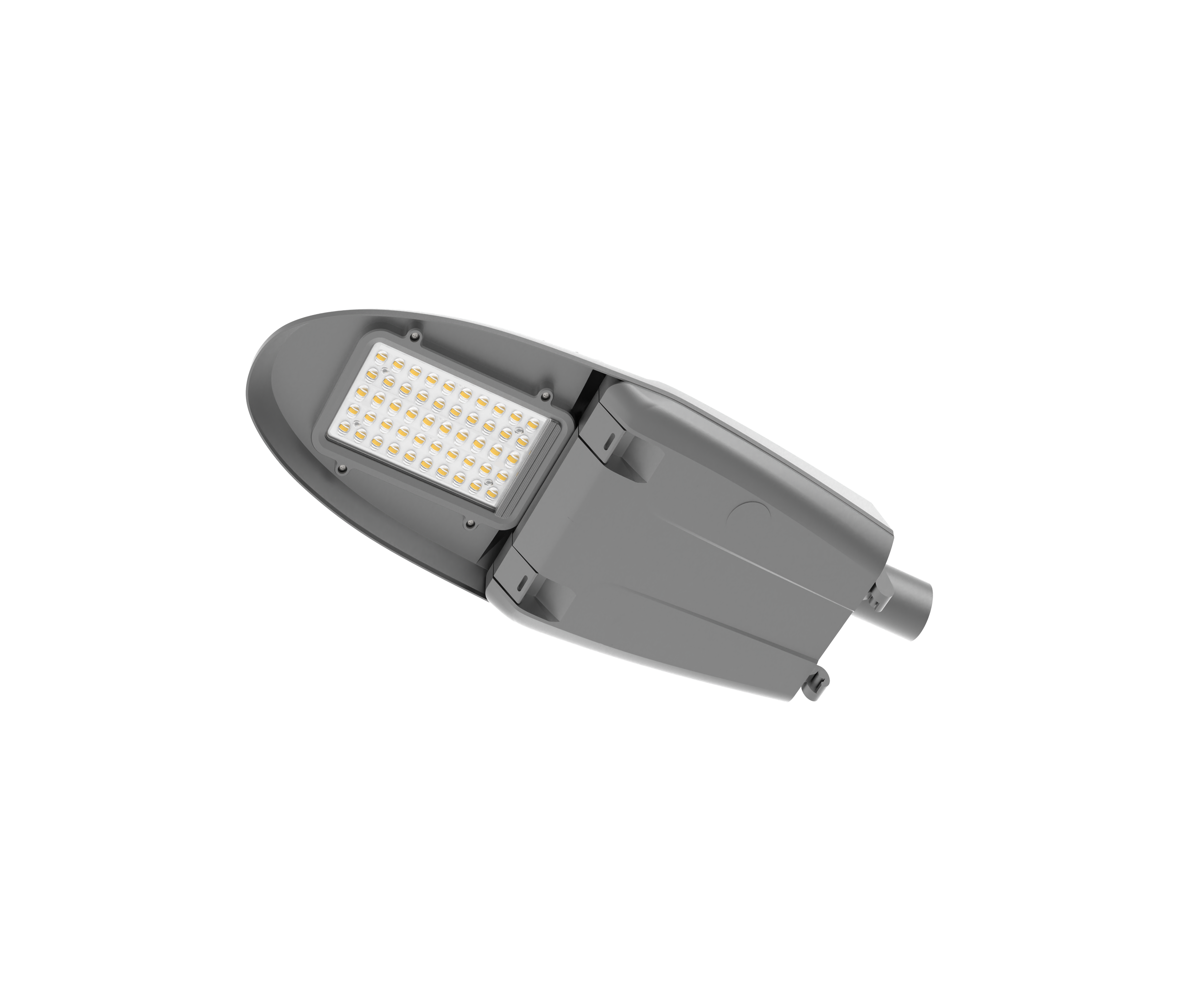

DarkSky compliant cobra-style road light with RGO＜1% — minimal light pollution for environmentally sensitive areas. IK10 rated with 10-year warranty, the most durable and longest-warrantied fixture in the road light lineup. Blue content＜1% for wildlife-friendly installations.
| Model | Wattage | Lumens | Surge | Input Voltage |
|---|---|---|---|---|
| RDC01/70W | 70W | 10,500 lm | 10KV (Opt. 20KV) | 120-277 / 120-347 / 277-480V |
| RDC01/150W | 150W | 22,500 lm | 10KV (Opt. 20KV) | 120-277 / 120-347 / 277-480V |
| Parameter | Value |
|---|---|
| CRI | ＞70 (Default), ＞80 |
| IP Rating | IP66 (Suitable for Wet Location) |
| IK Rating | IK10 |
| Smart Control | 0-10V / DALI / PWM / DMX |
| Color Temperature | 2700K / 3000K / 4000K / 5000K |
| Beam Angle | Type II / III / IV / V |
| Surge Protection | 10KV (Optional 20KV) |
| Photocell | NEMA Photocell |
| Mounting | Pole |
| Operating Temp | -40℃ ~ 70℃ |
| Dimension (70W) | 595×225×110mm (23.43"×8.86"×4.33") |
| Dimension (150W) | 595×280×110mm (23.43"×11"×4.33") |
| Weight (70W) | 3 kg / 6.61 lb |
| Weight (150W) | 5.5 kg / 12.13 lb |
| Warranty | 10 Years |
| Lifetime | L70B50: 100,000 hrs @ 25℃ |
Environmentally Sensitive Areas · Coastal Roads · National Parks · Wildlife Reserves
