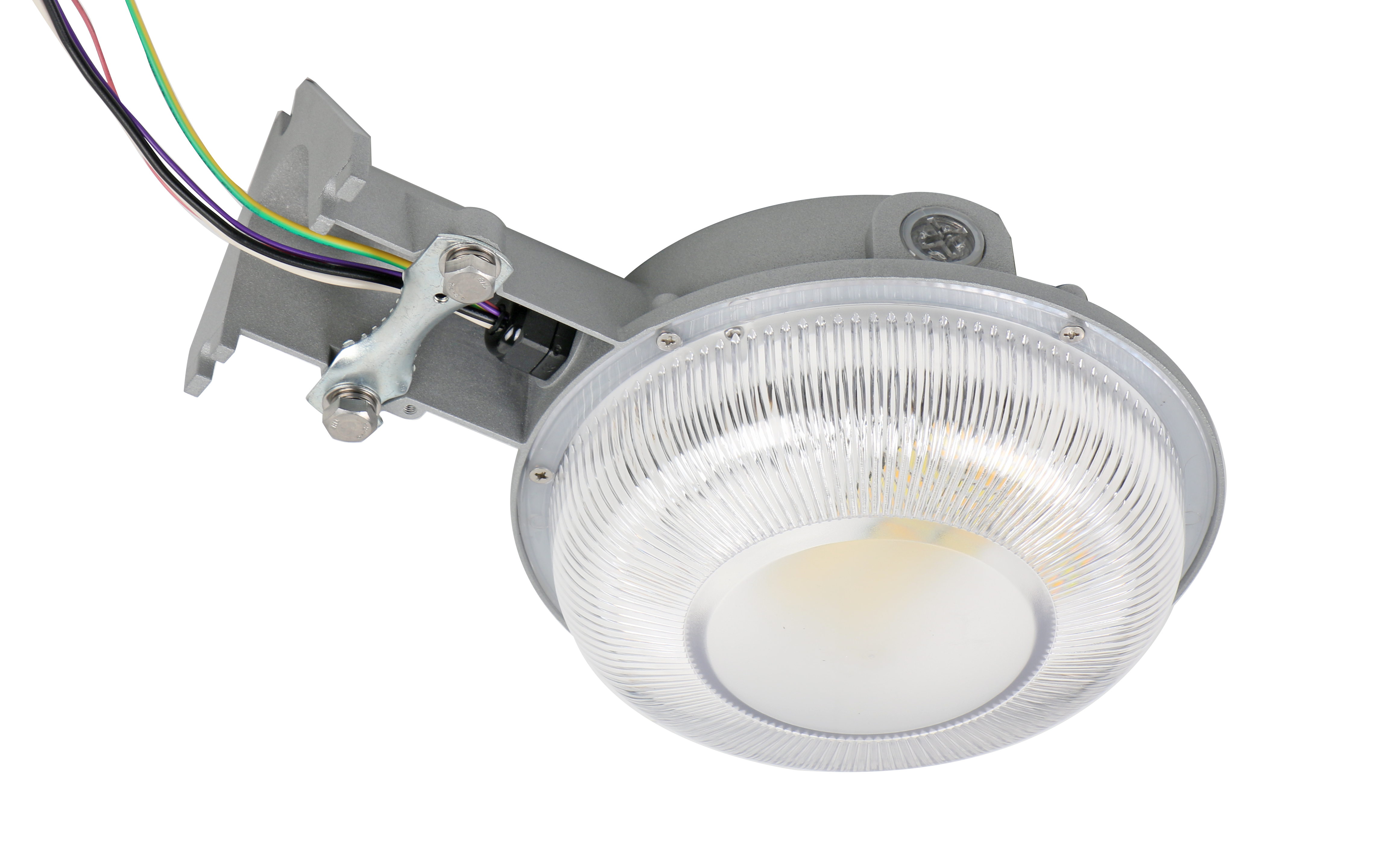

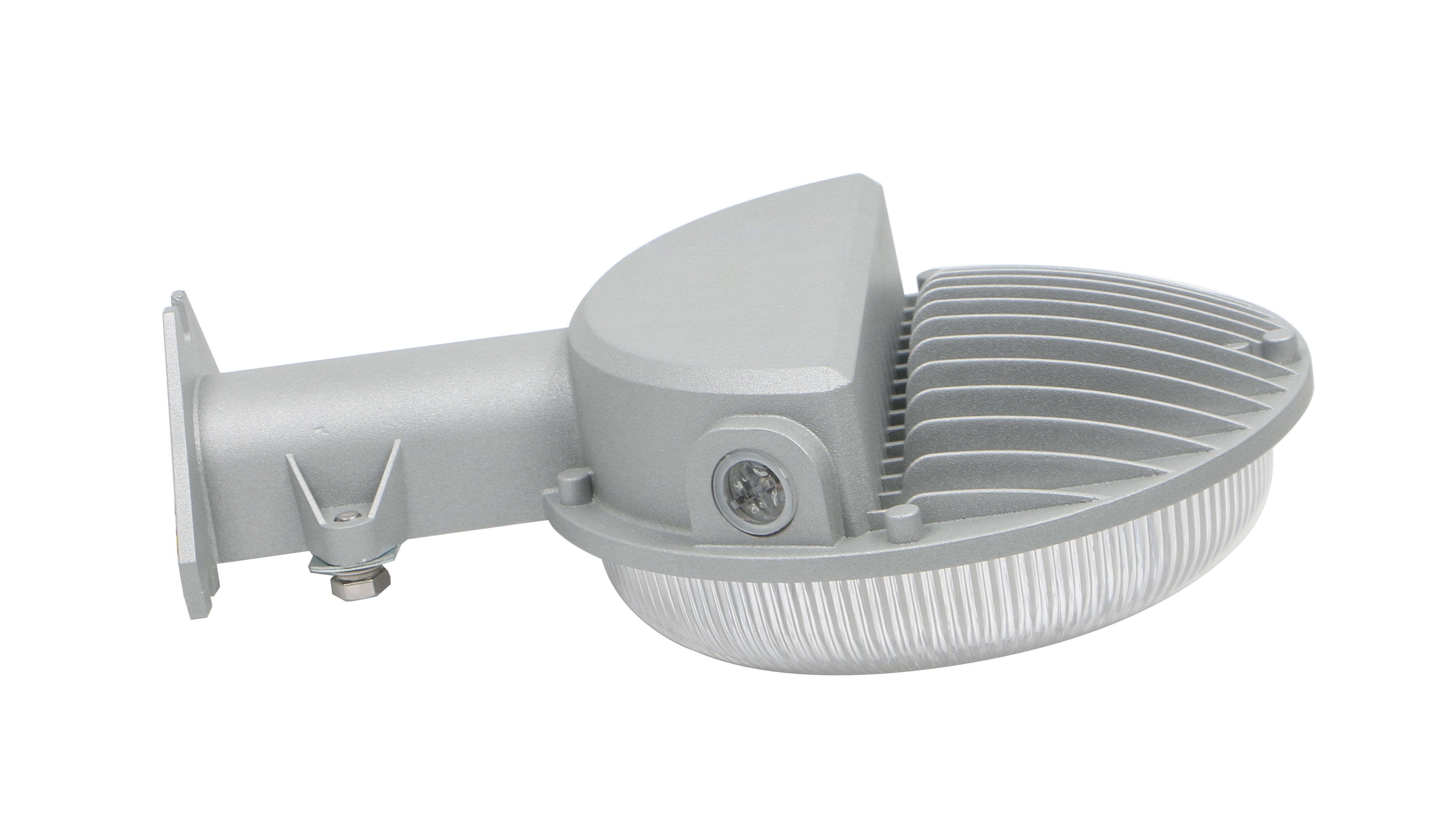

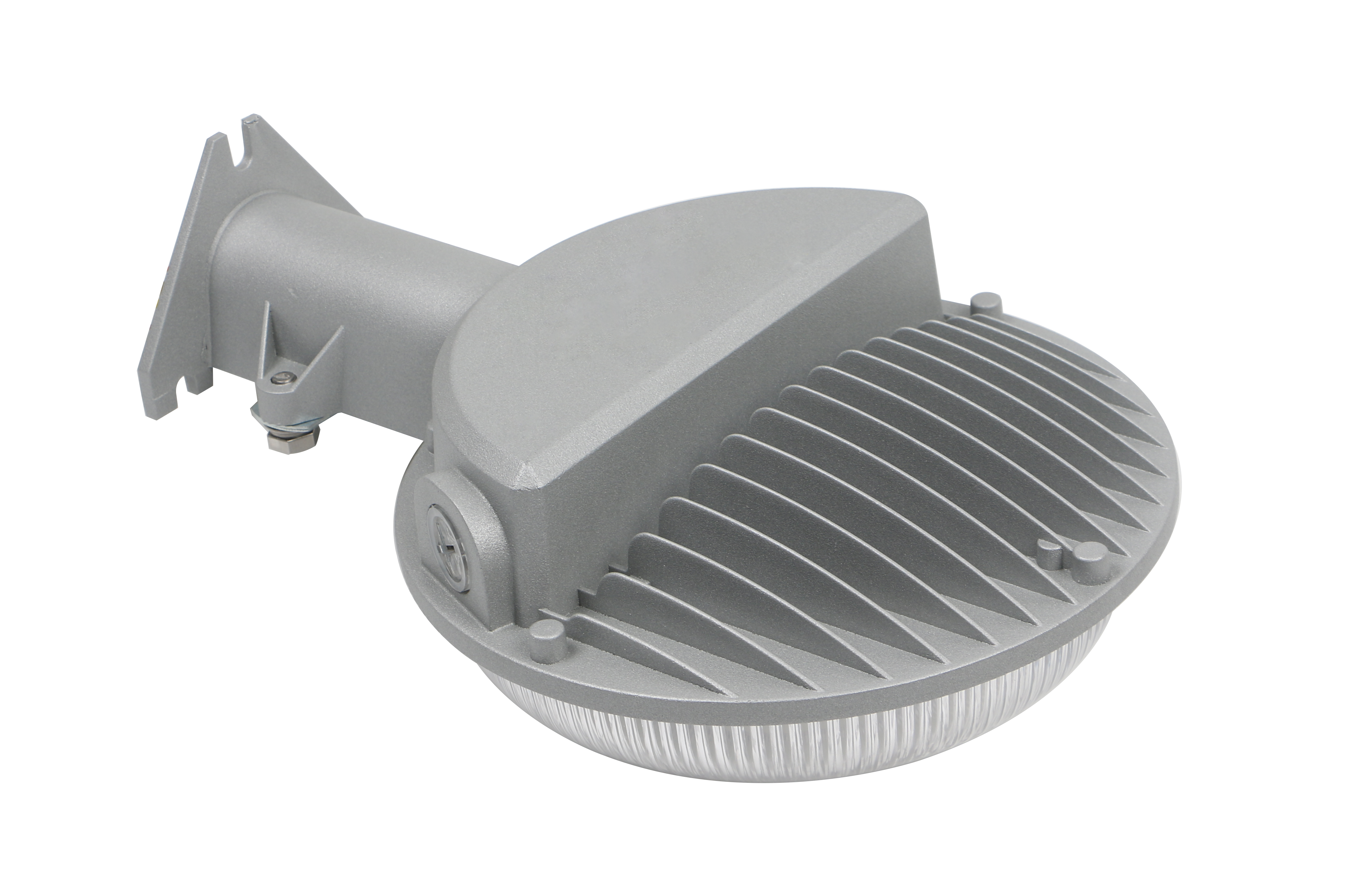

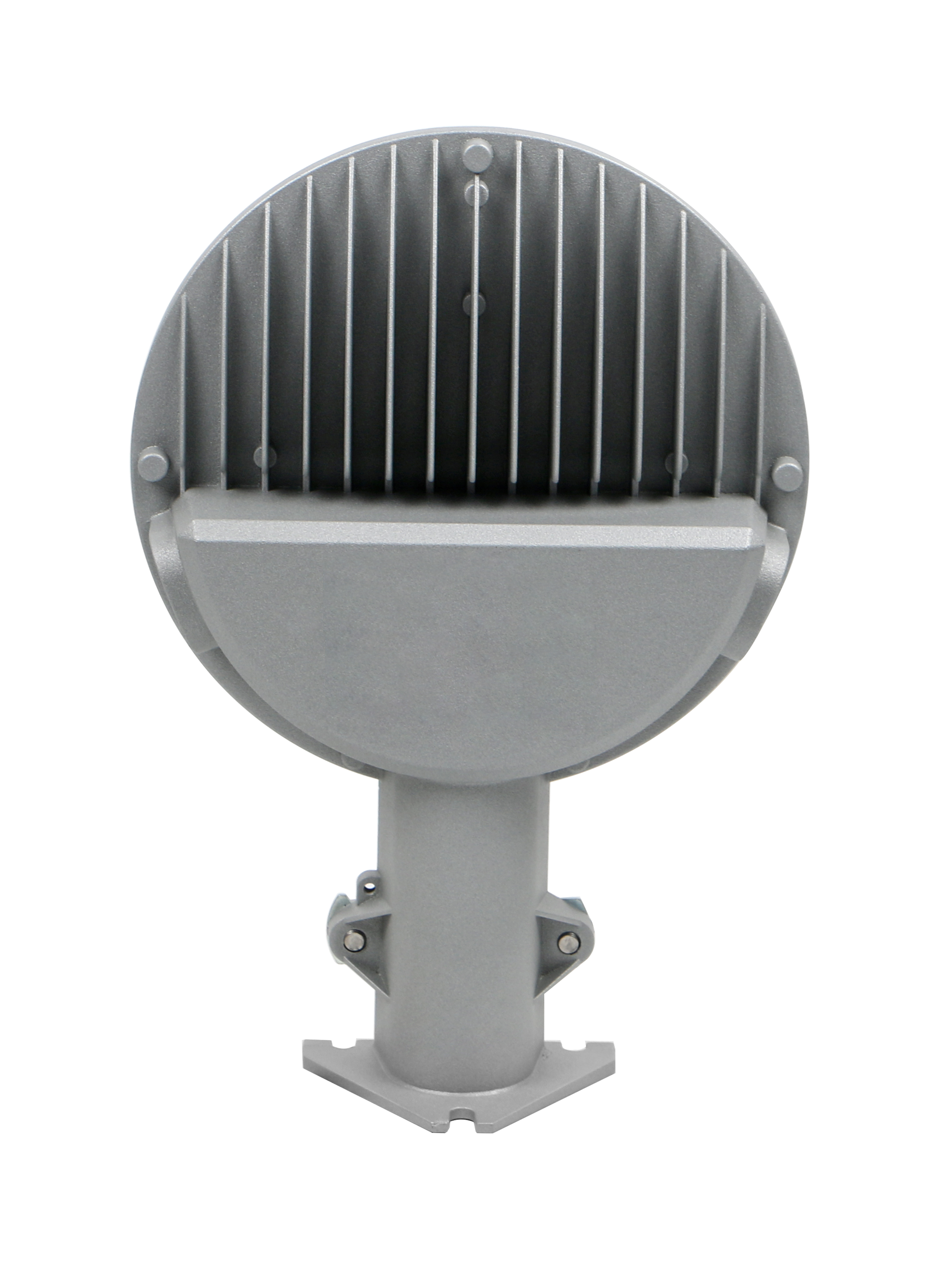

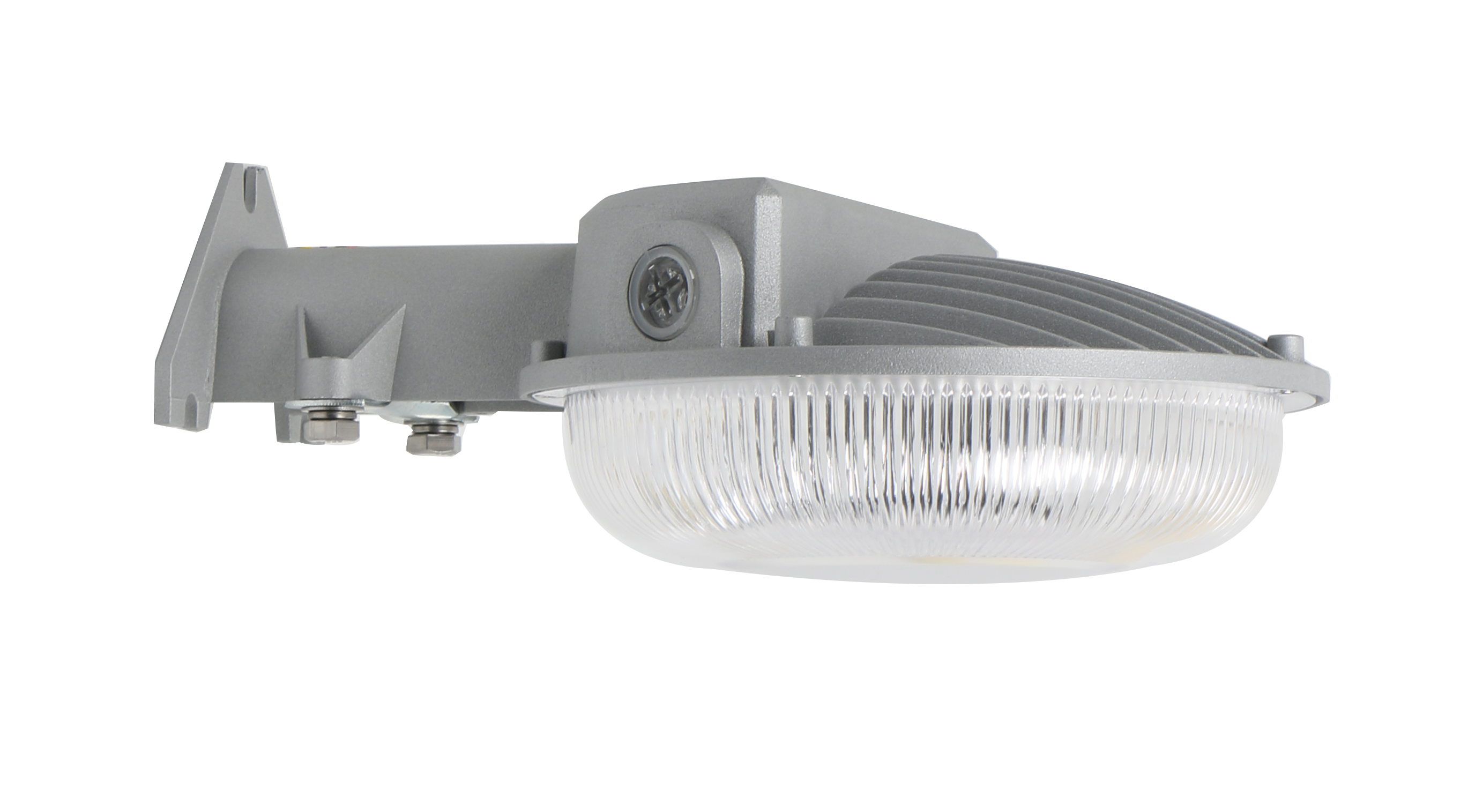

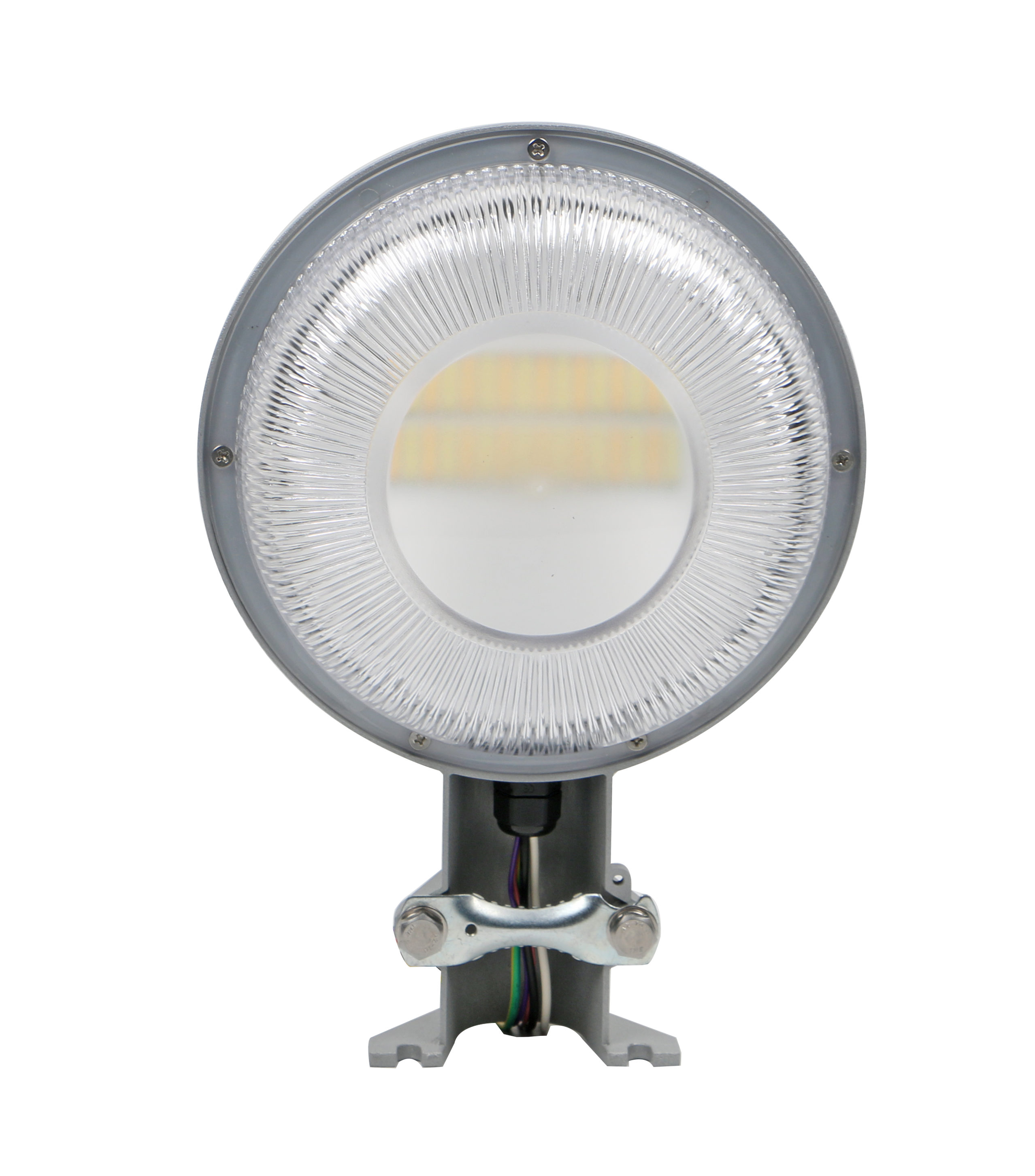

DRAGONFLY I - Compact LED Security Light with Photocell

No.BLR01

DRAGONFLY I is a compact LED security light (25W) with 90 lm/W efficacy. IP65/IK08 rated, 0-10V dimming, 100° flood beam, 2KV surge, 100-277V input. Built-in photocell for automatic dusk-to-dawn operation. Available in Black, White, Bronze. 5-year warranty, 100,000-hour lifetime.

Download

View all downloads

DRAGONFLY I — Compact LED Security Light with Photocell

Compact and lightweight security light with built-in photocell for automatic operation. 25W with 100° flood coverage — ideal for residential and small commercial security applications.

Key Features

Built-in Photocell — Automatic dusk-to-dawn operation
Compact Design — 192×326×126mm, lightweight at 2.5 kg
100° Flood Beam — Wide coverage for security lighting
100-277V — Wide input voltage range
3 Finishes — Black, White, Bronze
Easy Install — Lightweight, wall or eave mount

Specifications

Parameter	Value
CRI	＞80
IP Rating	IP65
IK Rating	IK08
Dimming	0-10V
Wattage	25W
Efficacy	90 lm/W
Lumens	2,250 lm
Color Temperature	3000K / 4000K / 5000K
Colors	Black / White / Bronze
Beam Angle	100°
Surge Protection	＞2KV
Sensor	Photocell
Input Voltage	100-277V
Operating Temp	-40℃ ~ 50℃
Dimension	192×326×126mm
Weight	2.5 kg / 5.51 lb
Warranty	5 Years
Lifetime	L70B50: 100,000 hrs @ 25℃
