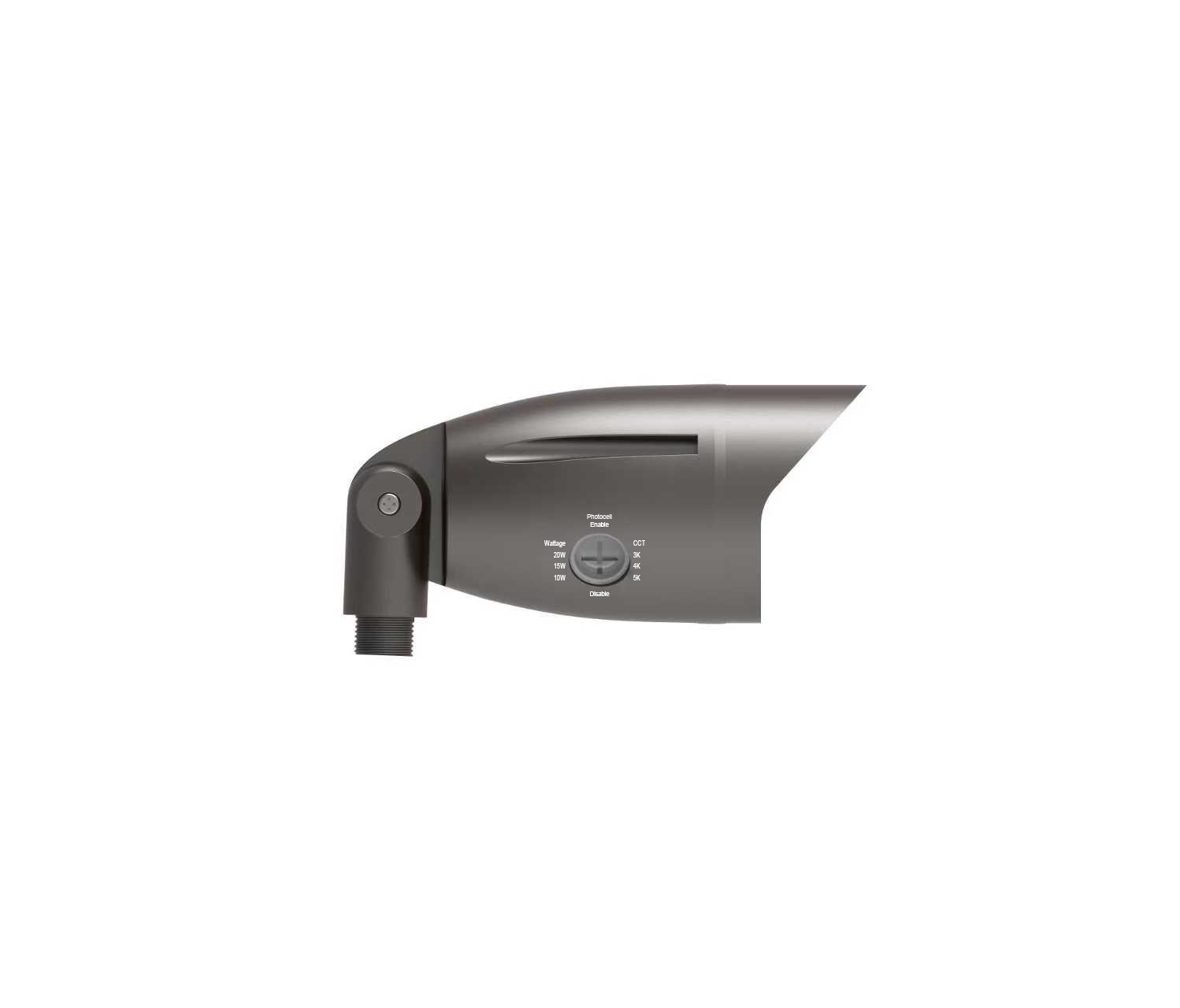

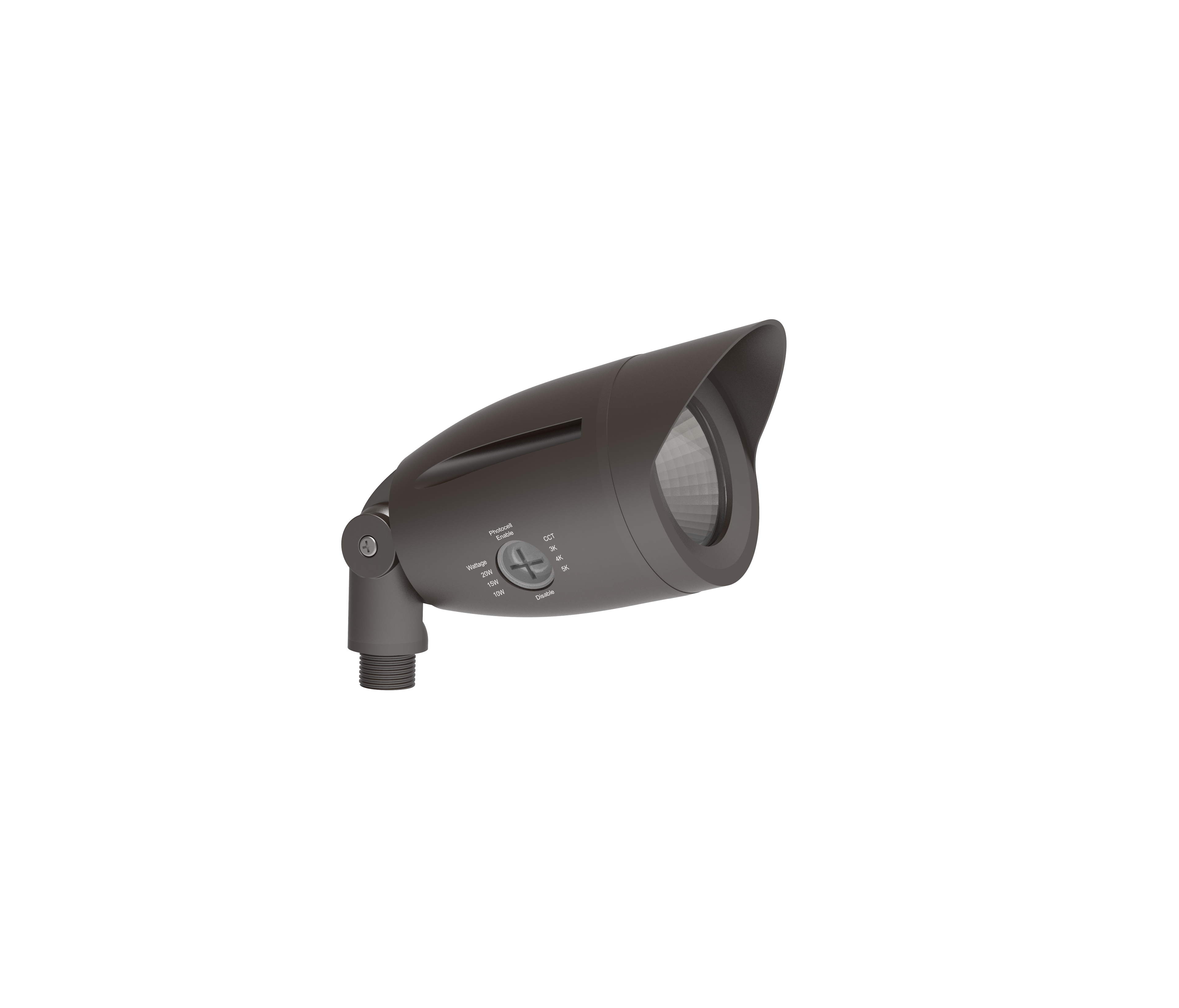

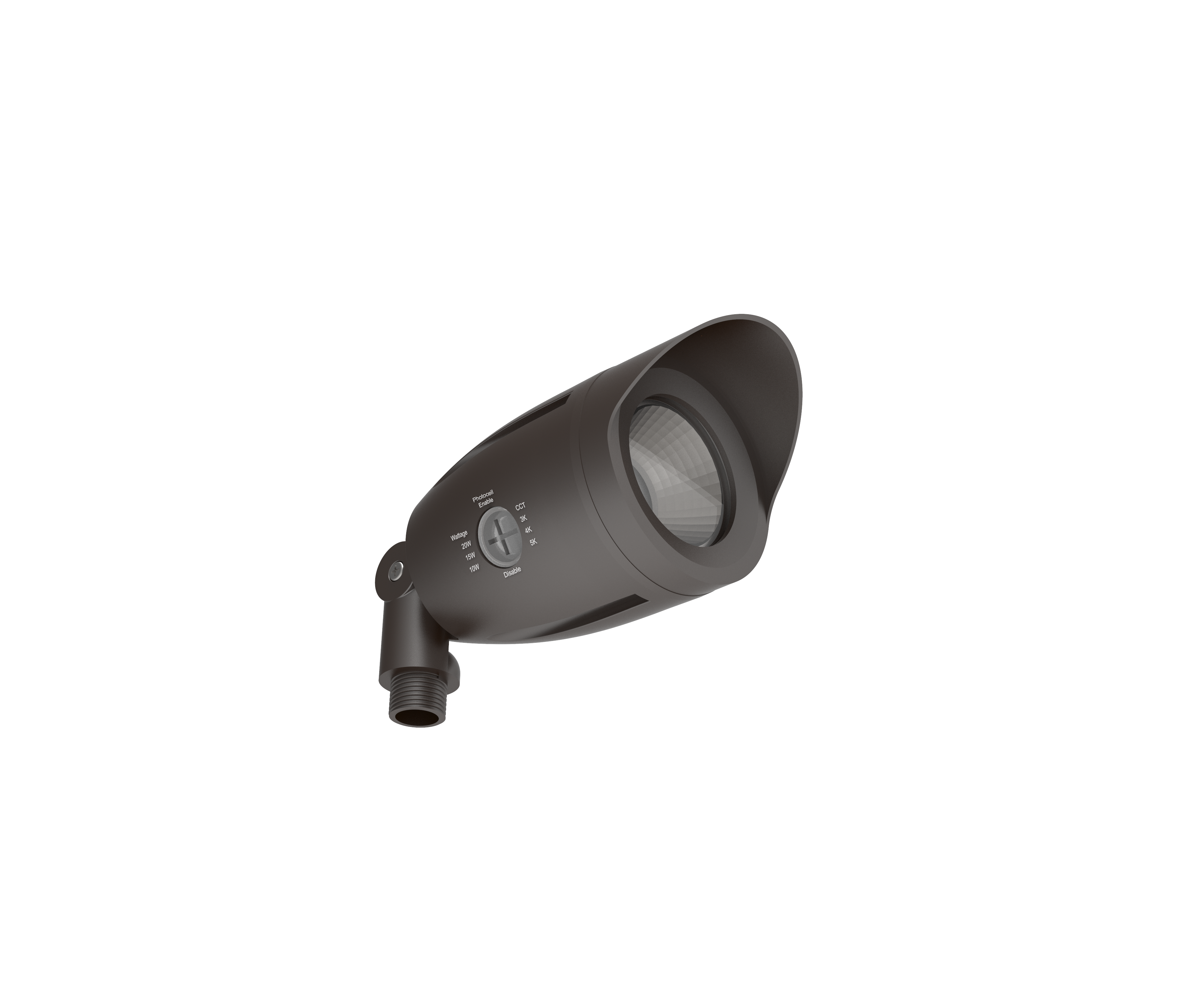

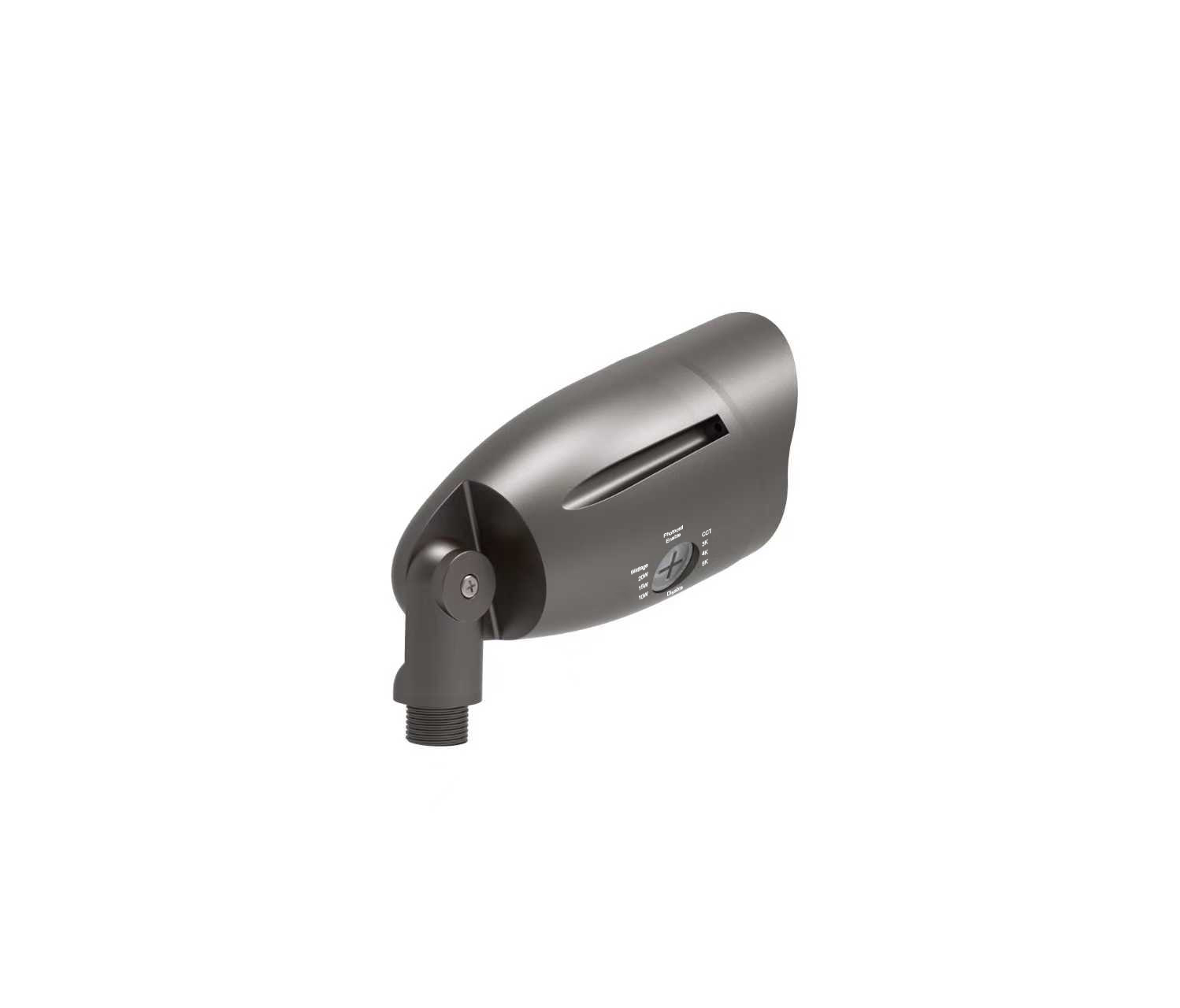

FDB02 - Adjustable LED Landscape Spot Light

No.FDB02

FDB02 is an adjustable LED landscape spot light (10/15/20W selectable) with 105-115 lm/W efficacy. IP65 rated, 0-10V dimming, NEMA 5X5 (35°) beam, 2KV surge, 120-277V input. Built-in photocell, ground or wall mounting. Available in Black, White, Bronze. 5-year warranty, 100,000-hour lifetime.

Download

View all downloads

FDB02 — Adjustable LED Landscape Spot Light

Compact landscape spot light with selectable wattage and NEMA 5X5 wide beam. Ground or wall mount options make it versatile for both landscape accent and facade lighting. Built-in photocell for automatic dusk-to-dawn operation.

Model	Wattage	Efficacy	Lumens @ 4000K	Surge	Input Voltage
FDB02/20/SW	ADJ 10/15/20W	105-115 lm/W	2,300 / 1,725 / 1,150 lm	2KV	120-277V

Key Features

Selectable Wattage — 10/15/20W in one fixture
NEMA 5X5 Beam — Wide 35° distribution for landscape coverage
Dual Mount — Ground or wall mounting options
Built-in Photocell — Automatic dusk-to-dawn operation
3 Finishes — Black, White, Bronze
Compact Size — 185×86×97mm, unobtrusive installation

Specifications

Parameter	Value
CRI	80
IP Rating	IP65
Dimming	0-10V
Color Temperature	3000K / 4000K / 5000K
Colors	Black / White / Bronze
Beam Angle	NEMA 5X5 (35°)
Surge Protection	2KV
Sensor	Built-in Photocell
Mounting	Ground / Wall
Operating Temp	-40℃ ~ 50℃
Dimension	185×86×97mm (7.28"×3.39"×3.82")
Weight	1.86 kg / 4.1 lb
Warranty	5 Years
Lifetime	L70B50: 100,000 hrs @ 25℃
