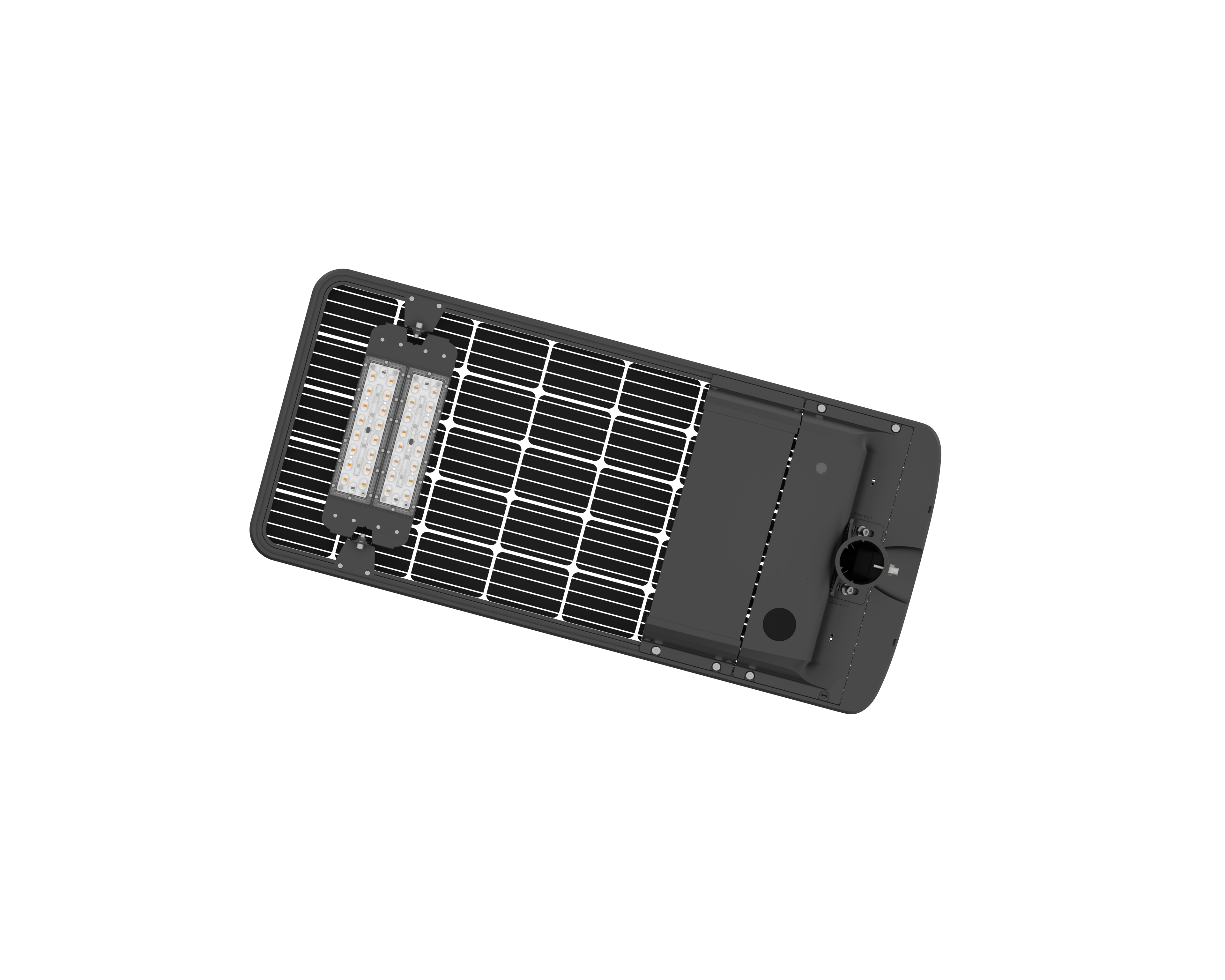

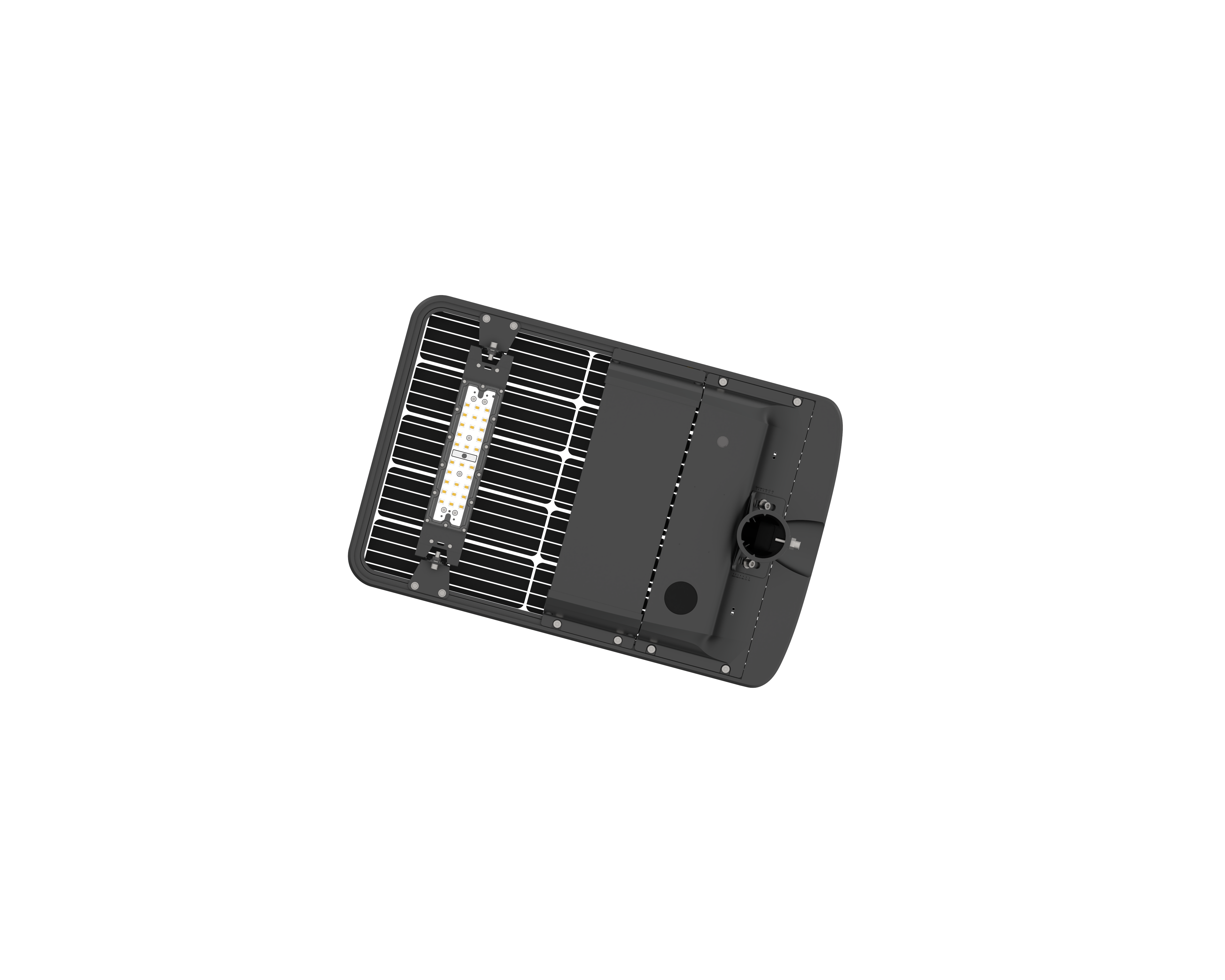

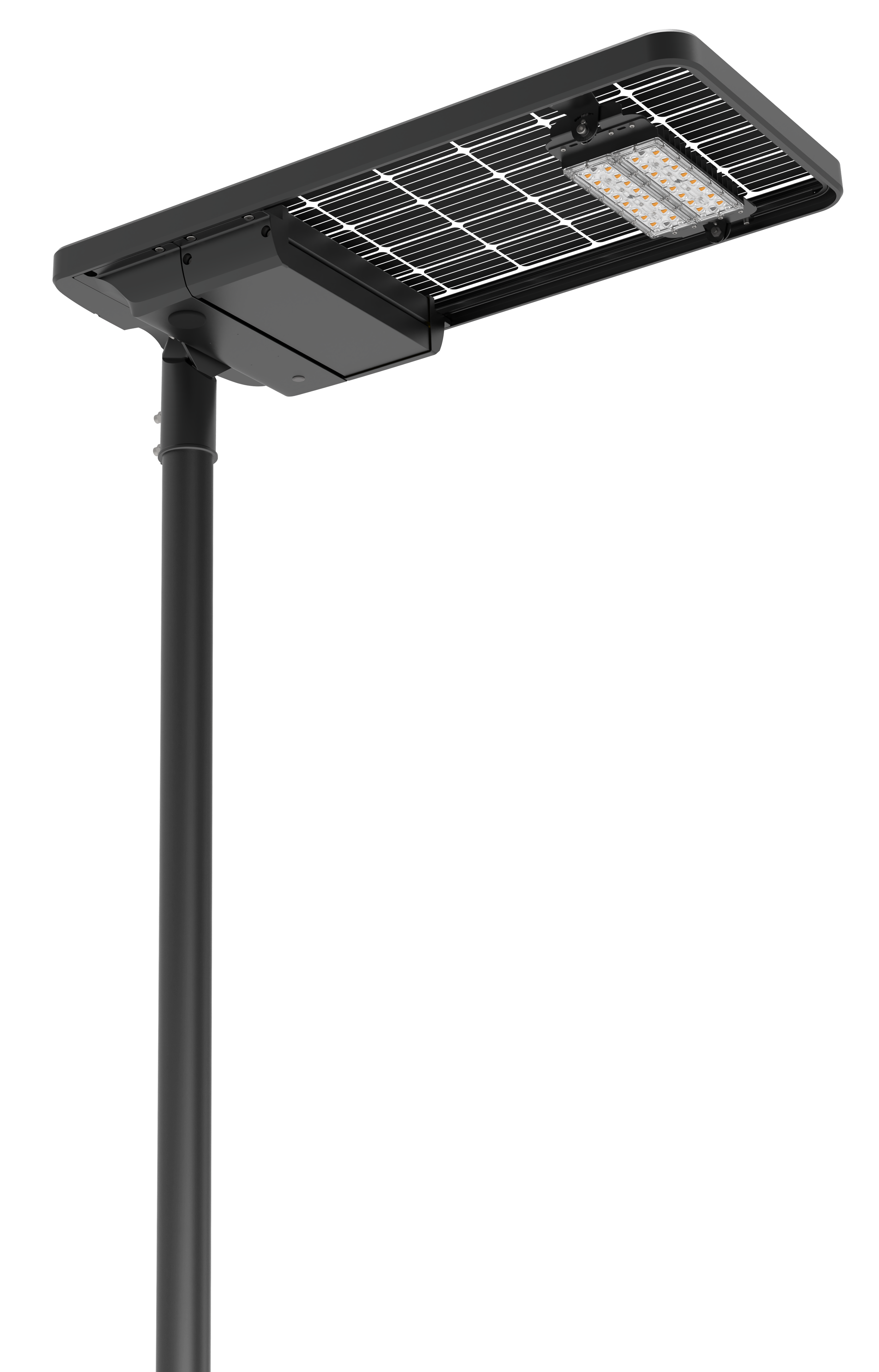

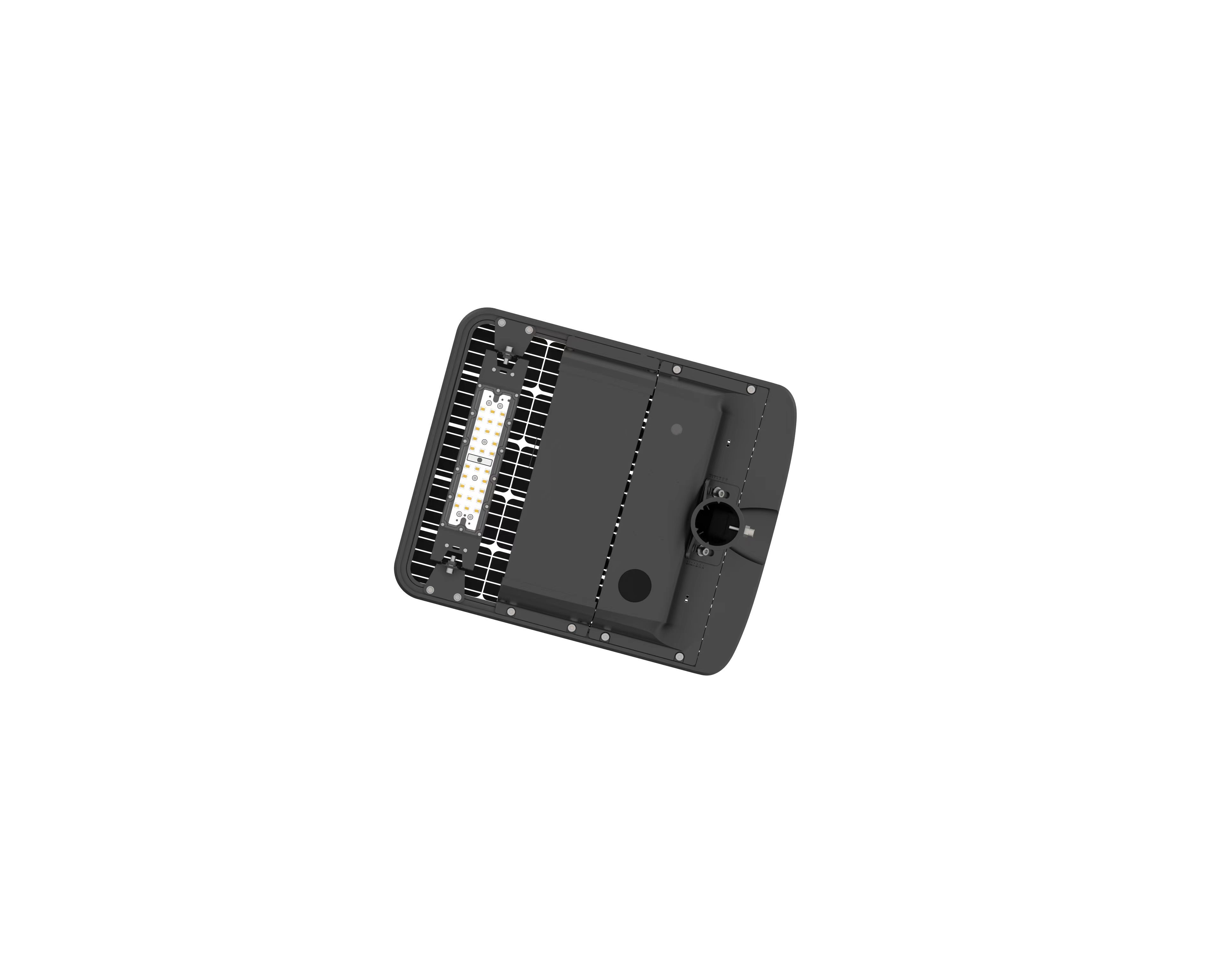

Die-cast aluminum road light with IK09 impact resistance and multiple mounting options (side-entry, post-top, on mast). Selectable beam with Long/Medium/Short throw options for precise road lighting design.
| Wattage | Lumens | Dimension |
|---|---|---|
| 30-60W | 4,800-9,600 lm | 560×275×105mm |
| 80-120W | 12,800-19,200 lm | 610×275×105mm |
| 130-200W | 20,800-32,000 lm | 690×330×105mm |
| Parameter | Value |
|---|---|
| CRI | ＞70 (Default), ＞80 |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Dimming | 0-10V / DALI / D4i |
| Color Temperature | 3000K / 4000K / 5000K |
| Beam Angle | Type I/II/III, Long/Medium/Short |
| Surge Protection | 10KV (Optional 20KV) |
| Mounting | Side-entry / Post-top / On Mast |
| Input Voltage | 100-277V |
| Operating Temp | -40℃ ~ 50℃ |
| Warranty | 5 Years |
| Lifetime | L70B50: 100,000 hrs @ 25℃ |
Municipal Roads · Residential Streets · Bike Paths · Pedestrian Areas
