NESS I

No.ALP01

NESS I is a selectable wattage LED area light (35W/73W) designed for parking structures and commercial sites. IP65/IK08 rated with 0-10V dimming, 3 CCT options (3000K/4000K/5000K), and surge protection up to 10KV. 120-277V input, UL/ETL listed, 5-year warranty, 100,000-hour lifetime. Available in Black, White, and Bronze with optional Photocell or Motion Sensor. Pole mount installation.

Download

View all downloads

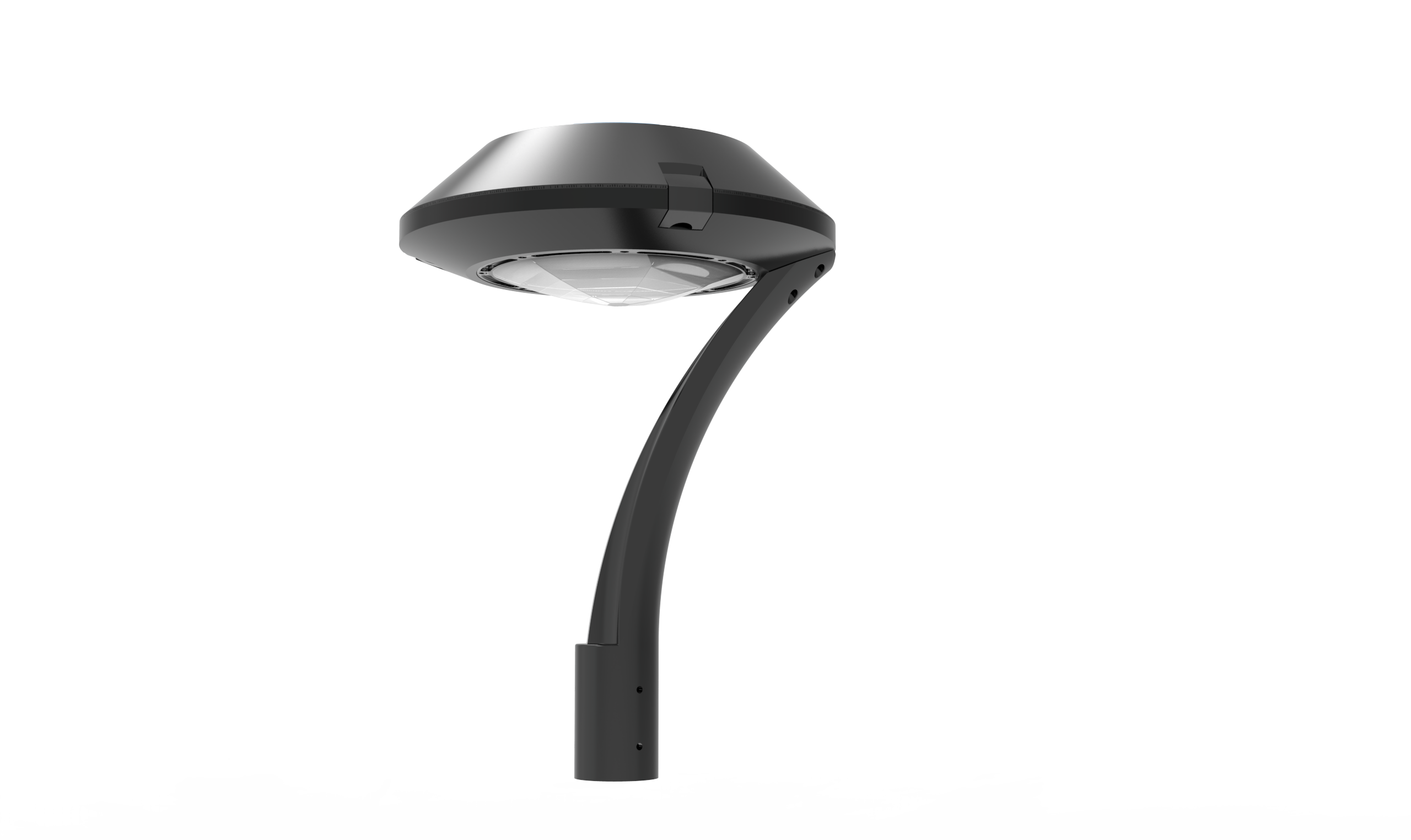

NESS I — Selectable Wattage LED Area Light

Versatile pole-mounted area light built for parking garages, commercial sites, and retail environments. Two selectable wattage options in one fixture — reduce SKU complexity while covering more project requirements.

Model	Wattage	Efficacy	Lumens	Surge Protection	Input Voltage
LED-FX16PST35	35W	120 lm/W	4,200 lm	＞6KV	120-277V
LED-FX16PST73	73W	120 lm/W	8,760 lm	＞10KV	120-277V

Key Features

Selectable Wattage — 35W or 73W in one fixture, fewer SKUs to manage
3 CCT Options — 3000K / 4000K / 5000K selectable on-site
Surge Protection — Up to 10KV (73W model), reliable in storm-prone areas
0-10V Dimming — Compatible with standard dimming controls for energy savings
Sensor Ready — Optional Photocell or Motion Sensor for automatic operation
3 Finishes — Black, White, Bronze to match project aesthetics

Specifications

Parameter	Value
CRI	＞80
IP Rating	IP65
IK Rating	IK08
Dimming	0-10V
Color Temperature	3000K / 4000K / 5000K
Mounting	Pole
Operating Temp	-40℃ ~ 60℃
Dimension	Φ400×570mm (Φ15.75"×22.44")
Weight	6.3 kg / 13.89 lb
Certification	UL / ETL
Warranty	5 Years
Lifetime	L70B50: 100,000 hrs @ 25℃

Applications

Parking Garage · Commercial Facilities · Retail Centers · Site Lighting
