NESS II - Selectable Wattage LED Area Light

No.ALP02

NESS II is a selectable wattage LED post top light (20-34W / 60-100W) with 130-150 lm/W efficacy. IP65/IK08 rated, 0-10V dimming, 3 CCT options (3000K/4000K/5000K), 100-277V input. Available in Black, White, and Bronze with optional Photocell or Motion Sensor. Pole mount installation. UL/ETL certified, 5-year warranty, 100,000-hour lifetime.

Download

View all downloads

NESS II — Selectable Wattage LED Post Top

Compact pole-mounted post top with two selectable wattage ranges. Ideal for parking areas, commercial plazas, and site lighting where flexible output is needed from a single fixture.

Model	Wattage	Efficacy	Lumens	Surge Protection	Input Voltage
LED-FXPST34SW	ADJ 20/28/34W	150 lm/W	3,000 / 4,200 / 5,100 lm	＞4KV	100-277V
LED-FXPST100SW	ADJ 60/80/100W	130 lm/W	7,800 / 10,400 / 13,000 lm	＞4KV	100-277V

Key Features

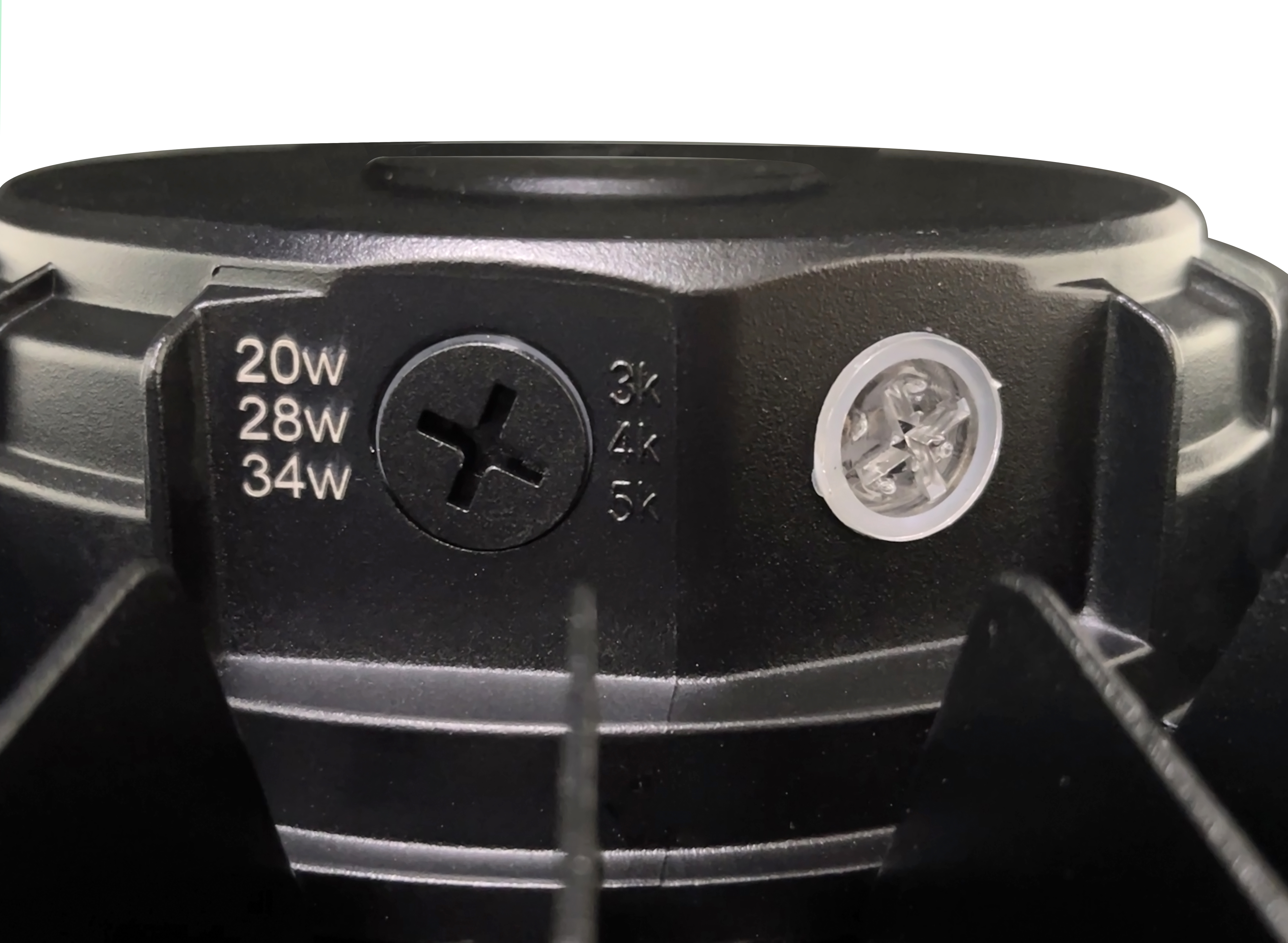

Selectable Wattage — 20/28/34W or 60/80/100W in one fixture
3 CCT Options — 3000K / 4000K / 5000K selectable on-site
High Efficacy — Up to 150 lm/W in the low-wattage model
0-10V Dimming — Compatible with standard dimming controls
Sensor Ready — Optional Photocell or Motion Sensor
3 Finishes — Black, White, Bronze

Specifications

Parameter	Value
CRI	＞80
IP Rating	IP65
IK Rating	IK08
Dimming	0-10V
Color Temperature	3000K / 4000K / 5000K
Colors	Black / White / Bronze
Mounting	Pole
Operating Temp	-40℃ ~ 50℃
Dimension	Φ380×550mm (Φ14.96"×21.65")
Weight	4 kg / 8.82 lb
Warranty	5 Years
Lifetime	L70B50: 100,000 hrs @ 25℃

Applications

Parking Areas · Commercial Plazas · Site Lighting · Pedestrian Walkways
