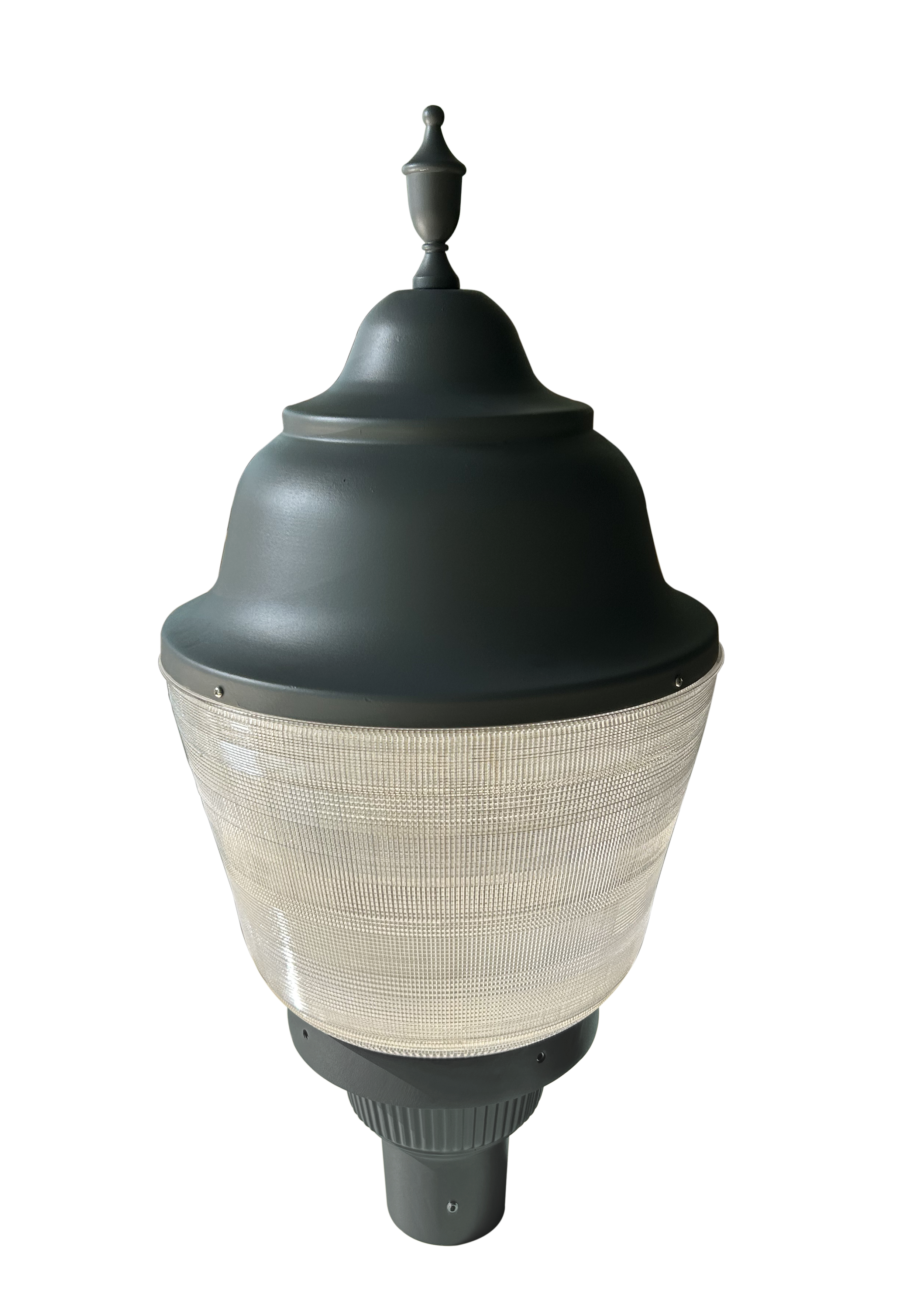

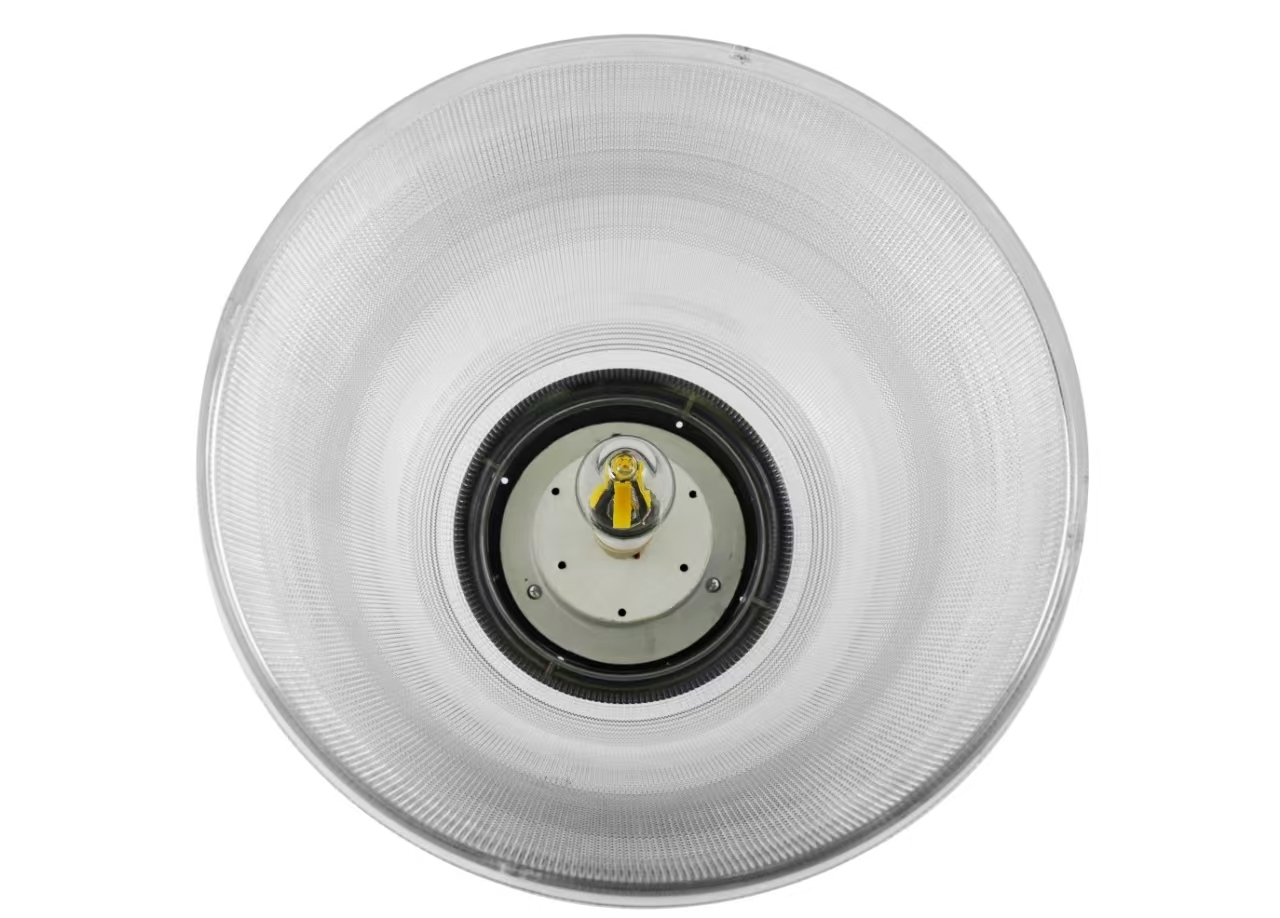

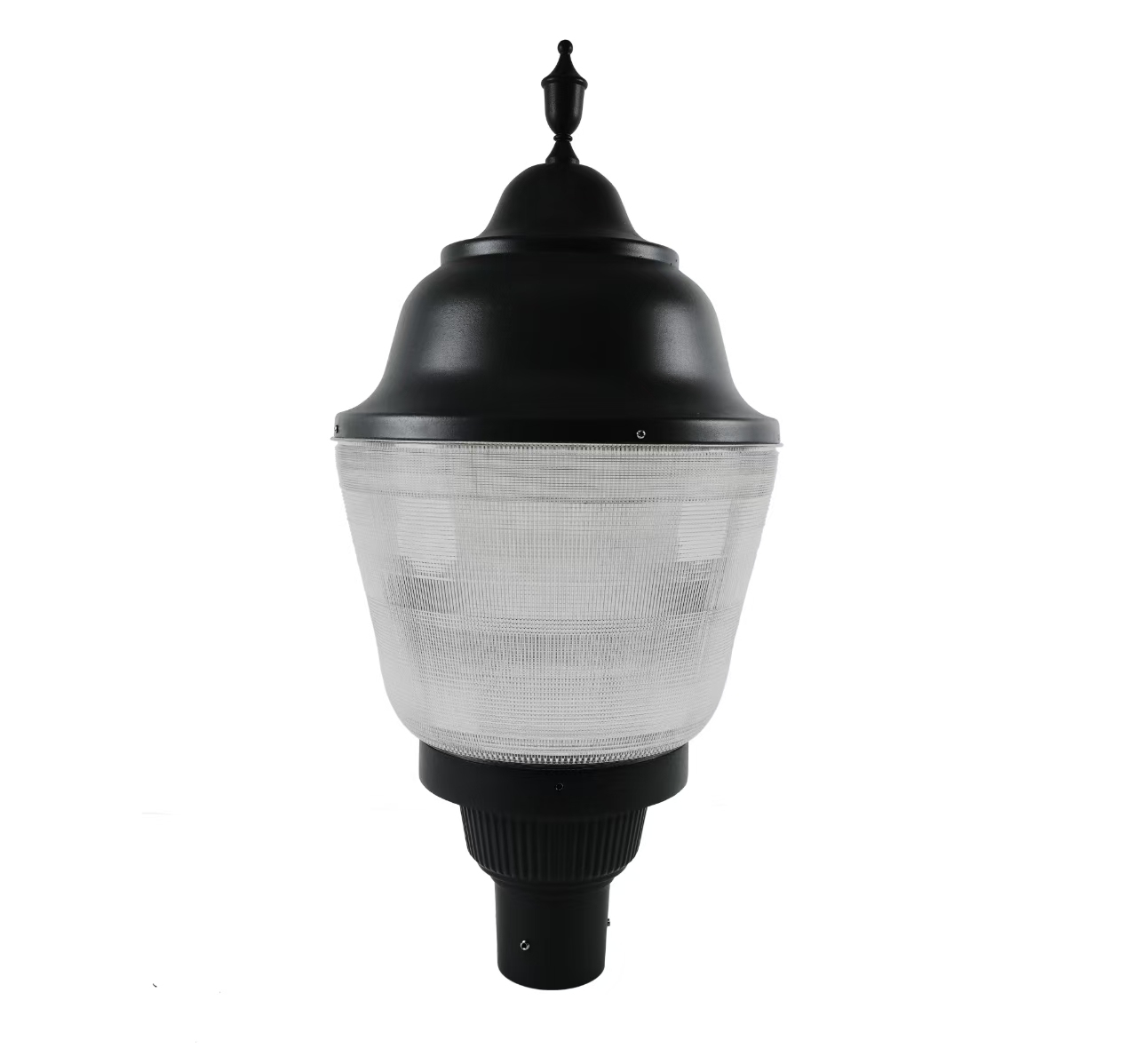

Premium post top with Zhaga smart node interface, IK10 housing, and IP66 wet location rating. Designed for smart city infrastructure and high-end commercial installations requiring advanced control integration.
| Model | Wattage | Efficacy | Lumens | Surge Protection | Input Voltage |
|---|---|---|---|---|---|
| ALP09/60/SW | ADJ 30/45/60W | 110-125 lm/W | 3,300 / 4,950 / 6,600 lm | 10KV (Opt. 20KV) | 120-277 / 120-347V |
| ALP09/120/SW | ADJ 80/100/120W | 110-125 lm/W | 8,800 / 11,000 / 13,200 lm | 10KV (Opt. 20KV) | 120-277 / 120-347V |
| Parameter | Value |
|---|---|
| CRI | 70 |
| IP Rating | IP66 (Suitable for Wet Location) |
| IK Rating | IK10 |
| Smart Control | 0-10V / ON-OFF Photocell / DALI / PIR / Zhaga |
| Color Temperature | 3000K / 4000K / 5000K |
| Colors | Black / White / Bronze / Grey |
| Beam Angle | Selectable Type II / III / V |
| Surge Protection | 10KV (Optional 20KV) |
| Operating Temp | -40℃ ~ 50℃ |
| Dimension | Φ530×608mm (Φ20.87"×23.94") |
| Weight | 11.5 kg / 25.35 lb |
| Warranty | 5 Years (Optional 7 Years) |
| Lifetime | L90B10: 100,000 hrs @ 25℃ |
Smart City Infrastructure · Municipal Lighting · High-End Commercial · Public Spaces
