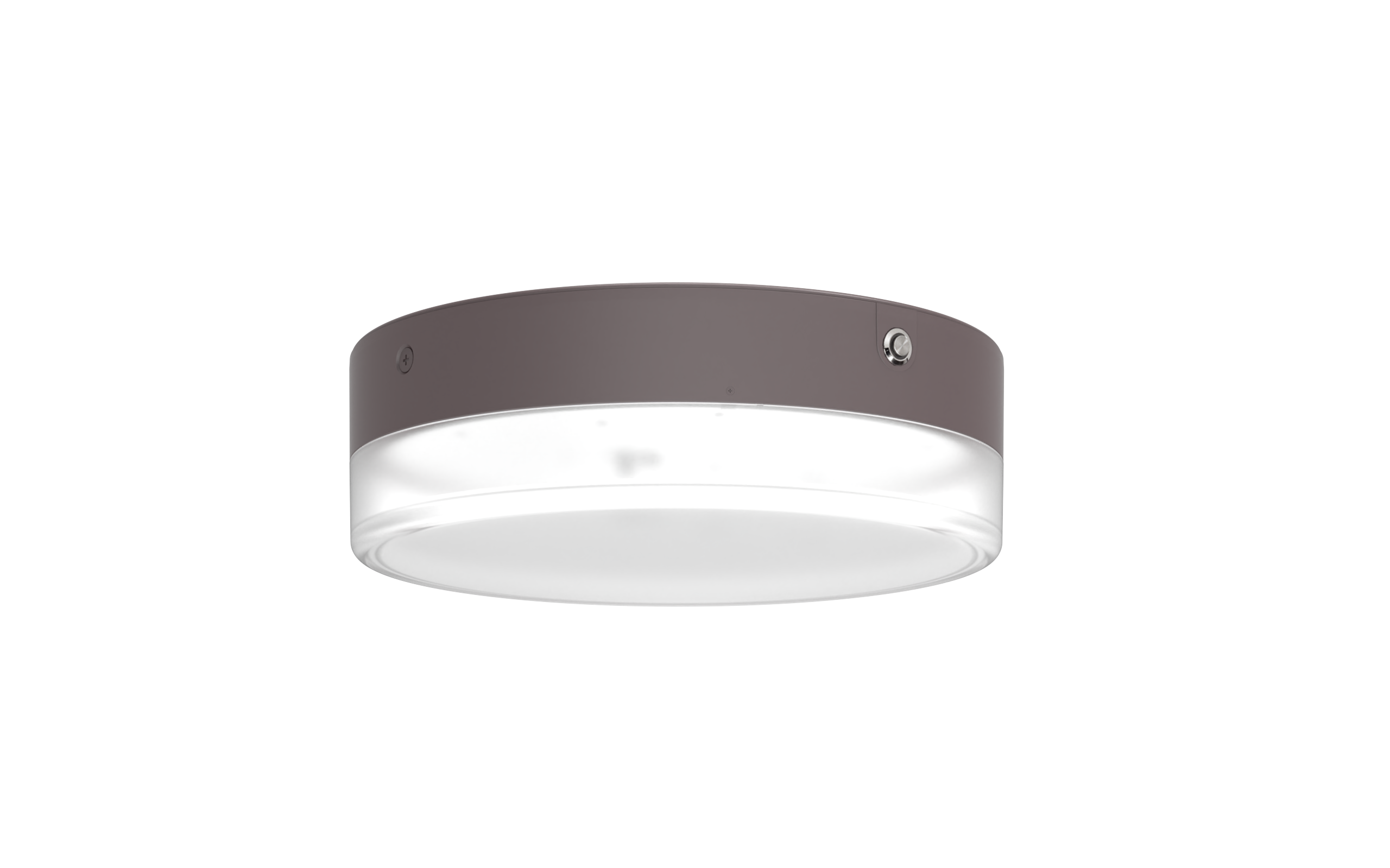

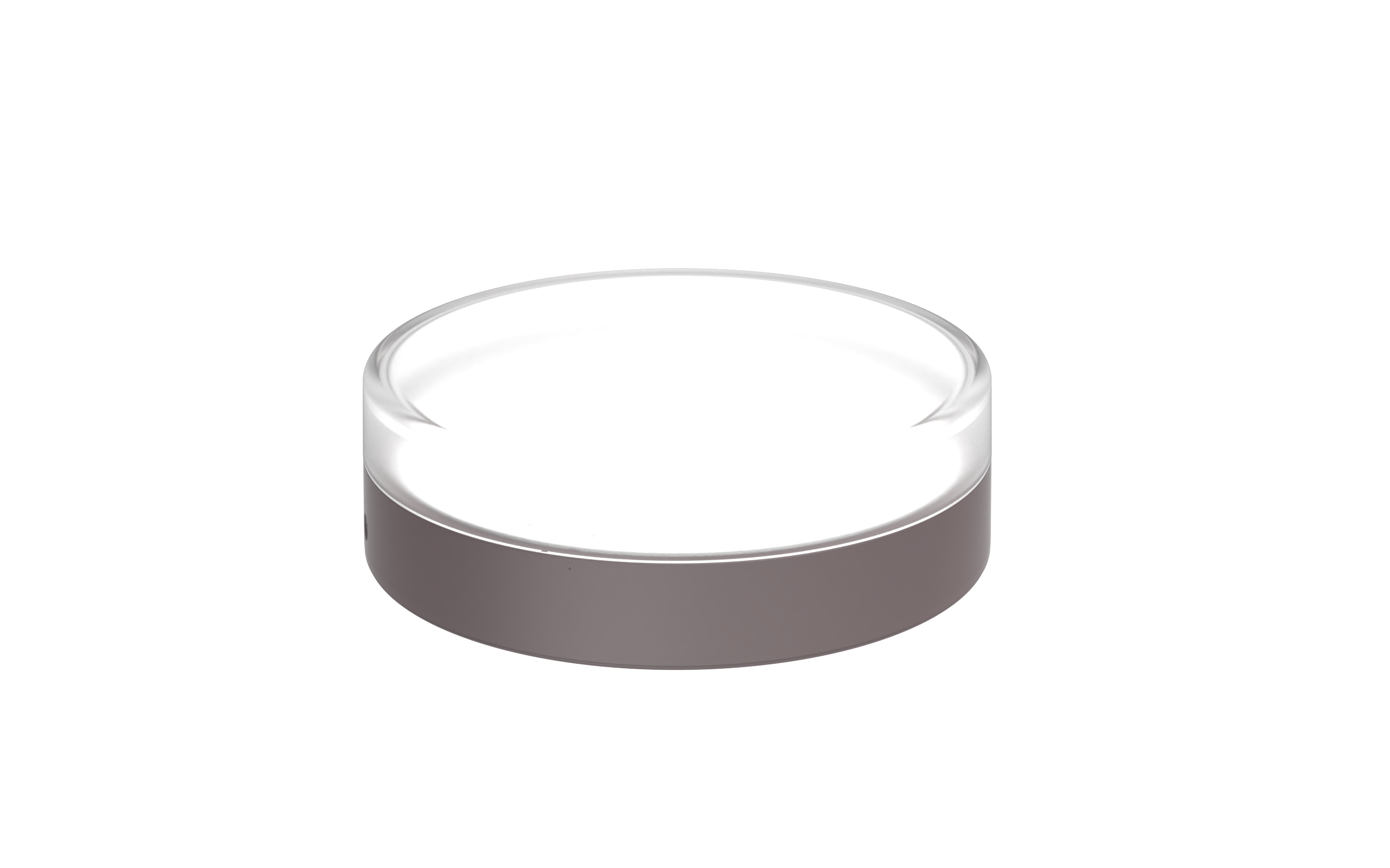

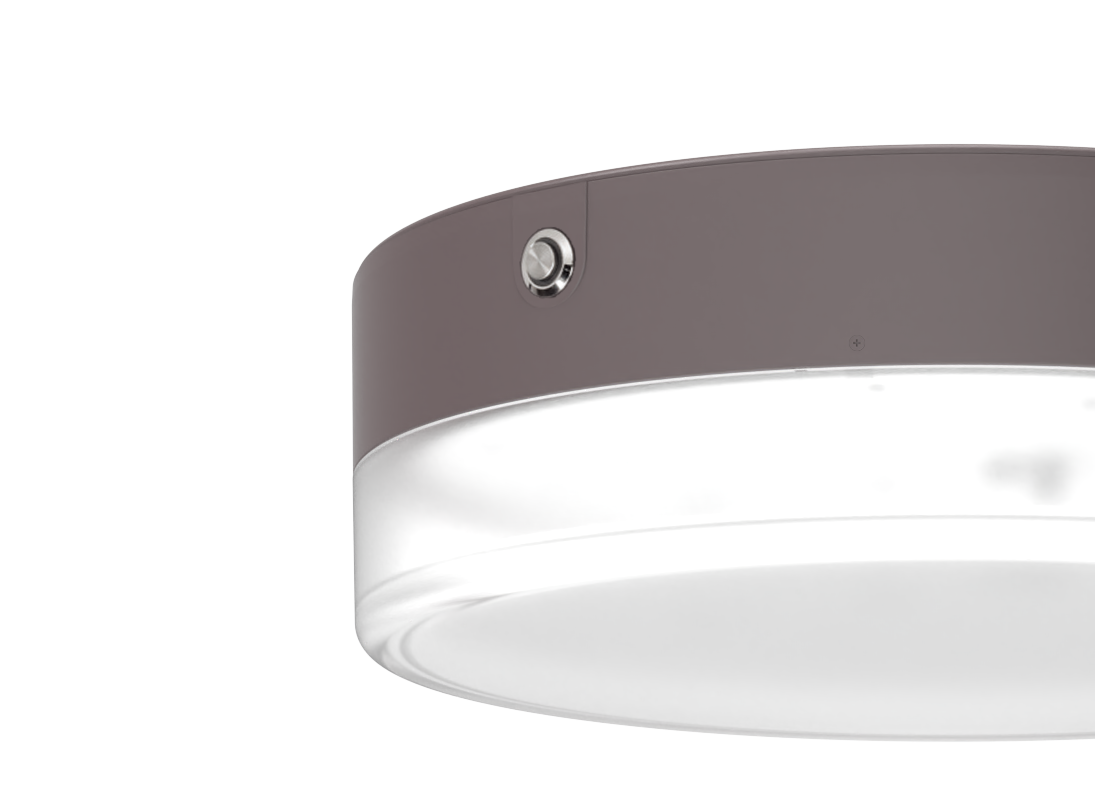

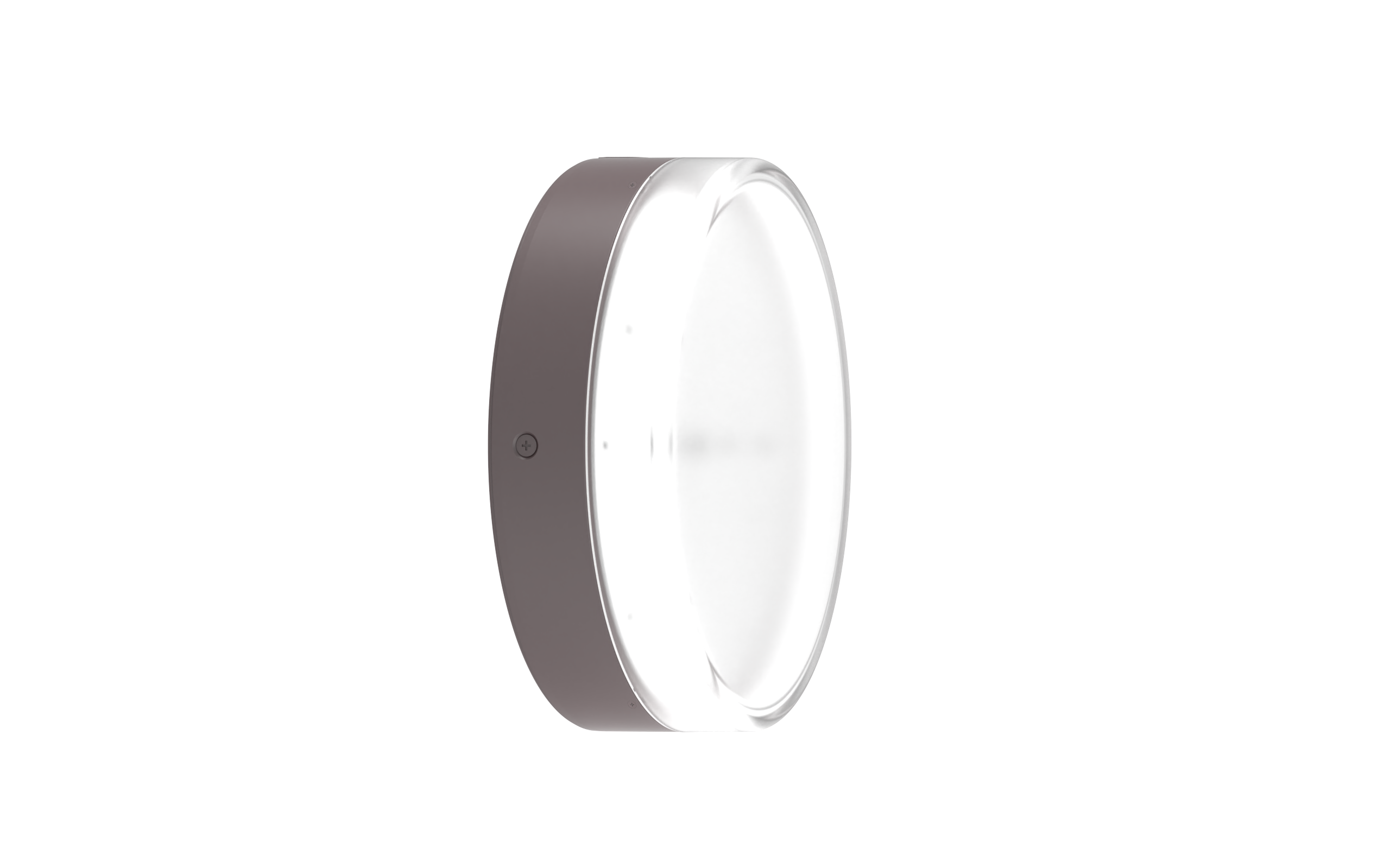

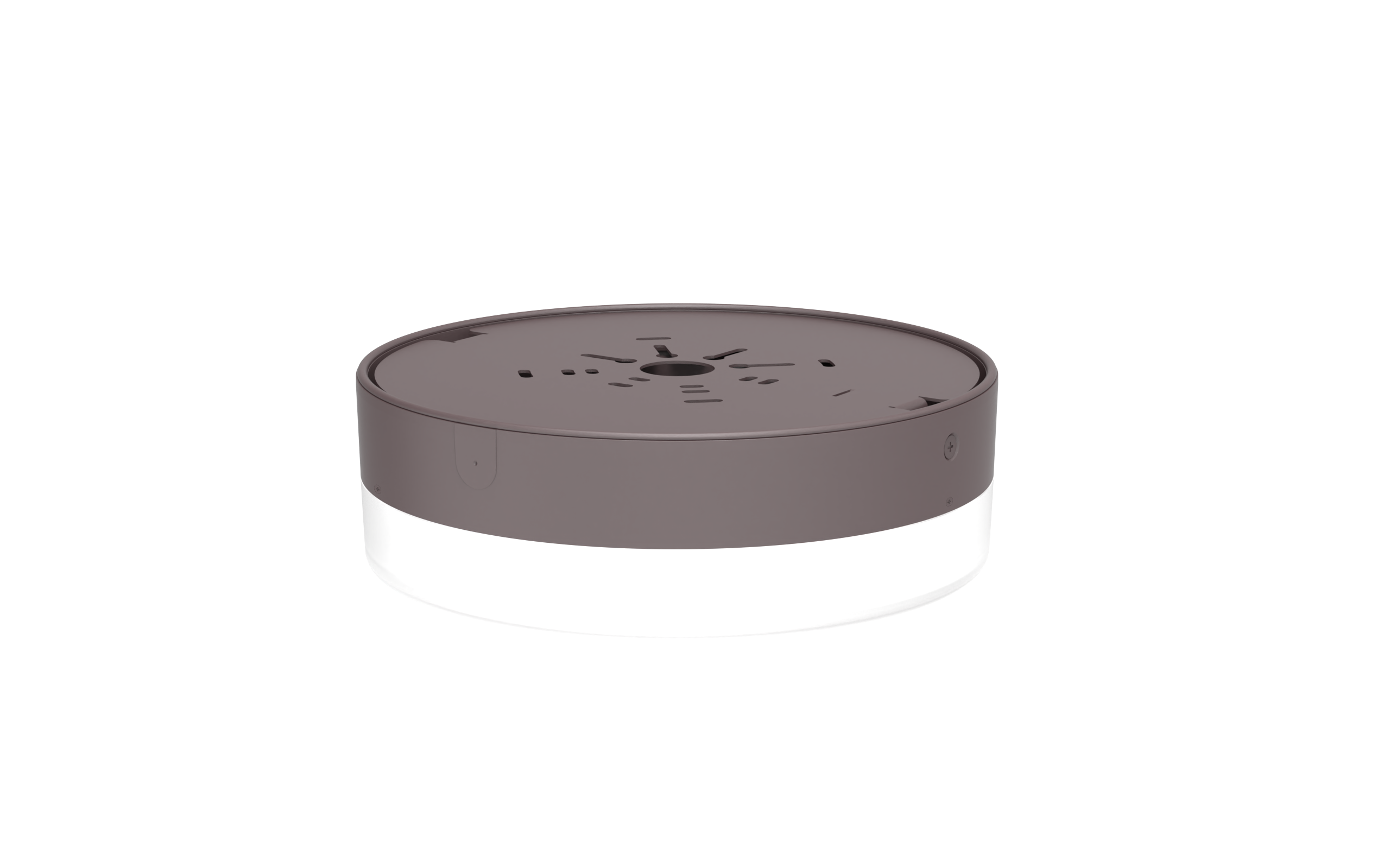

Versatile canopy light with two selectable wattage ranges, designed for parking garages and gas stations. Parking Garage beam pattern optimized for even illumination across large ceiling areas.
| Model | Wattage | Efficacy | Lumens | Surge Protection | Input Voltage |
|---|---|---|---|---|---|
| CPS04/60/SW | ADJ 30/45/60W | 125-140 lm/W | 3,750 / 5,625 / 9,000 lm | ＞4KV | 120-277V |
| CPS04/100/SW | ADJ 60/80/100W | 125-140 lm/W | 7,500 / 10,000 / 12,500 lm | ＞4KV | 120-277V |
| Parameter | Value |
|---|---|
| CRI | ＞80 |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Dimming | 0-10V |
| Color Temperature | 3000K / 4000K / 5000K |
| Colors | Black / White / Bronze |
| Beam Angle | Parking Garage |
| Surge Protection | ＞4KV |
| Sensor | Motion Sensor / Microwave Sensor |
| Operating Temp | -40℃ ~ 50℃ |
| Dimension (60W) | 244×244×76mm (9.61"×9.61"×3") |
| Dimension (100W) | 329×329×114mm (12.95"×12.95"×4.5") |
| Weight (60W) | 2.5 kg / 5.51 lb |
| Weight (100W) | 3.5 kg / 7.72 lb |
| Warranty | 5 Years |
| Lifetime | L70B50: 100,000 hrs @ 25℃ |
Parking Garages · Gas Station Canopies · Commercial Entrances
