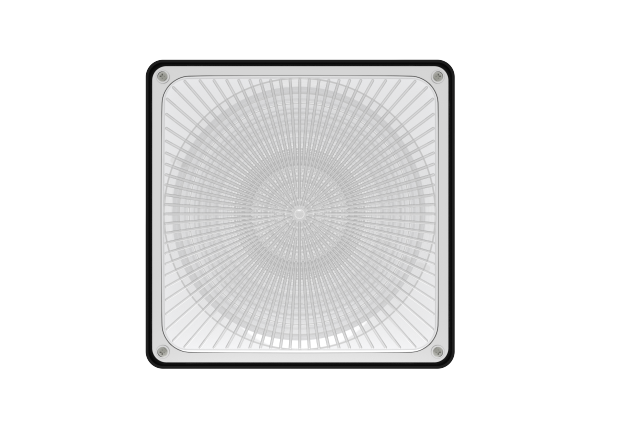

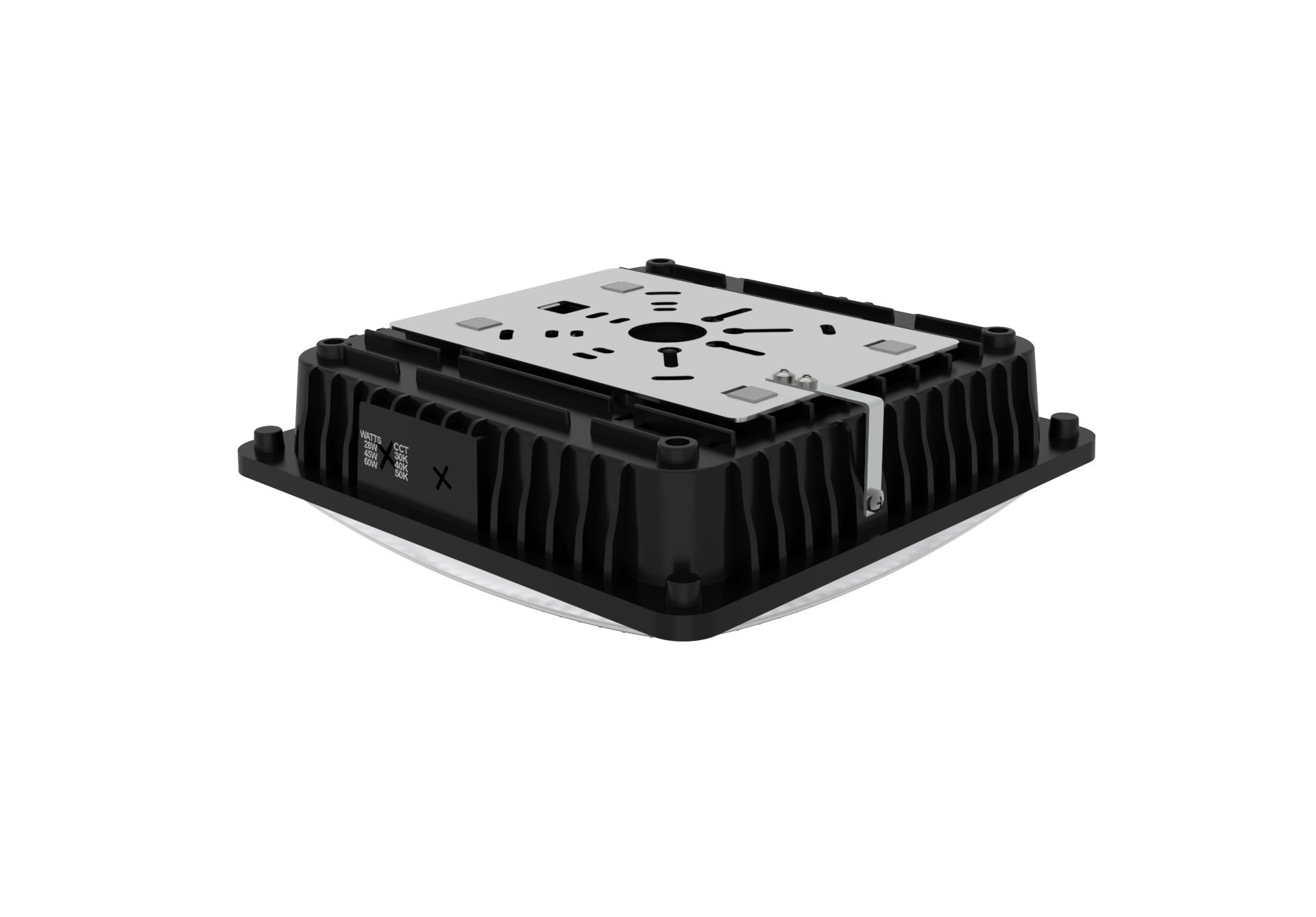

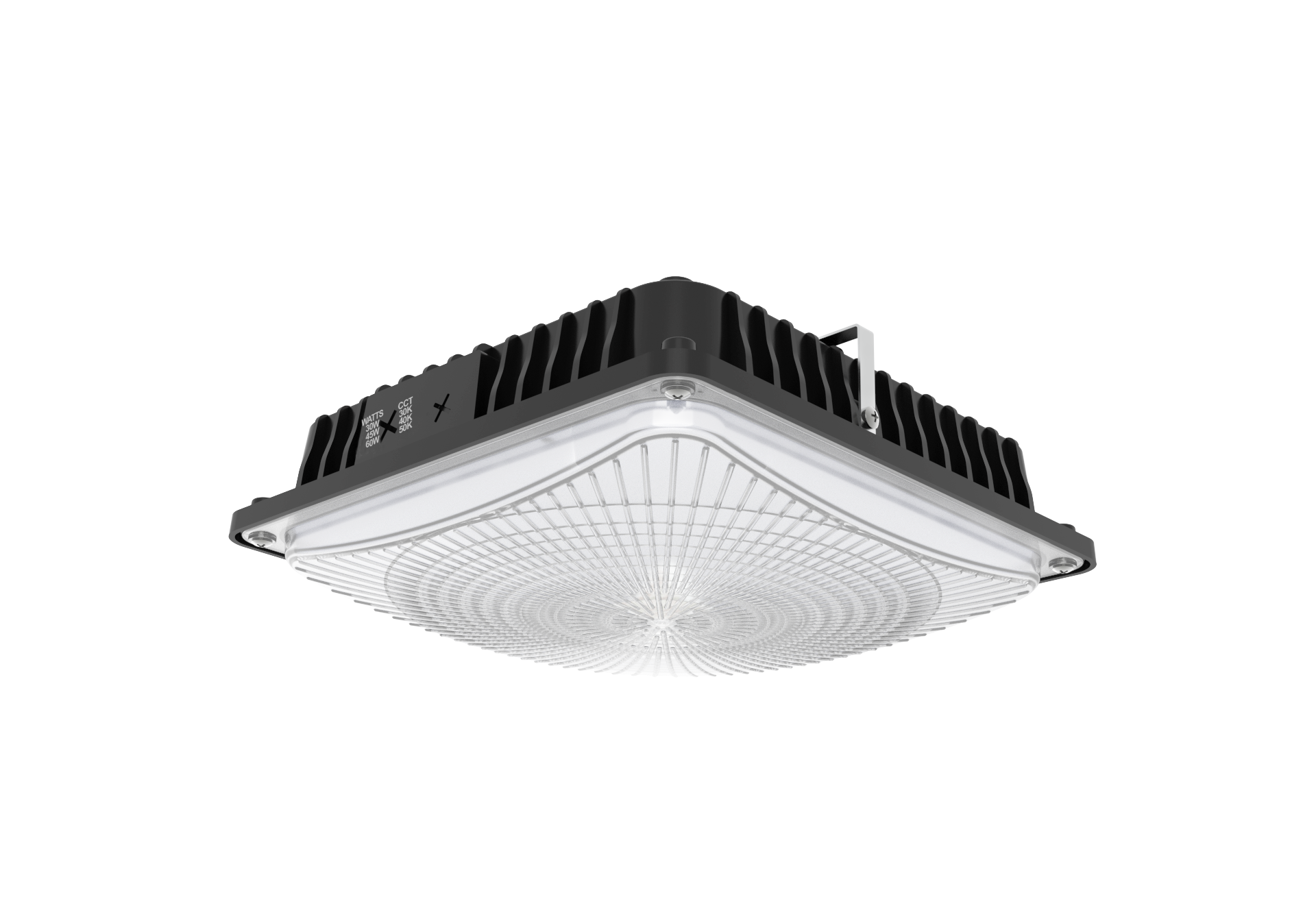

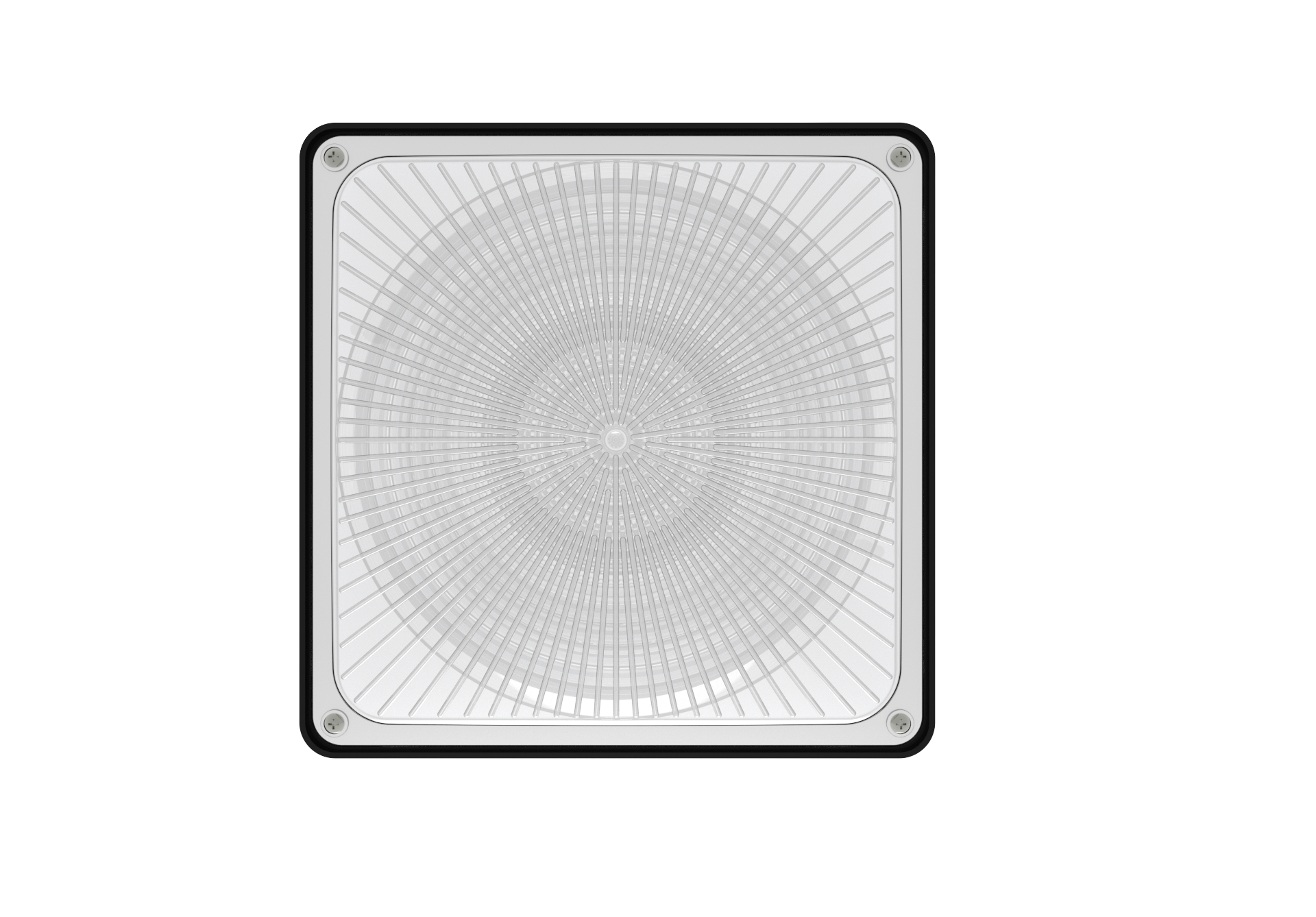

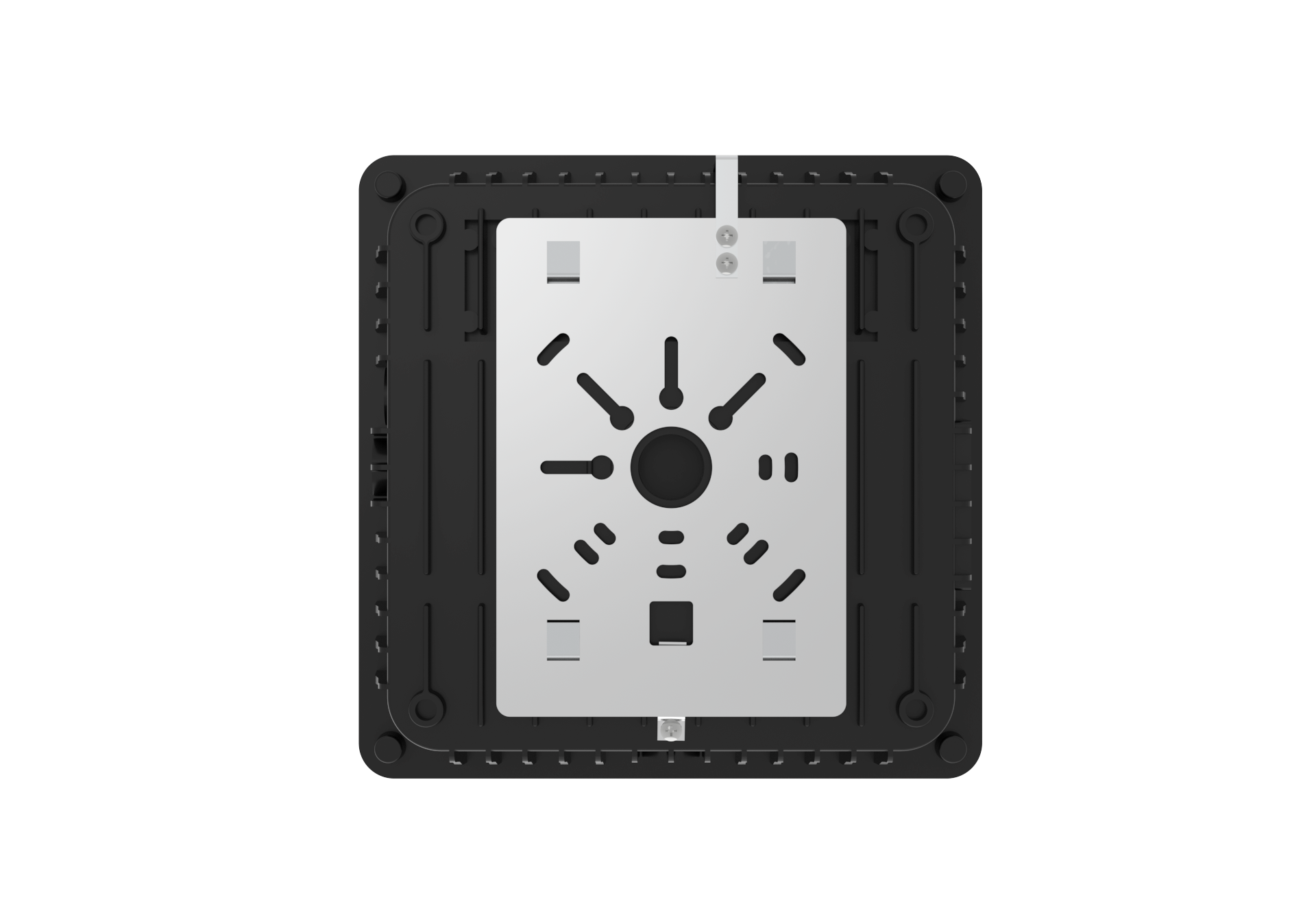

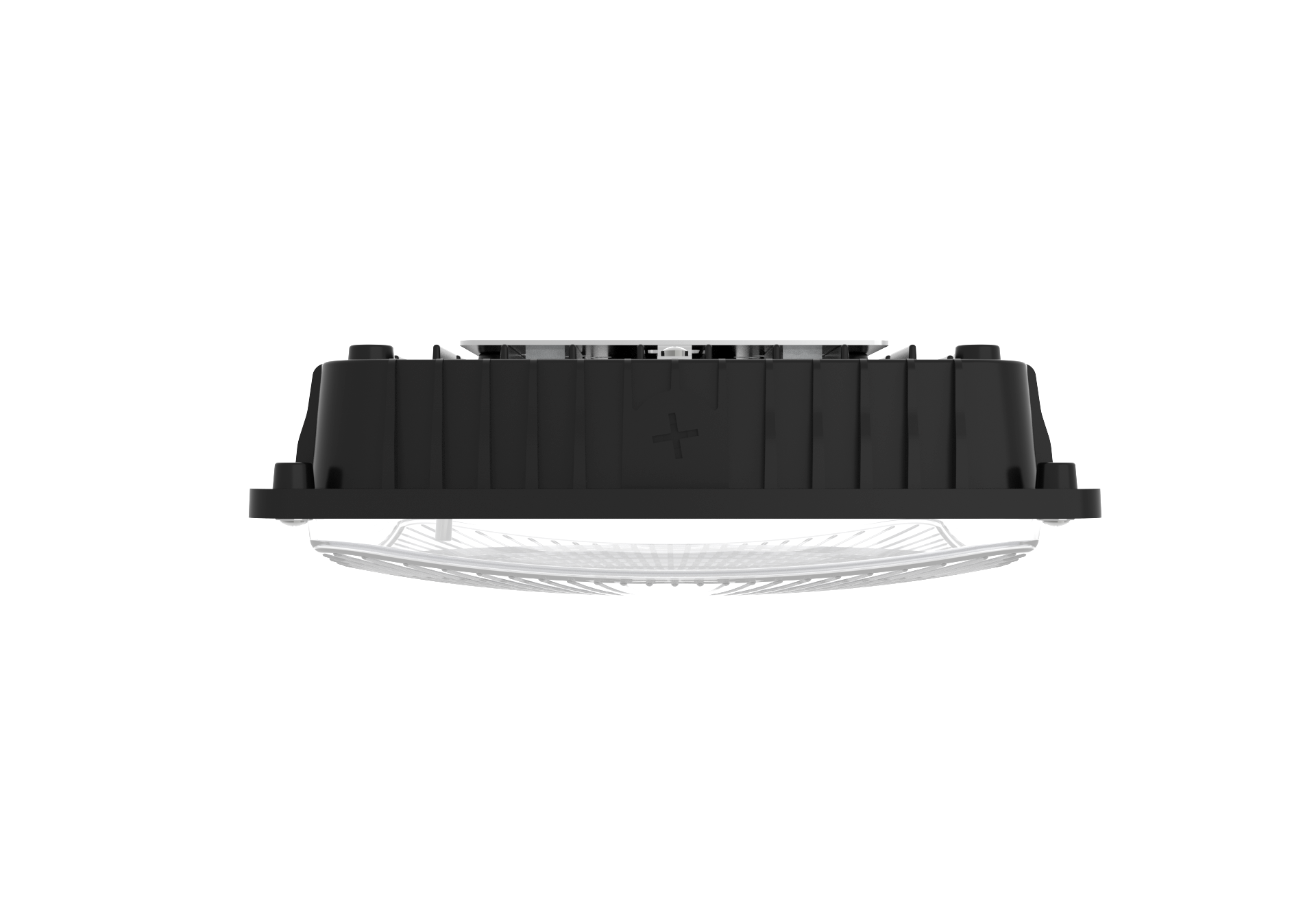

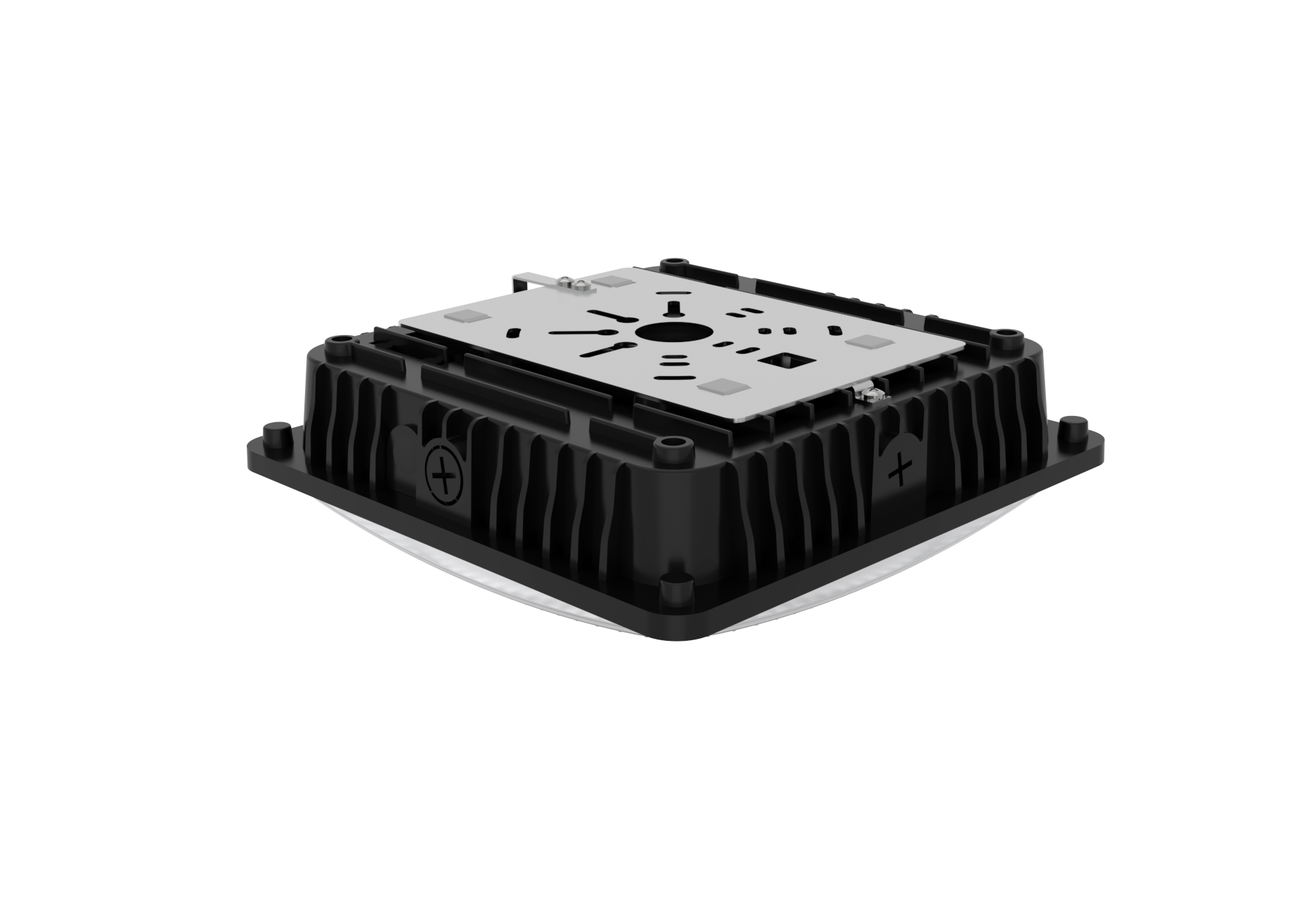

Dual-optic canopy light with selectable Parking Garage (150°) and Canopy (125°) beam patterns. Up to 160 lm/W with CP optic — one of the most efficient canopy lights in its class. PIR/Microwave sensor with remote control included.
| Model | Wattage | PG Optic (lm) | CP Optic (lm) | Surge | Input Voltage |
|---|---|---|---|---|---|
| CPS05/60/SW | ADJ 30/45/60W | 8,100-9,000 lm | 8,700-9,600 lm | ＞6KV | 120-277 / 120-347 / 277-480V |
| CPS05/100/SW | ADJ 40/60/80/100W | 8,100-9,000 lm | 8,700-9,600 lm | ＞6KV | 120-277 / 120-347 / 277-480V |
| Parameter | Value |
|---|---|
| CRI | ＞80 |
| IP Rating | IP65 |
| IK Rating | IK10 (Housing) / IK08 (Lens) |
| Dimming | 0-10V |
| Color Temperature | 3000K / 4000K / 5000K |
| Colors | Black / White / Bronze |
| Beam Angle | PG Optic: 150° / Canopy Optic: 125° |
| Efficacy (PG Optic) | 135-150 lm/W |
| Efficacy (CP Optic) | 145-160 lm/W |
| Surge Protection | ＞6KV |
| Sensor | PIR Sensor & Remote / Microwave Sensor & Remote / Photocell |
| Operating Temp | -40℃ ~ 50℃ |
| Dimension | 254×254×68mm (10"×10"×2.68") |
| Weight (60W) | 1.9 kg / 4.19 lb |
| Weight (100W) | 1.96 kg / 4.32 lb |
| Warranty | 5 Years |
| Lifetime | L70B50: 100,000 hrs @ 25℃ |
Parking Garages · Gas Stations · Commercial Canopies · Industrial Facilities
