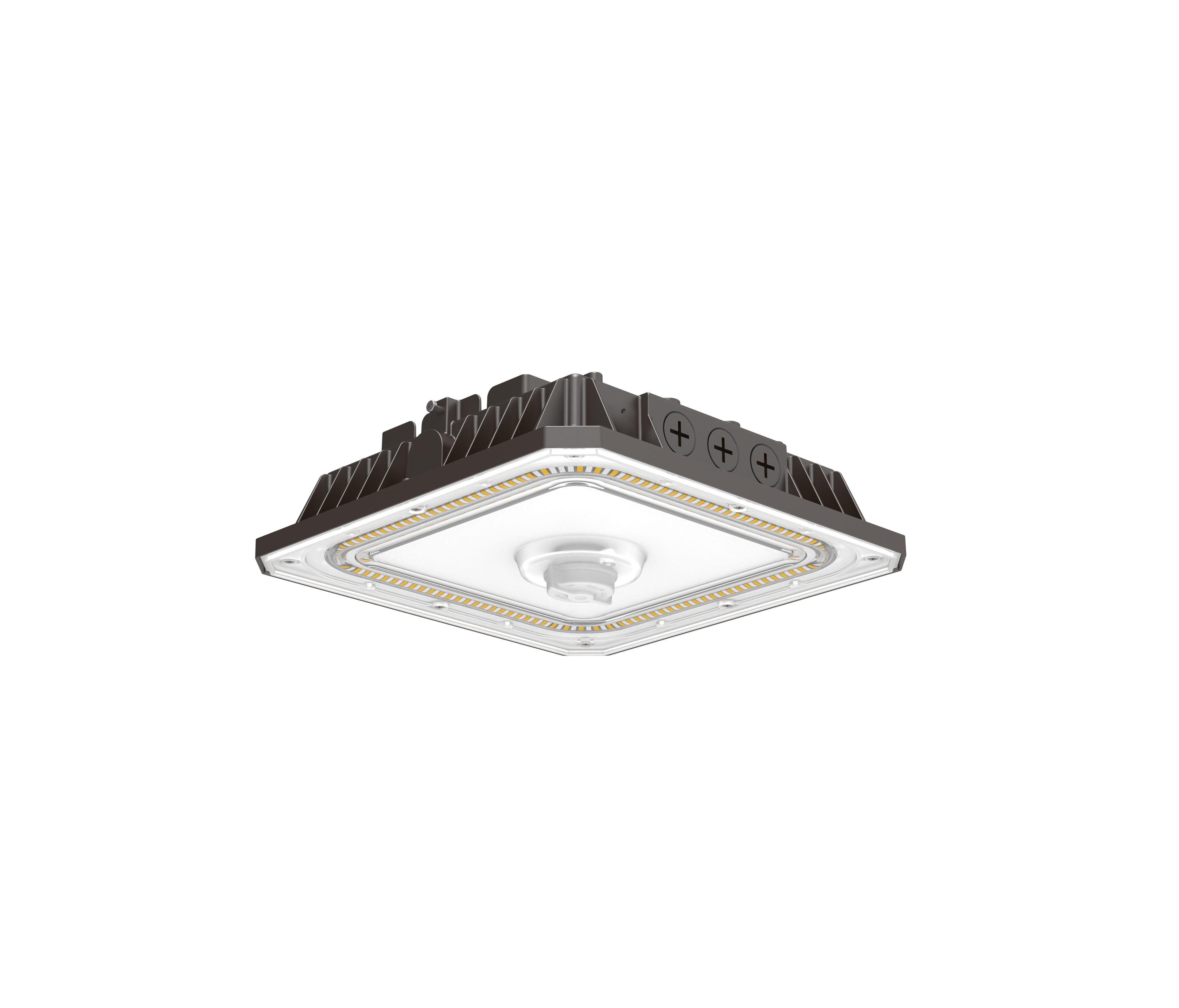

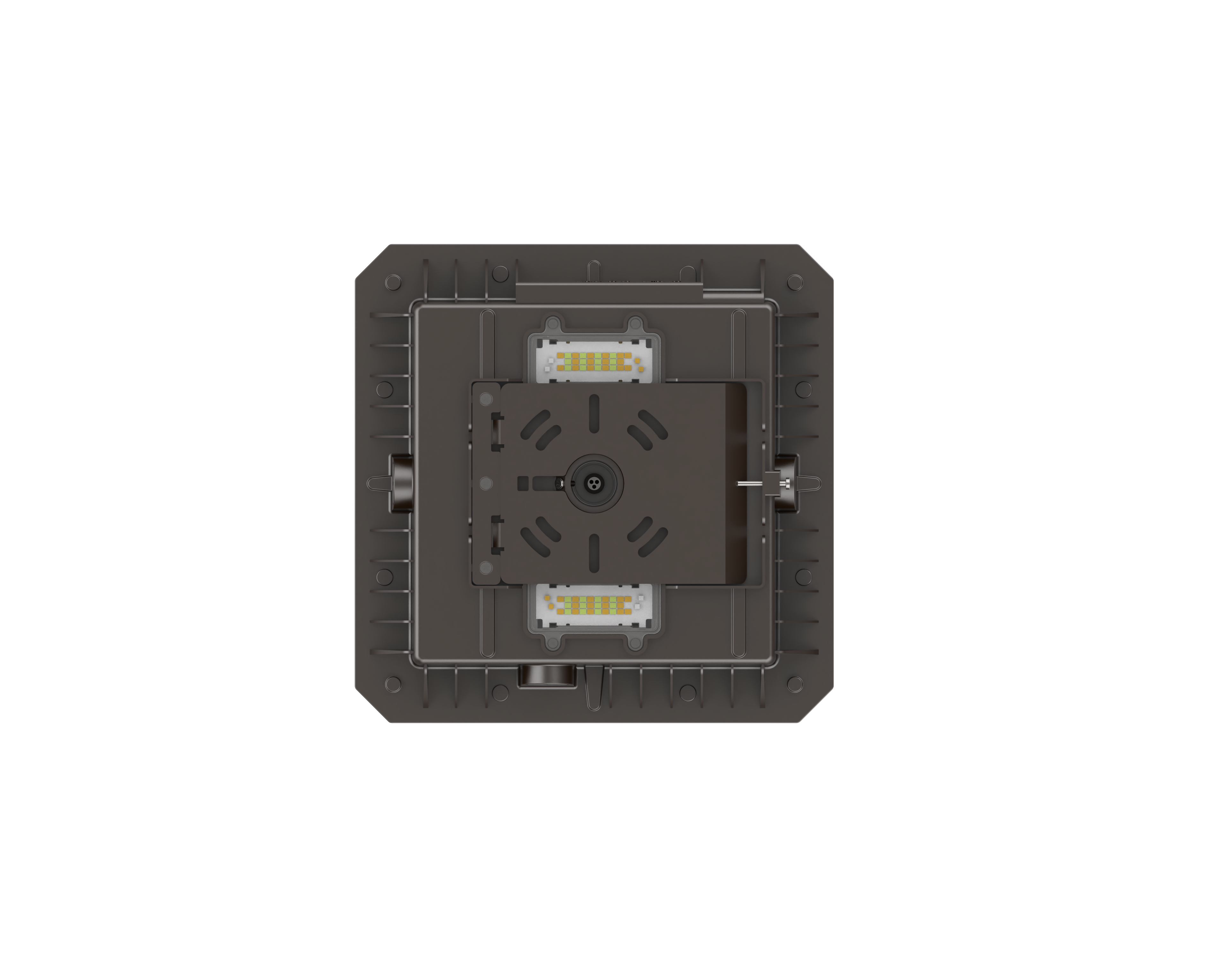

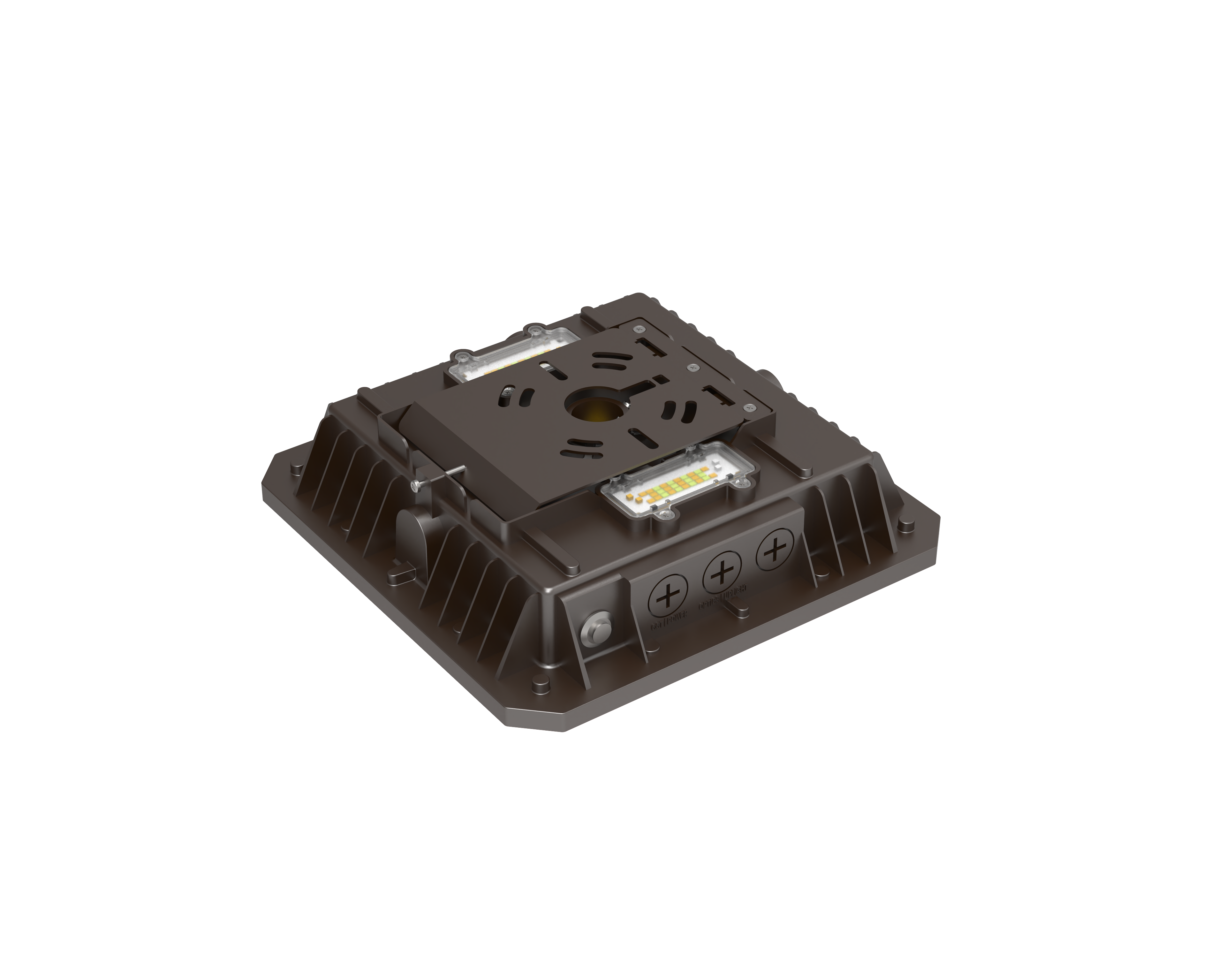

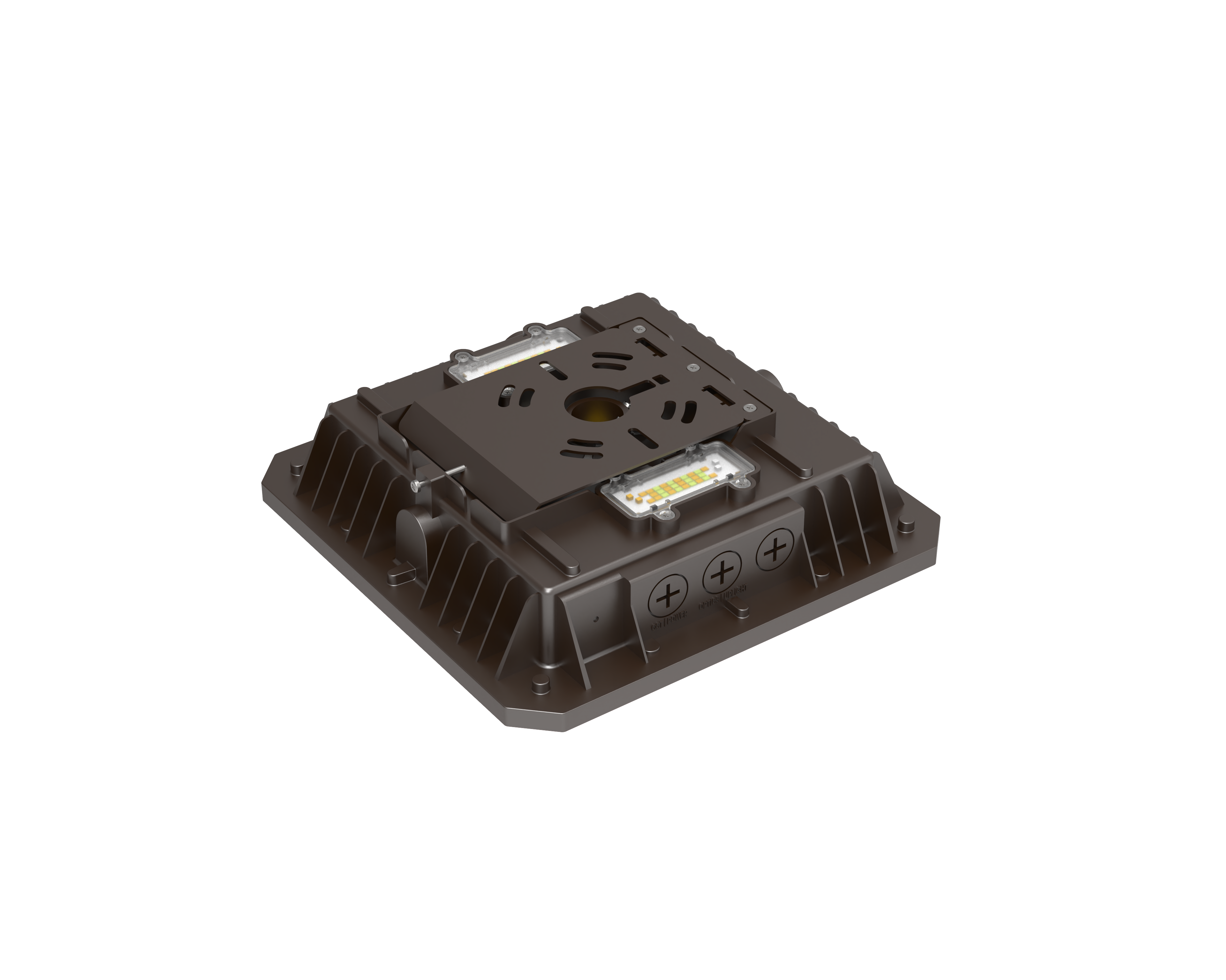

PAN VI - Ceiling/Pole Mount LED Canopy Light

No.CPG02

PAN VI is a ceiling/pole mount LED canopy light with selectable wattage (100/125/150W). IP65/IK08 rated, 0-10V dimming, 125-140 lm/W efficacy, up to 18,750 lm. 120-347V input, Z10 receptacle. White finish, 100° beam angle. 5-year warranty, 100,000-hour lifetime.

Download

View all downloads

PAN VI — Ceiling/Pole Mount LED Canopy Light

Versatile canopy light with both ceiling and pole mount options. High-output 150W selectable wattage with 120-347V input — suitable for high-ceiling commercial and industrial applications.

Model	Wattage	Efficacy	Lumens	Input Voltage
CPG02/150/SW/347	ADJ 100/125/150W	125-140 lm/W	Up to 18,750 lm	120-347V

Key Features

Dual Mount — Ceiling Mount or Pole Mount in one fixture
High Output — Up to 18,750 lm for high-ceiling applications
120-347V — Wide voltage range, 347V for Canadian market
Z10 Receptacle — Smart node ready
100° Beam — Wide coverage for canopy and ceiling applications
Slim Profile — Only 67mm height, low-profile installation

Specifications

Parameter	Value
CRI	80
IP Rating	IP65
IK Rating	IK08
Dimming	0-10V
Color Temperature	3000K / 4000K / 5000K
Colors	White
Beam Angle	100°
Surge Protection	＞2KV
Sensor	Z10 Receptacle
Mounting	Ceiling Mount / Pole Mount
Operating Temp	-40℃ ~ 50℃
Dimension	420×420×67mm (16.54"×16.54"×2.64")
Weight	3.5 kg / 7.72 lb
Warranty	5 Years
Lifetime	L70B50: 100,000 hrs @ 25℃
