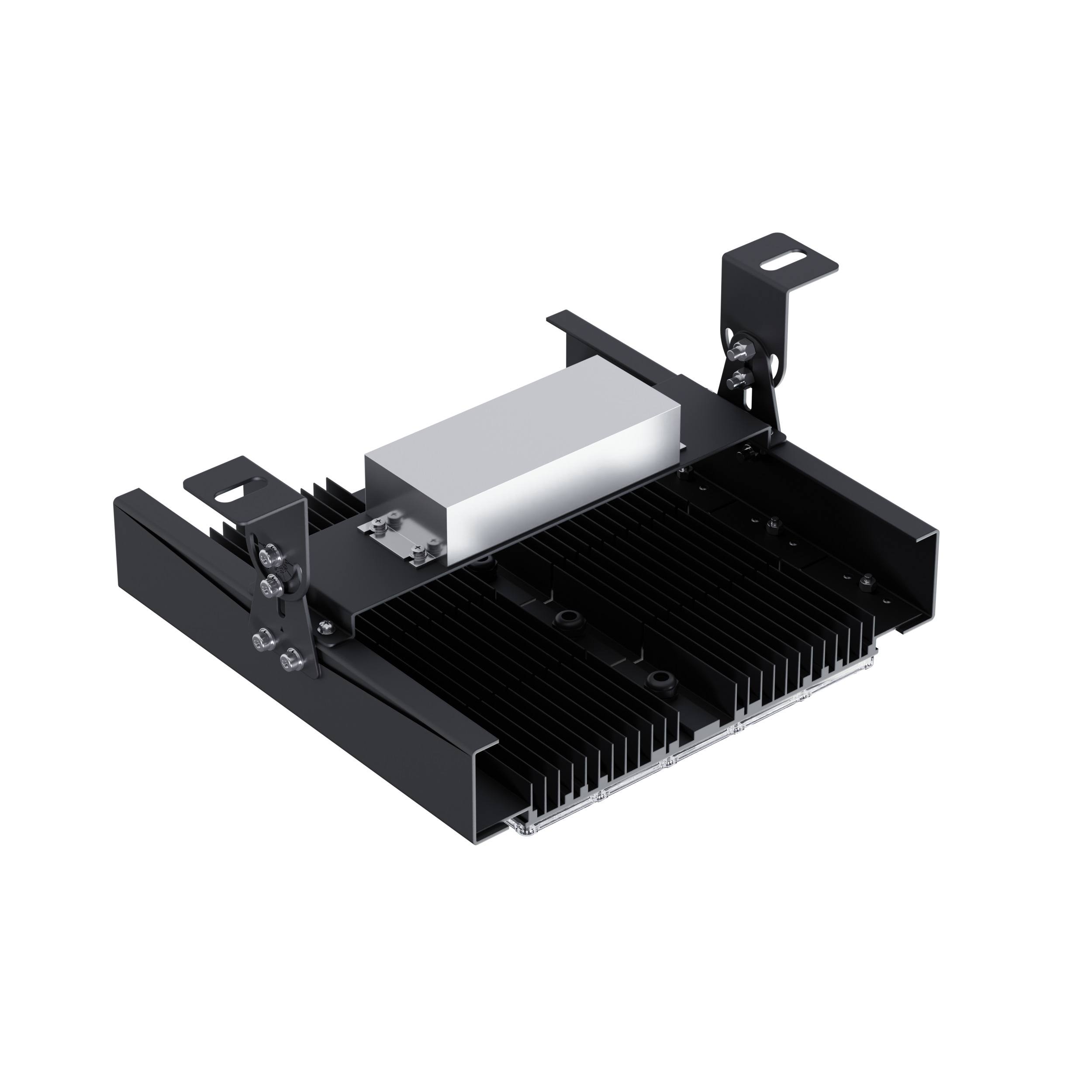

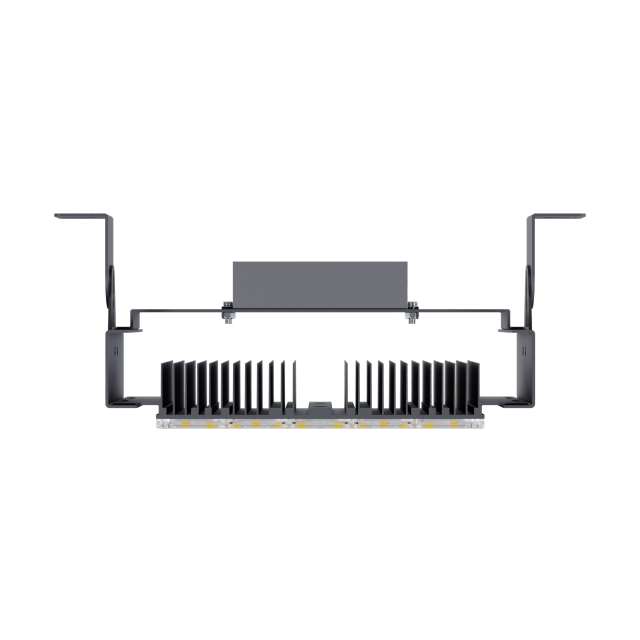

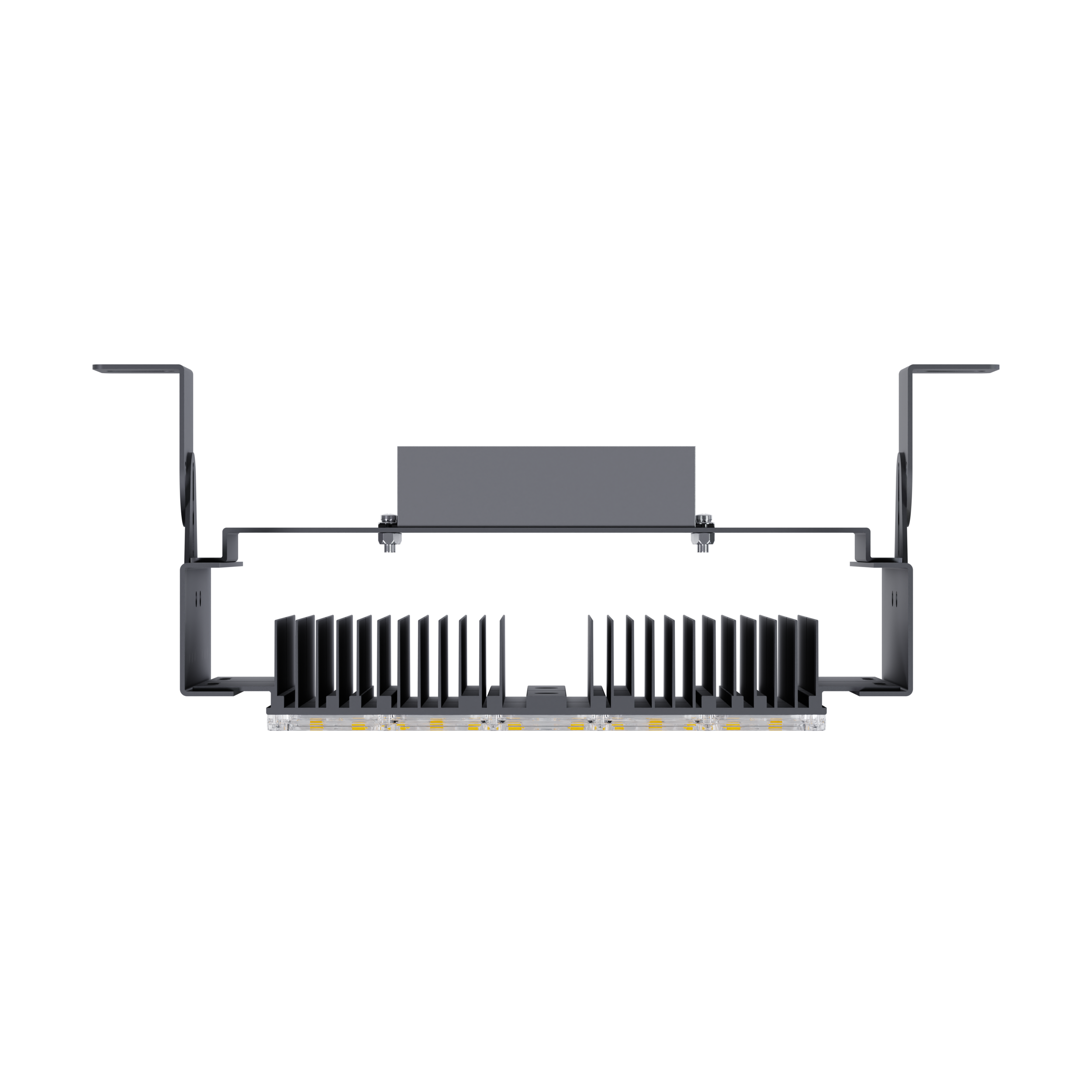

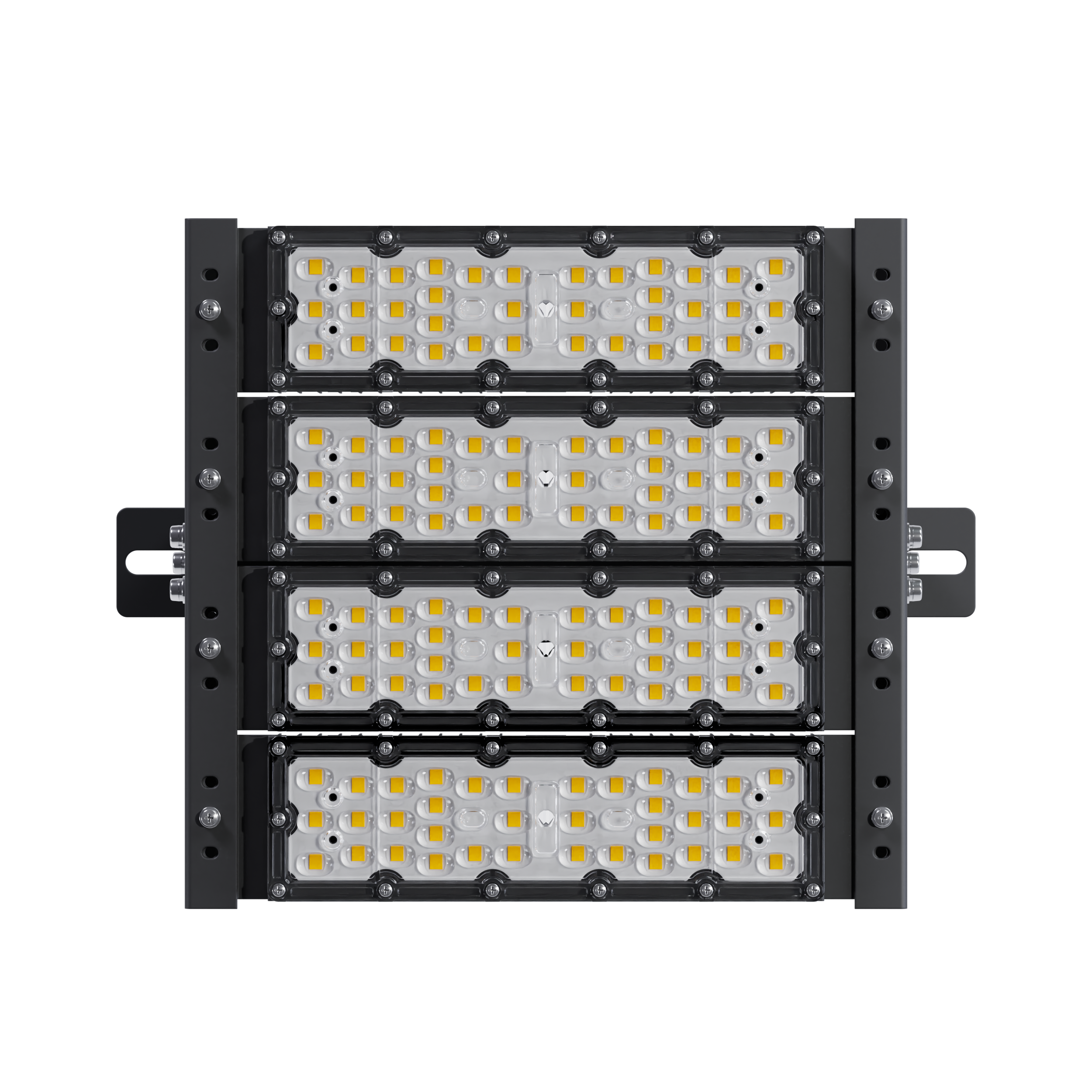

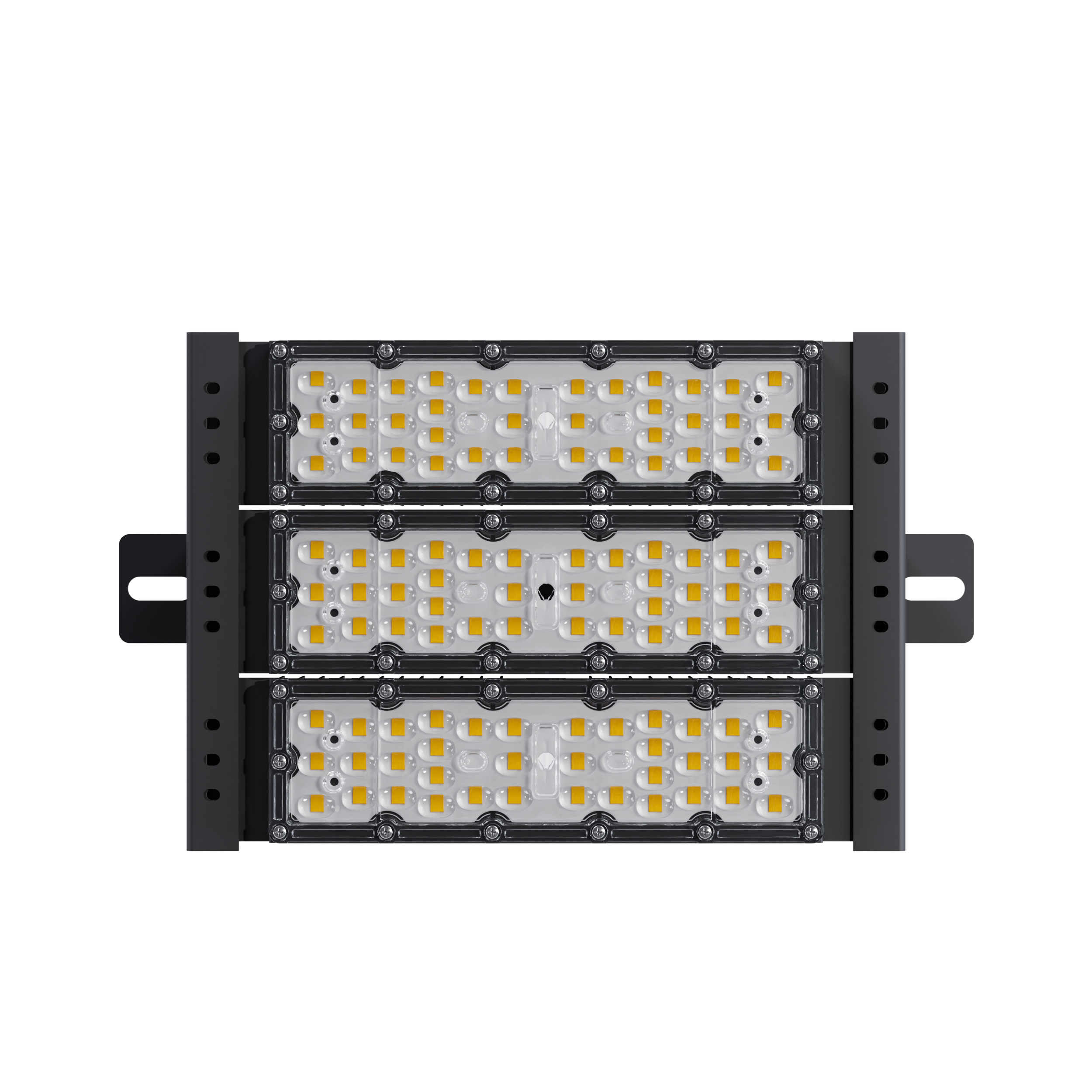

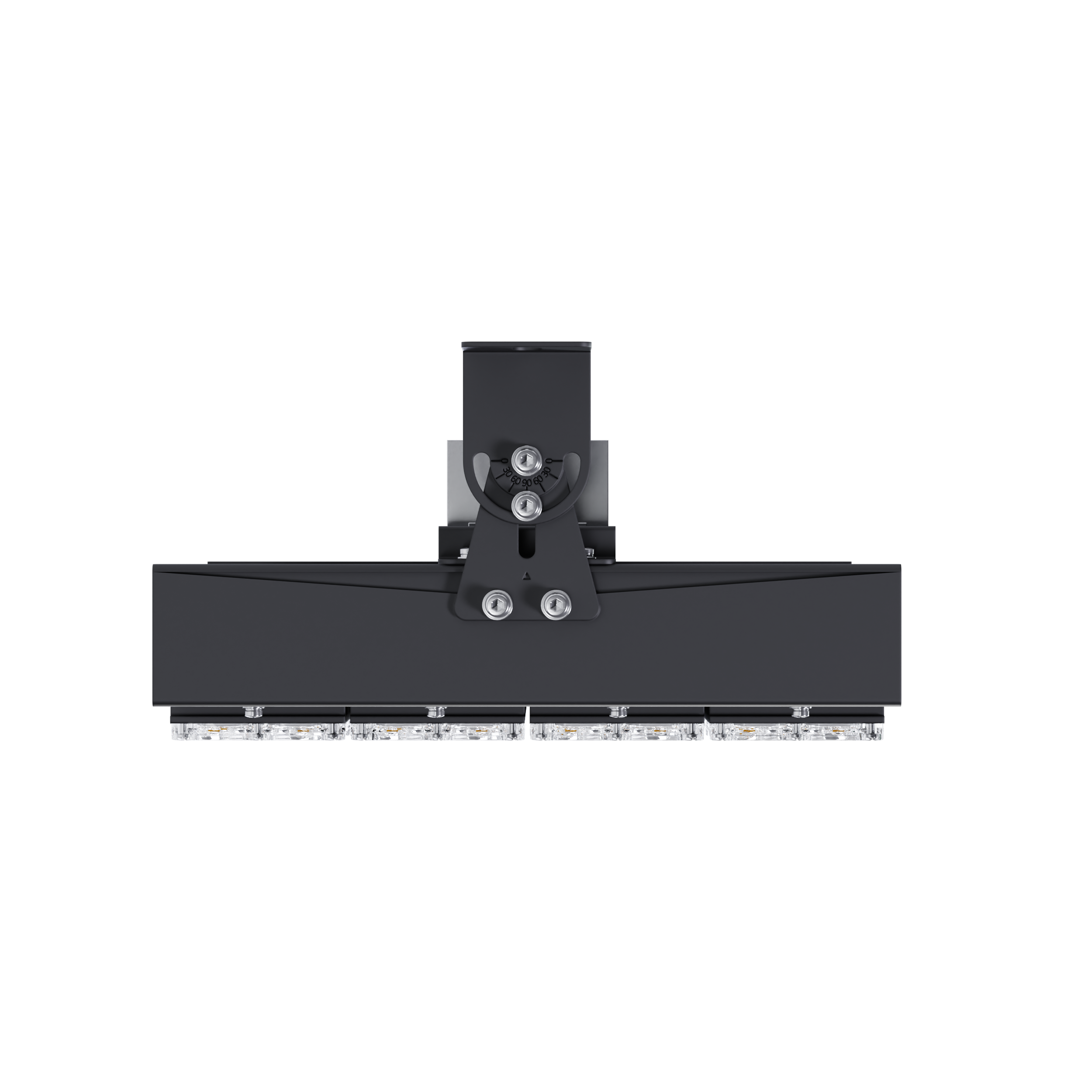

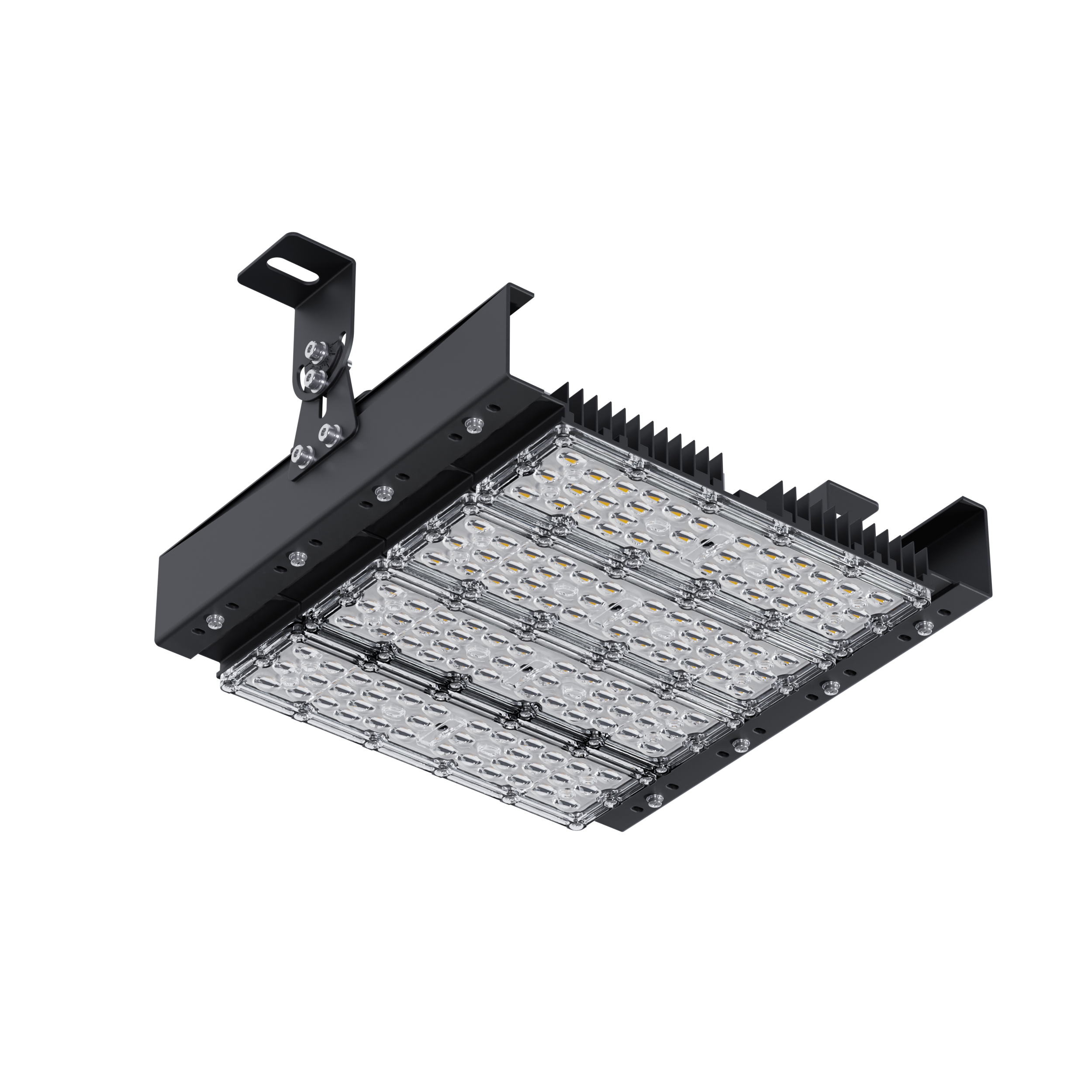

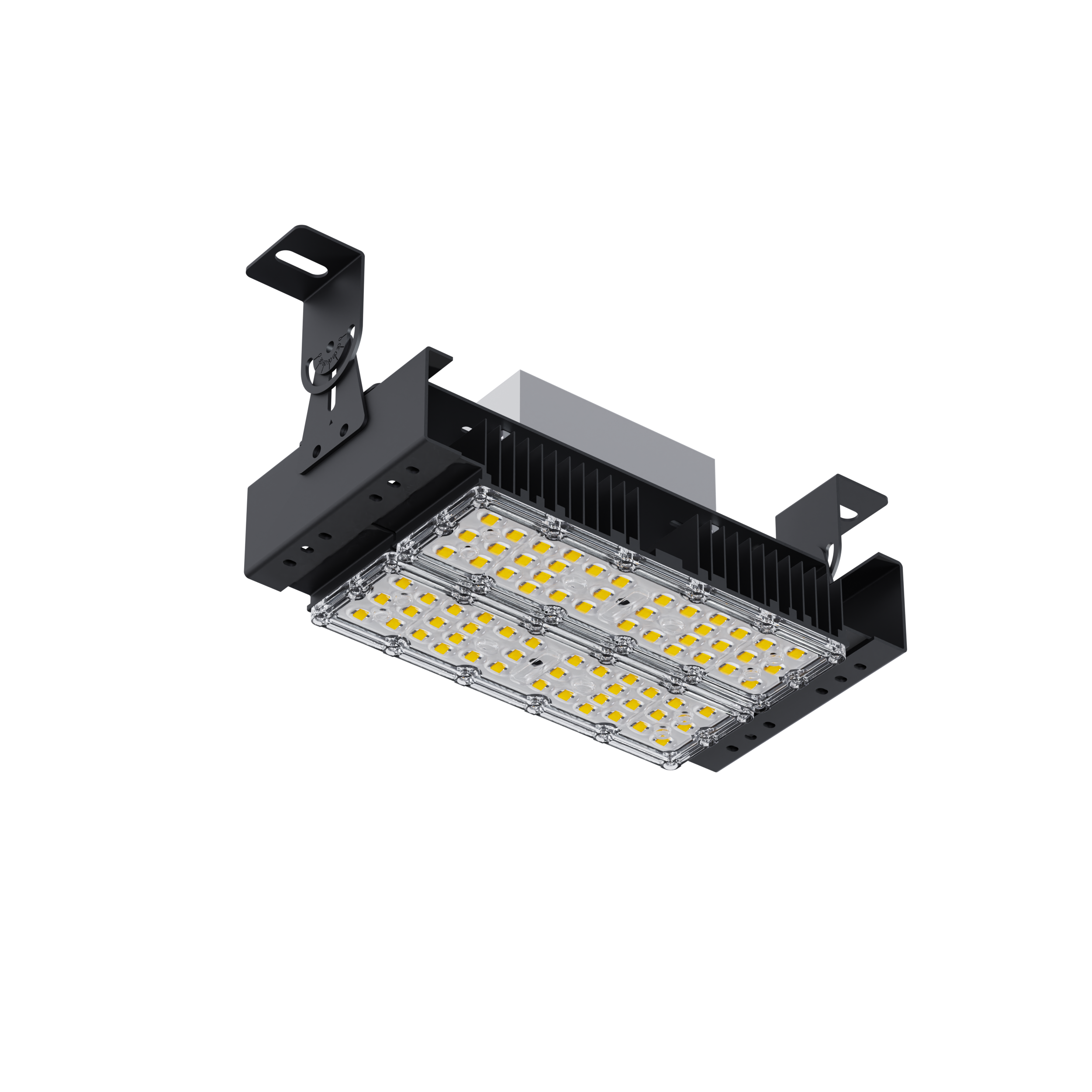

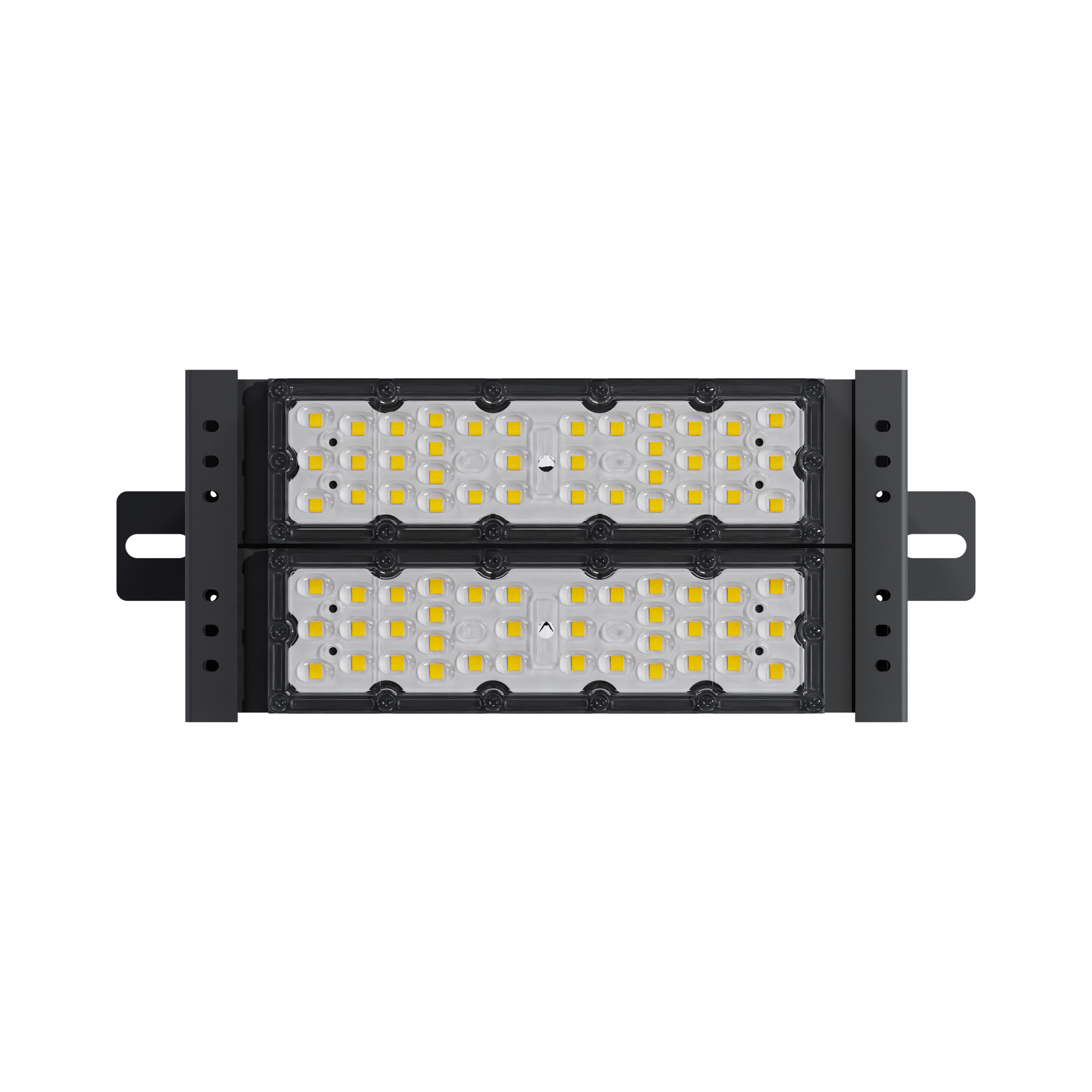

Linear LED Tunnel Light

No.SD802

SD802 is a linear aluminum LED tunnel light (40-100W) with 120 lm/W efficacy, up to 12,000 lm. IP65/IK07 rated, 0-10V dimming, 110° beam, 100-277V input. Top or wall mounting, 5-year warranty, 50,000-hour lifetime.

Download

View all downloads

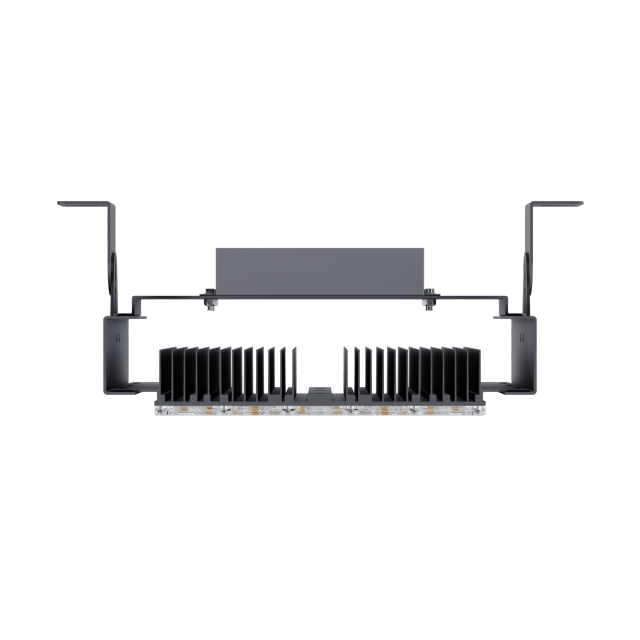

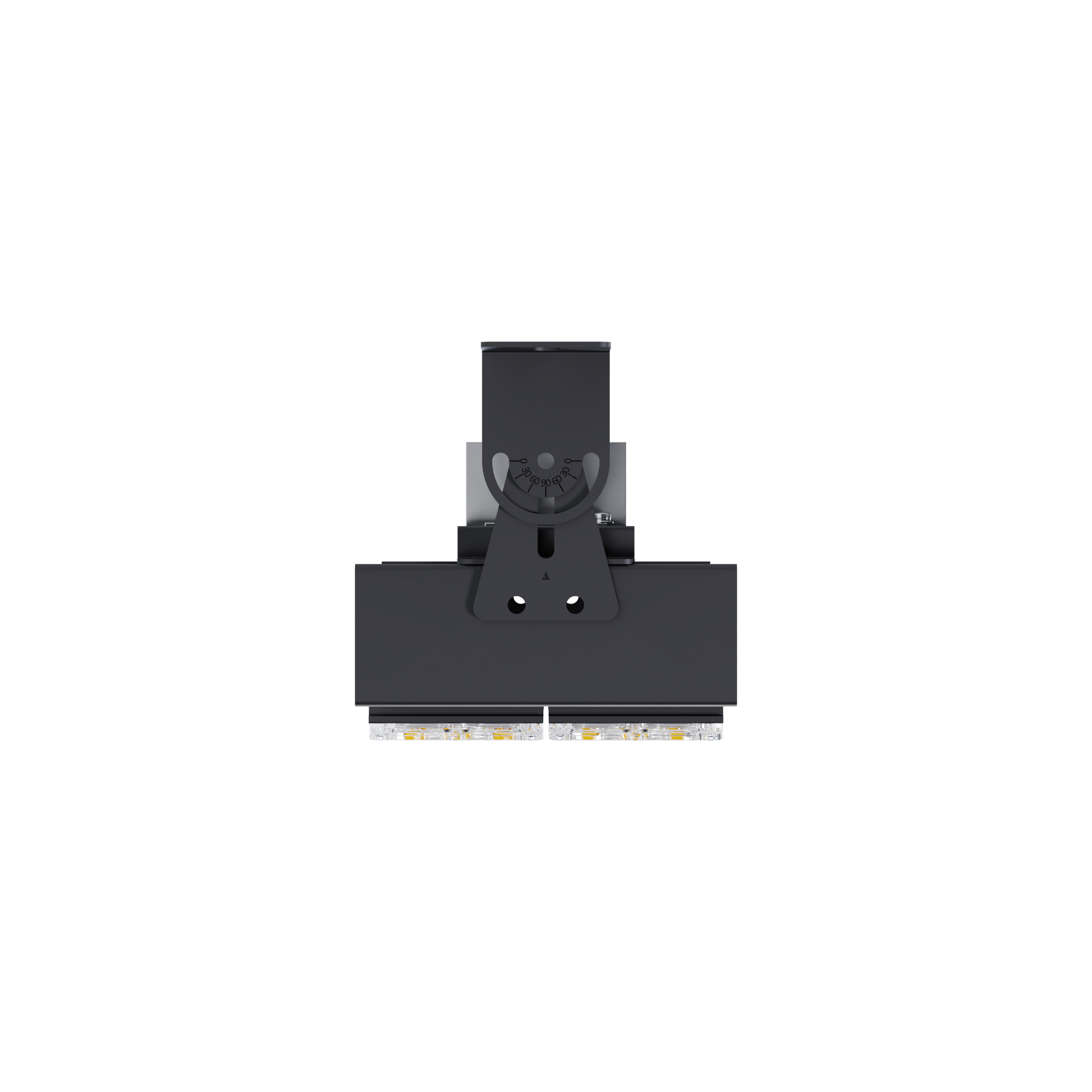

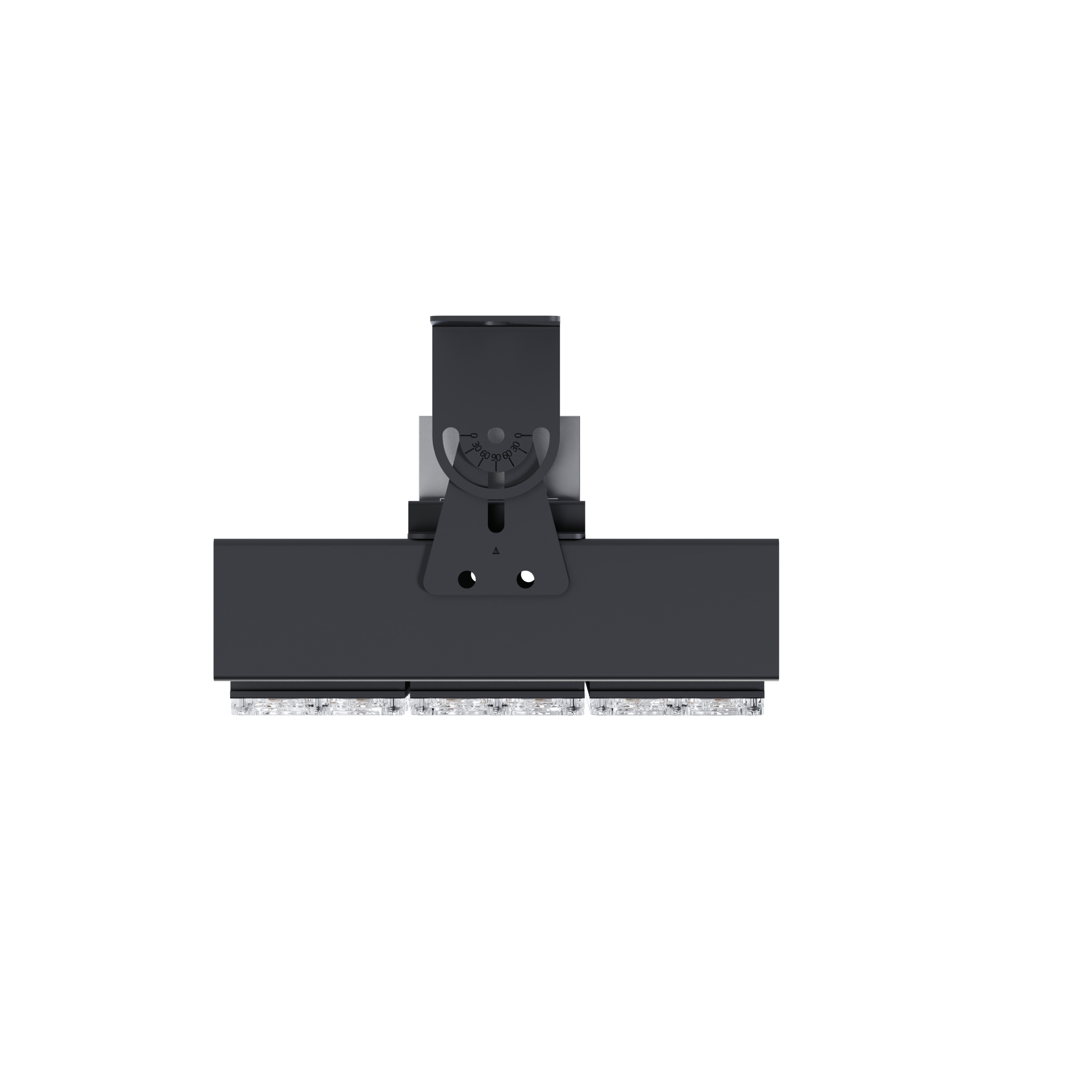

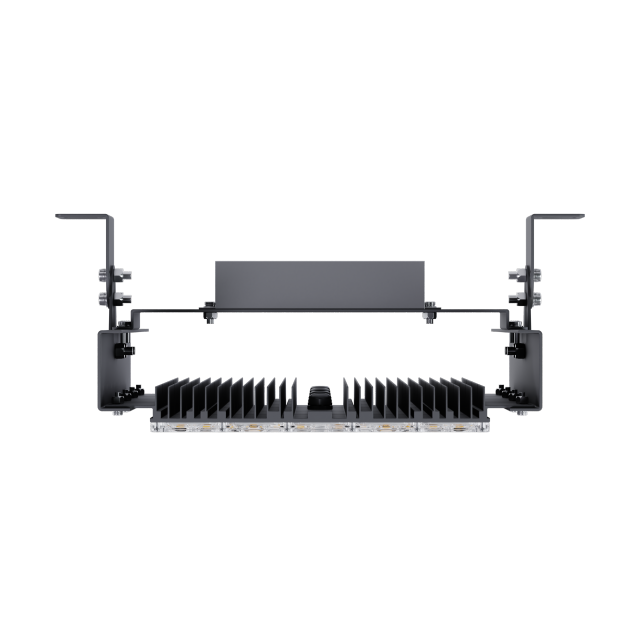

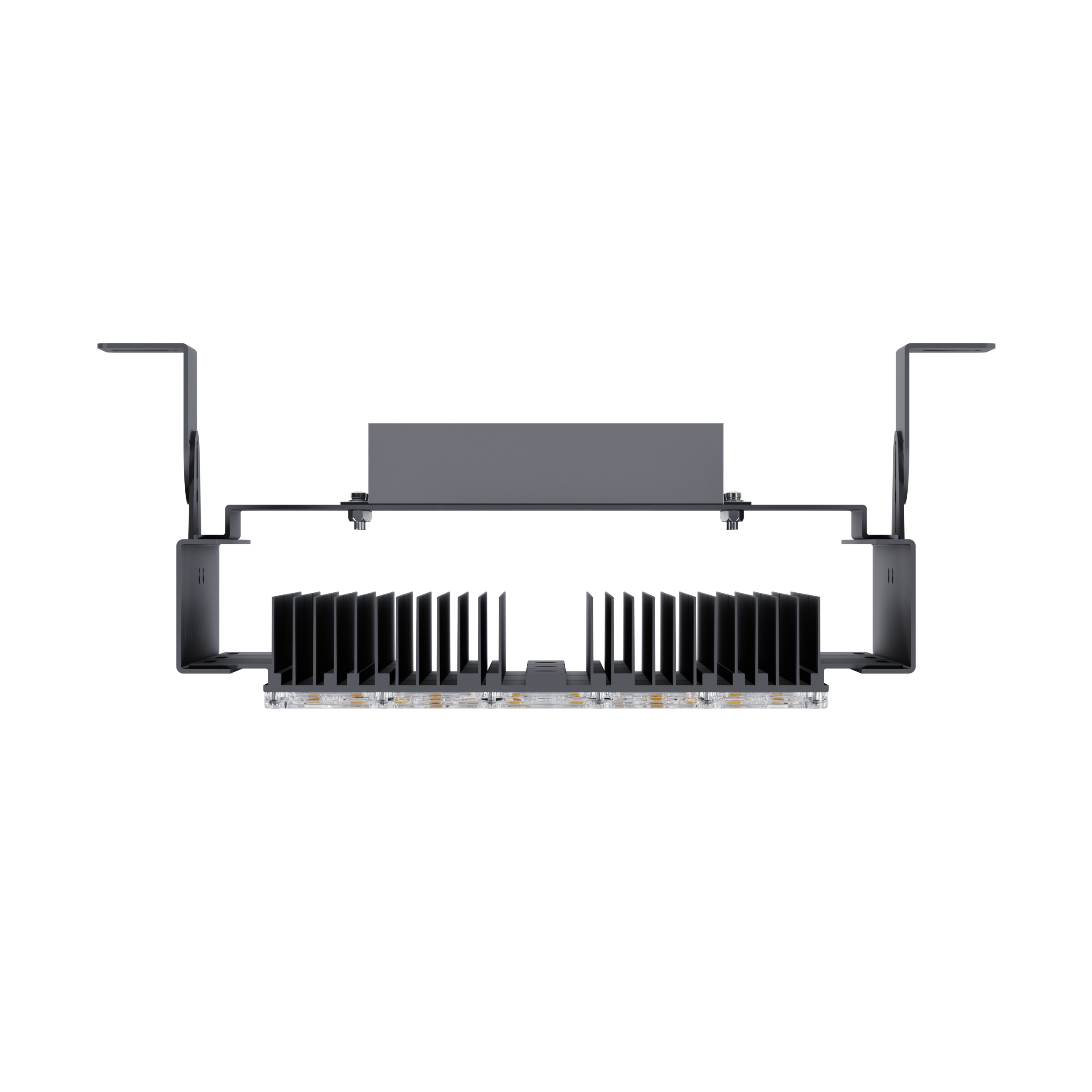

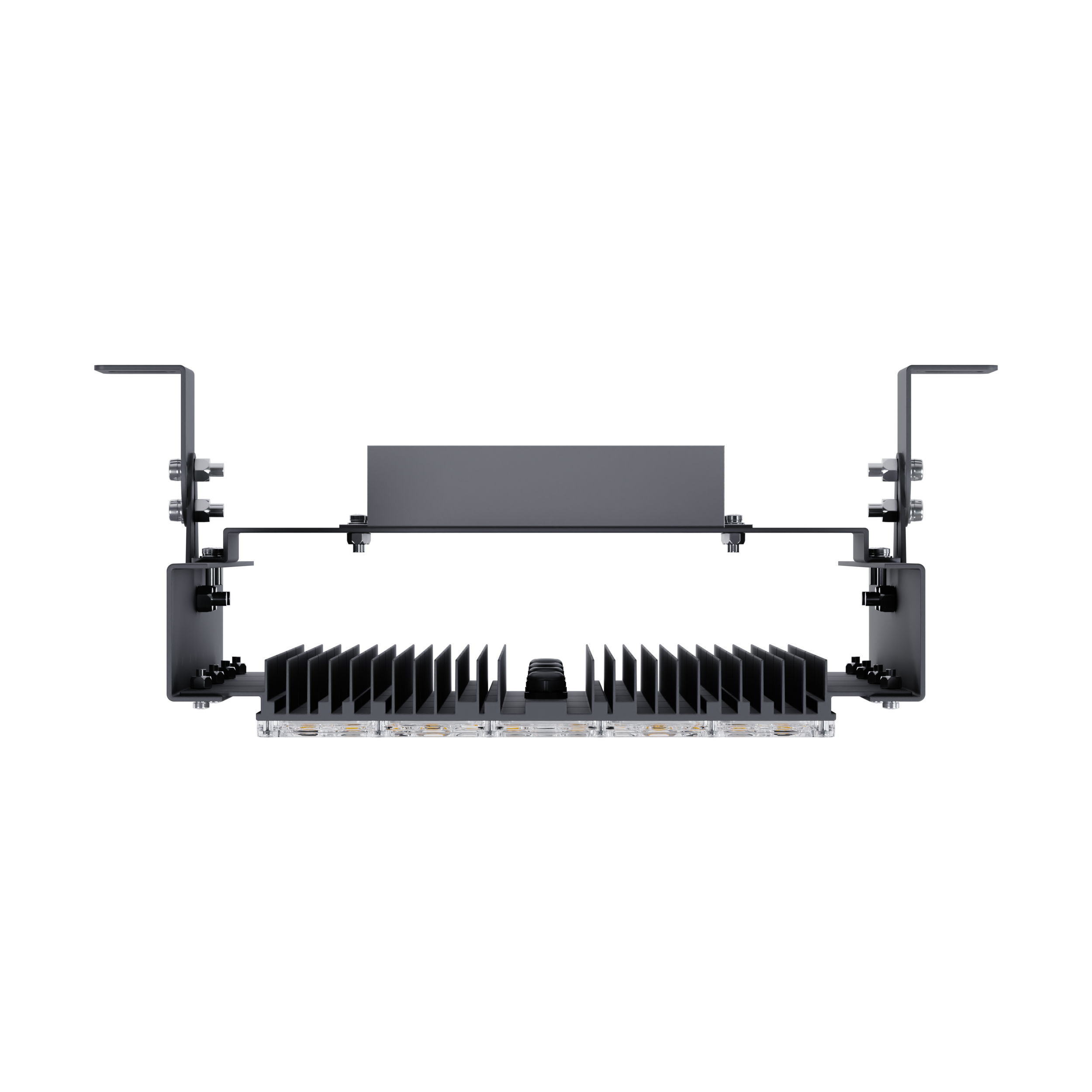

SD802 — Linear LED Tunnel Light

Slim linear tunnel light with 110° wide beam for uniform illumination. Lightweight aluminum construction at only 3.5 kg. 1-meter form factor for continuous tunnel lighting runs.

Key Features

110° Wide Beam — Uniform illumination across tunnel width
Linear Design — 1-meter length for continuous runs
Lightweight — Only 3.5 kg for easy installation
40-100W Adjustable — Single fixture covers multiple requirements
Aluminum Housing — Corrosion-resistant for tunnel environments
5700K Option — Daylight-like CCT for tunnel entrances

Specifications

Parameter	Value
CRI	≥70
IP Rating	IP65
IK Rating	IK07
Dimming	0-10V
Wattage	40-100W
Efficacy	120 lm/W
Lumens	Up to 12,000 lm
Color Temperature	3000K / 4000K / 5000K / 5700K
Material	Aluminum
Beam Angle	110°
Input Voltage	100-277V
Dimension	1007×111.8×142.9mm (39.65"×4.4"×5.63")
Weight	3.5 kg / 7.72 lb
Operating Temp	-40℃ ~ 50℃
Warranty	5 Years
Lifetime	L70B50: 50,000 hrs @ 25℃
