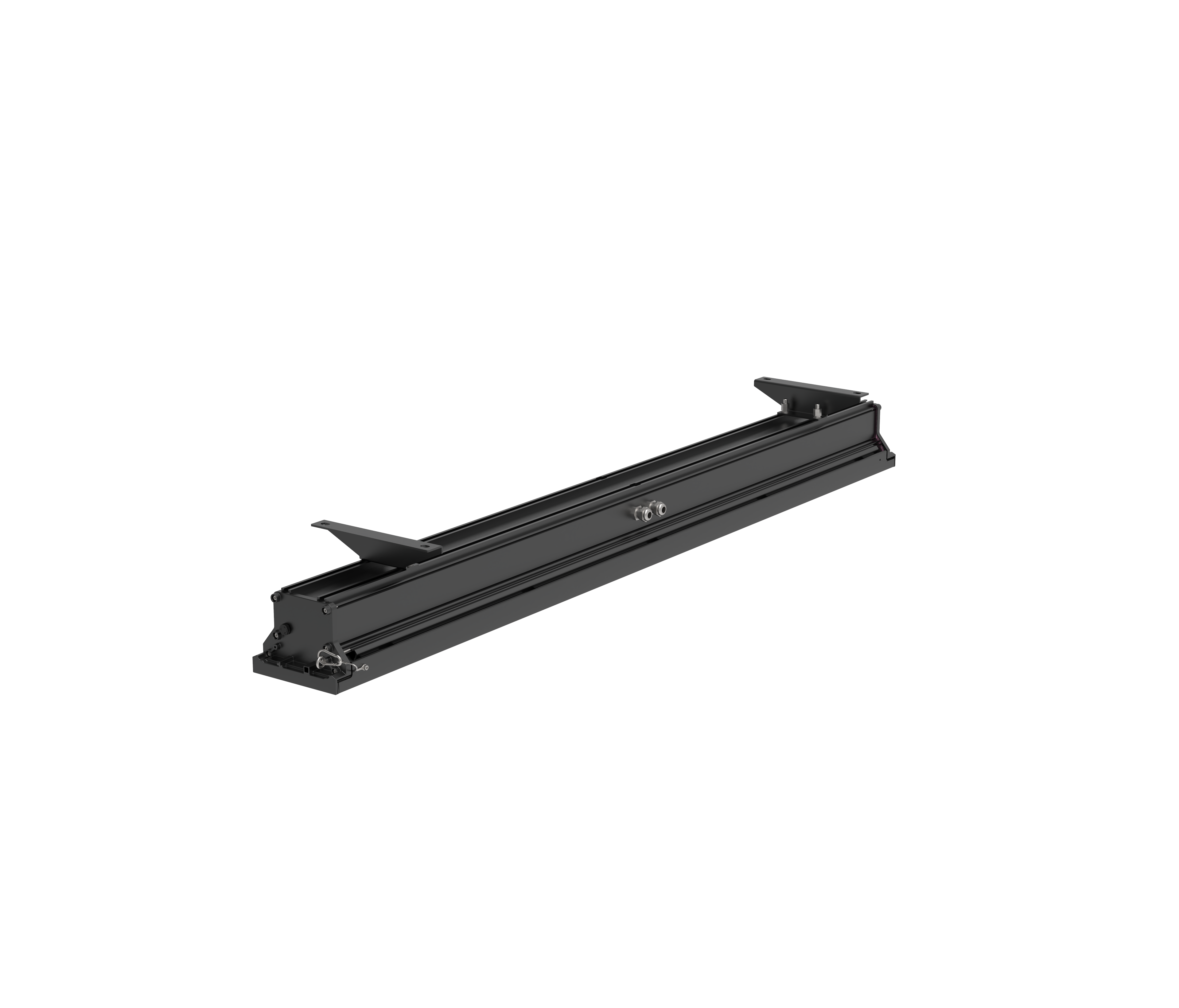

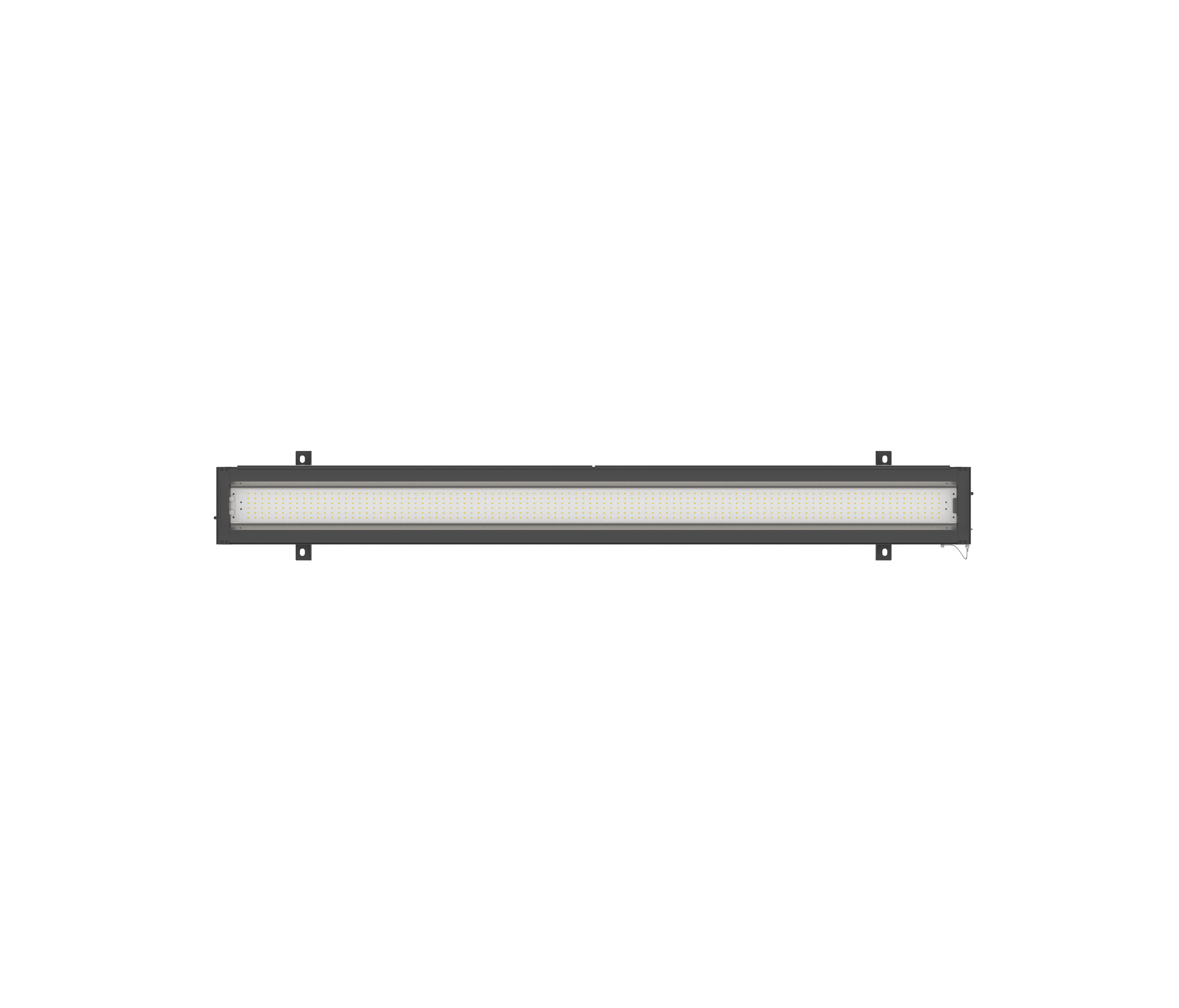

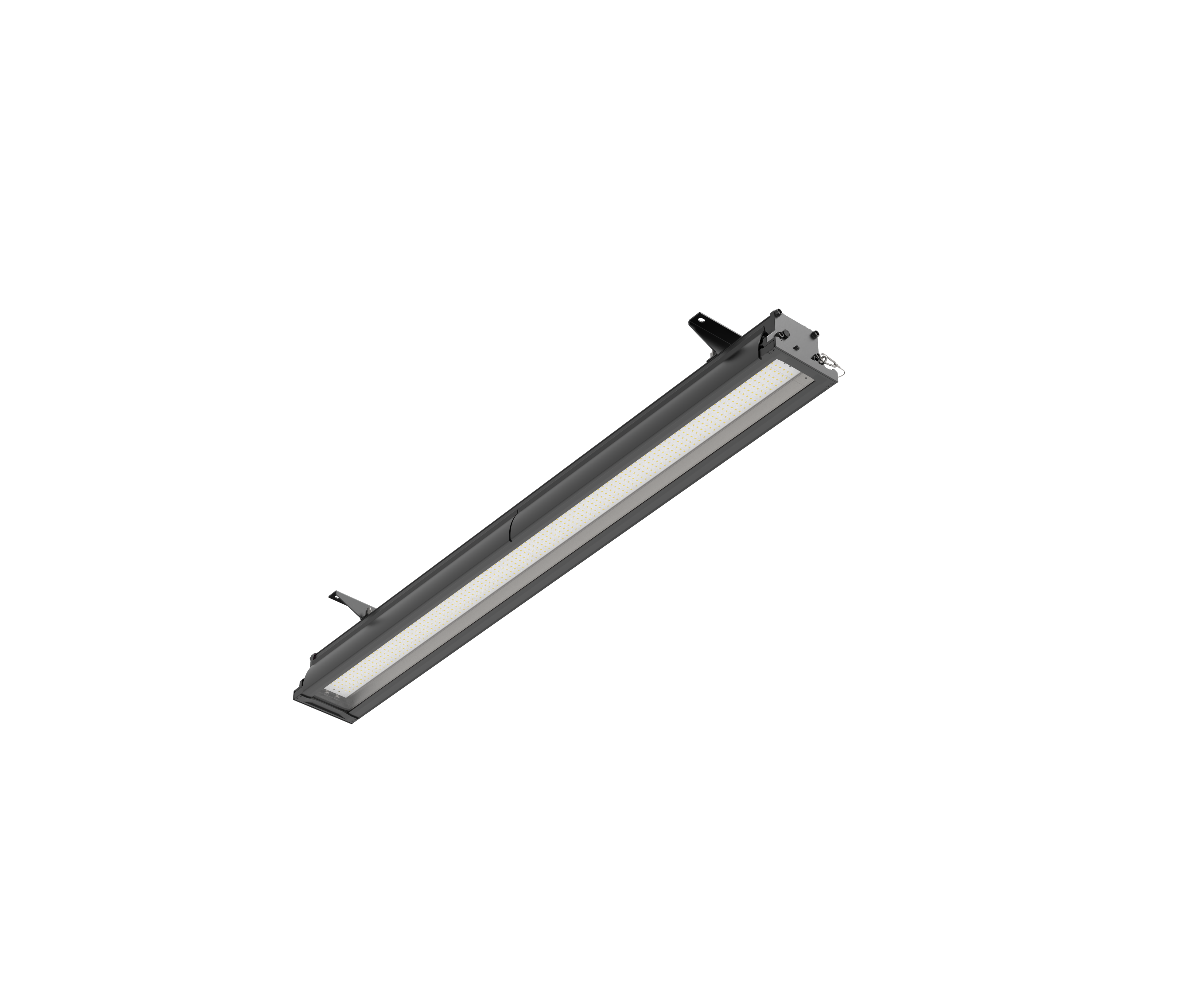

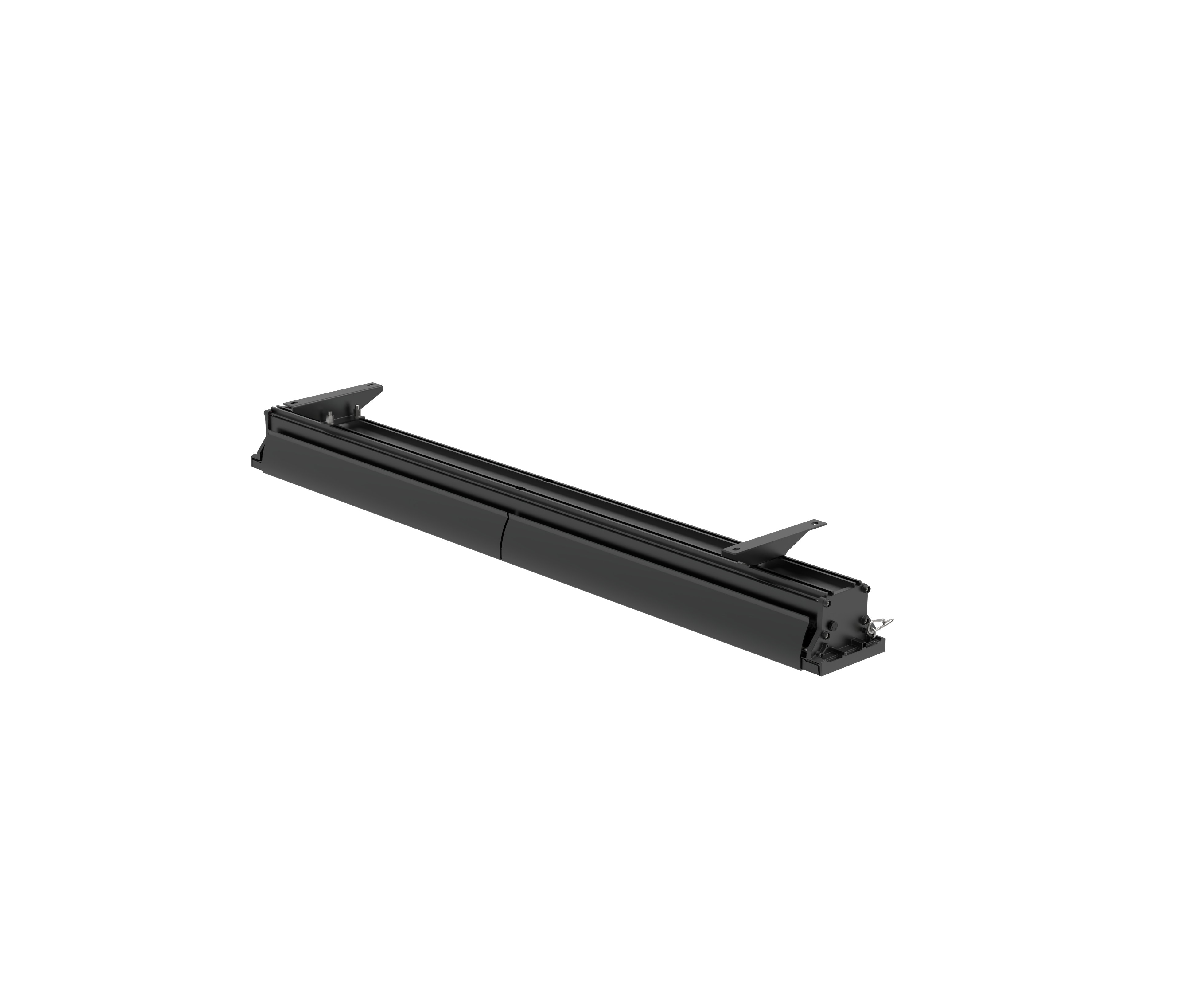

Mid-Range LED Tunnel Light

No.SD804

SD804 is a mid-range LED tunnel light (40-150W) with 150 lm/W efficacy. IP66/IK08 rated, 0-10V dimming, 3 beam options (30°/60°/90°), 100-277V input. Up to 22,500 lm. Top or wall mounting, 5-year warranty, 50,000-hour lifetime.

Download

View all downloads

SD804 — Mid-Range LED Tunnel Light

Mid-range tunnel light with IP66 and IK08 protection. Three beam options and dual-wattage models for standard tunnel and underpass applications.

Wattage	Lumens
40/70W	6,000-10,500 lm
100/150W	15,000-22,500 lm

Key Features

IP66 — High-pressure water jet protection
150 lm/W — High efficacy across all wattages
3 Beam Options — 30°/60°/90° for various tunnel types
Dual-Wattage — Reduces inventory requirements
Top/Wall Mount — Flexible installation
IK08 — Impact resistant for tunnel environments

Specifications

Parameter	Value
CRI	＞70
IP Rating	IP66
IK Rating	IK08
Dimming	0-10V
Color Temperature	3000K / 4000K / 5000K
Colors	Black
Beam Angle	30° / 60° / 90°
Input Voltage	100-277V
Operating Temp	-40℃ ~ 45℃
Warranty	5 Years
Lifetime	L70B50: 50,000 hrs @ 25℃
