Description

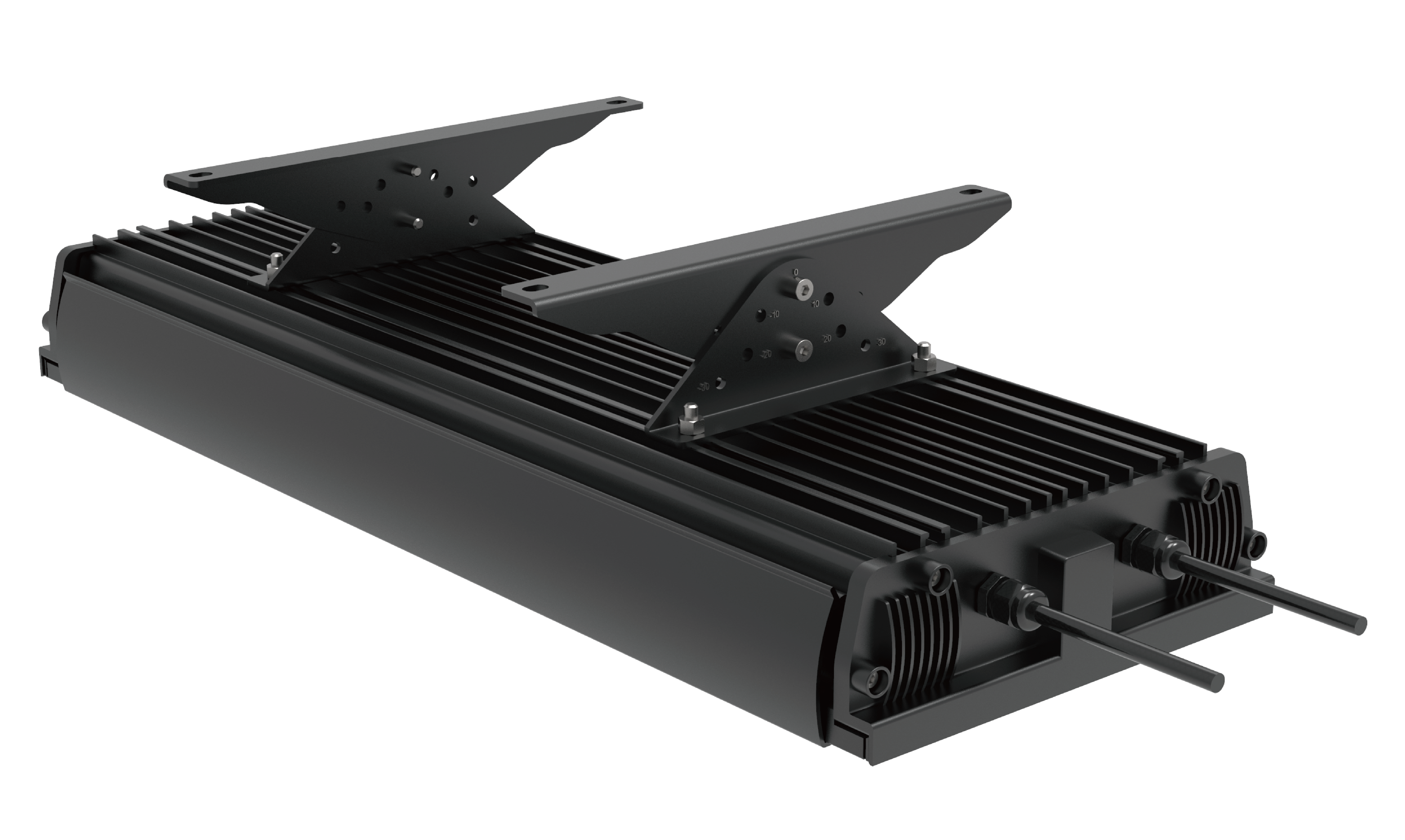

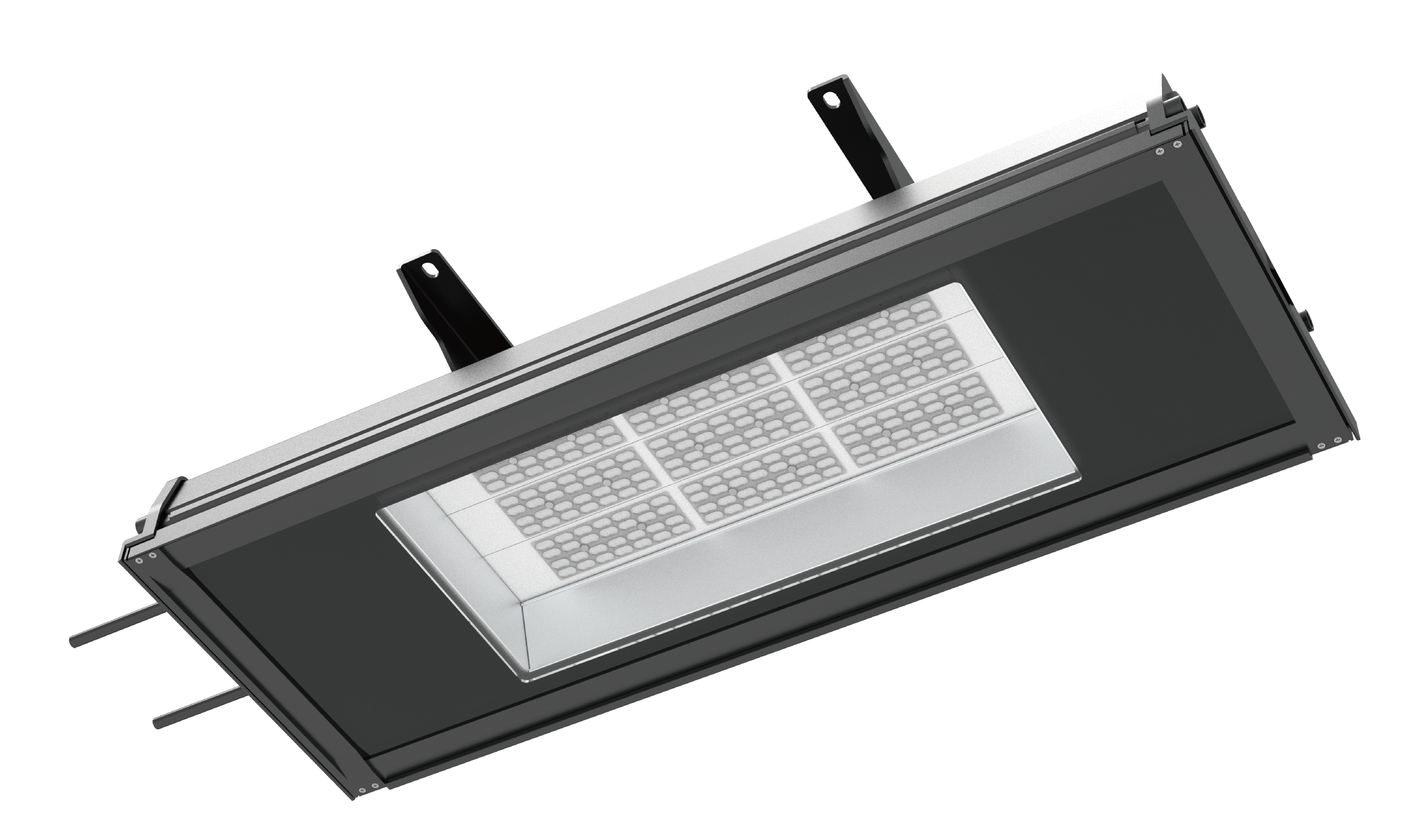

SD805 — High-Power Linear LED Tunnel Light

Linear tunnel light available in 1m and 1.5m lengths for continuous tunnel illumination. 100° beam for uniform wall-to-wall coverage. 220-240V input for markets outside North America.

Key Features

1m / 1.5m Lengths — Continuous linear runs for tunnels
100° Beam — Uniform illumination across tunnel width
IP66 — High-pressure water jet protection
140 lm/W — High efficacy linear fixture
IK08 — Impact resistant for tunnel environments
Top/Wall Mount — Flexible installation

Specifications

Parameter	Value
CRI	＞70
IP Rating	IP66
IK Rating	IK08
Dimming	0-10V
Wattage	10-50W
Efficacy	140 lm/W
Lumens	Up to 7,000 lm
Color Temperature	3000K / 4000K / 5000K
Beam Angle	100°
Input Voltage	220-240V
Dimension	1168 or 1568×226×198mm
Weight	13.46 or 17.06 kg
Operating Temp	-40℃ ~ 50℃
Warranty	5 Years
Lifetime	L70B50: 50,000 hrs @ 25℃
