SKYEYE II

No. GK502

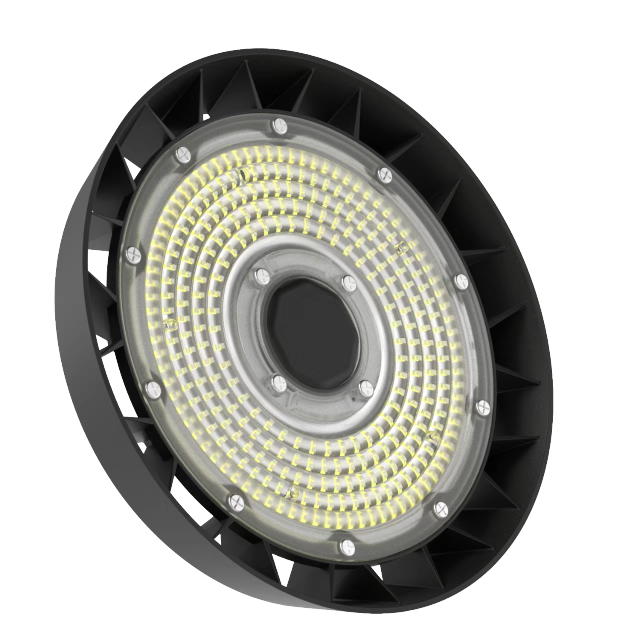

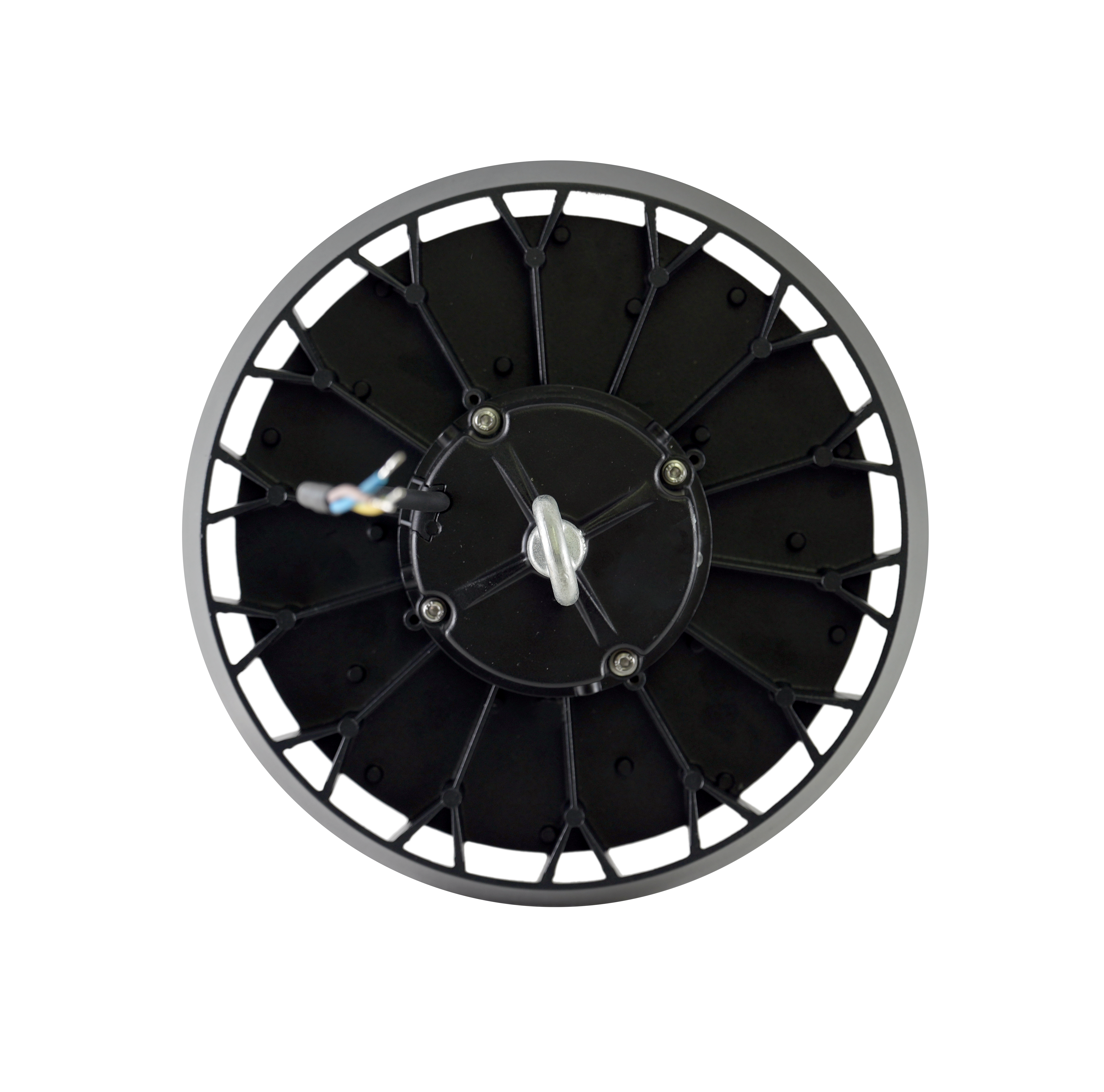

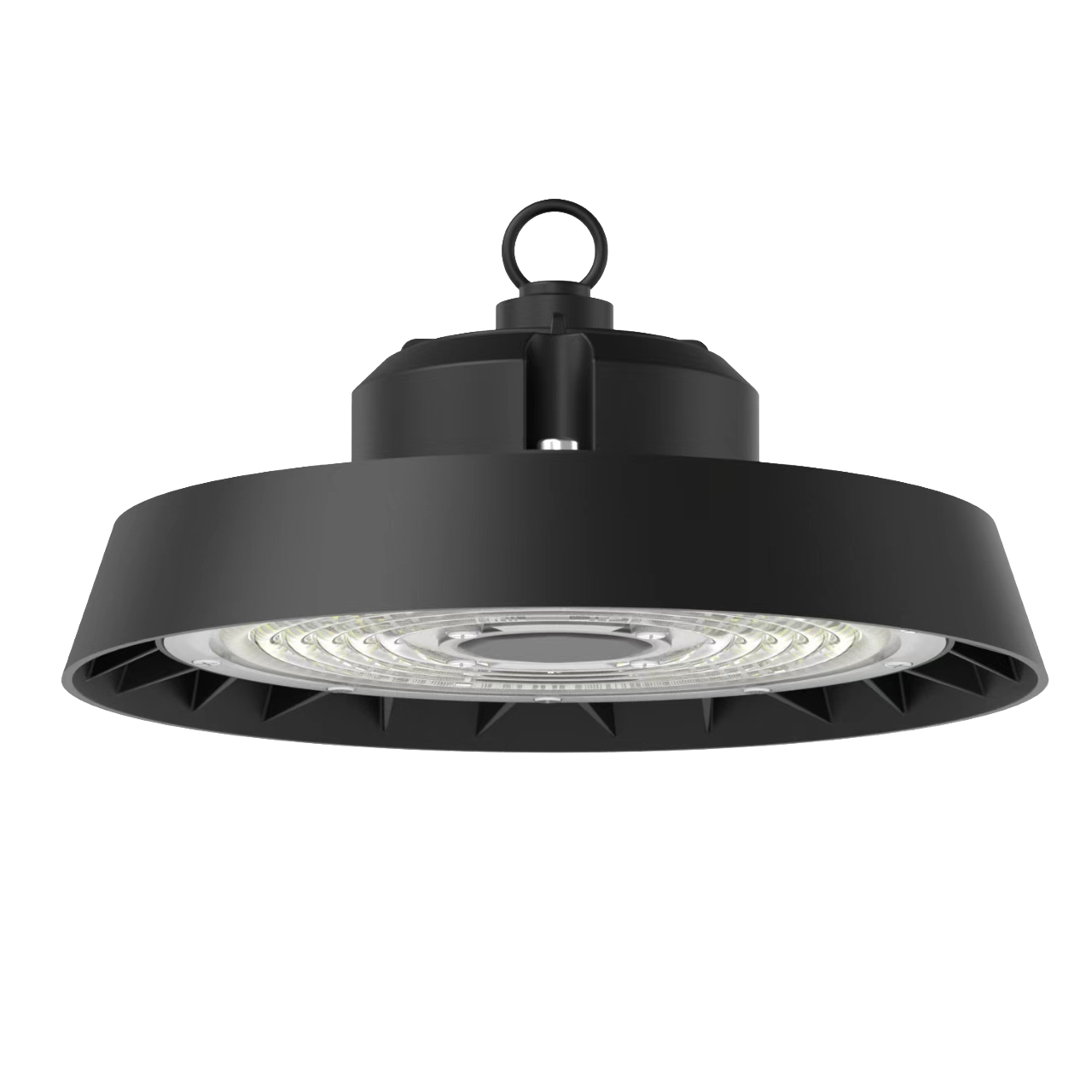

SKYEYE II is a UFO LED high bay with high-efficacy upgrade option, delivering 130 lm/W standard (up to 180 lm/W). Available in 100W, 150W, and 200/240W models. IP65/IK08 rated with 0-10V/DALI dimming, 4000K, 6KV surge protection, and dual input voltage (120-277/220-240V). Supports PIR and Microwave sensor options. Three beam angles and three finishes. 50,000-hour lifetime, 5-year warranty.

Download

View all downloads

SKYEYE II — UFO LED High Bay

Performance-upgradable UFO high bay with efficacy up to 180 lm/W for projects demanding maximum energy savings. Standard 130 lm/W with high-efficiency upgrade path. Microwave sensor option adds occupancy detection for automated energy management.

Model	Wattage	Efficacy	Lumens	Surge Protection	Input Voltage
GK502/100W	100W	130 (up to 180) lm/W	13,000 (up to 18,000) lm	6KV	120-277/220-240V
GK502/150W	150W	130 (up to 180) lm/W	19,500 (up to 27,000) lm	6KV	120-277/220-240V
GK502/200-240W	200/240W	130 (up to 180) lm/W	26,000/31,200 (up to 36,000/43,200) lm	6KV	120-277/220-240V

Key Features

Up to 180 lm/W — High-efficacy upgrade option for maximum energy savings
Dual Sensor Support — PIR Light Control and Microwave sensor options
3 Beam Angles — 60°/90°/120° selectable
Dual Dimming — 0-10V and DALI
6KV Surge Protection
3 Finishes — Black, White, Bronze

Specifications

Parameter	Value
CRI	＞80
IP Rating	IP65
IK Rating	IK08
Dimming	0-10V / DALI
Color Temperature	4000K
Mounting	Chain / Pole Mount, Wall Mount with Bracket
Operating Temp	-30℃ ~ 45℃
Sensor	PIR / Microwave (Optional)
Warranty	5 Years
Lifetime	L70B50: 50,000 hrs @ 25℃

Applications
Warehouses · Manufacturing Plants · Distribution Centers · Gymnasiums
