Compact high-efficacy UFO high bay designed for international markets. Delivers 150 lm/W standard with upgrade path to 170 lm/W. Two beam angle options for focused or wide-area illumination.
| Model | Wattage | Efficacy | Lumens | Surge Protection | Input Voltage |
|---|---|---|---|---|---|
| GK522/96W | 96W | 150 (up to 170) lm/W | 14,400 lm | 4KV | 220-240V |
| GK522/140W | 140W | 150 (up to 170) lm/W | 21,000 lm | 4KV | 220-240V |
| GK522/187W | 187W | 150 (up to 170) lm/W | 28,000 lm | 4KV | 220-240V |
| Parameter | Value |
|---|---|
| CRI | ＞80 |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Dimming | 0-10V / DALI |
| Color Temperature | 4000K |
| Colors | Gray |

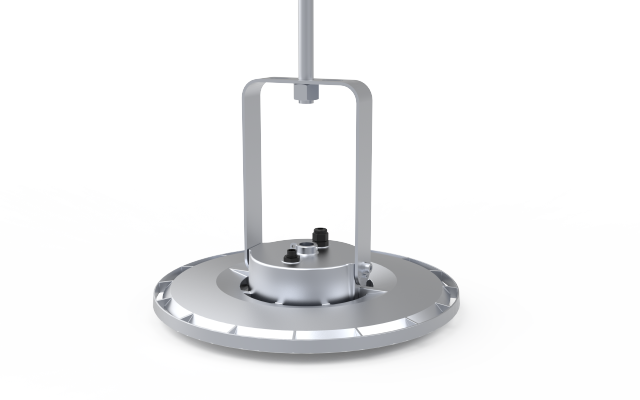

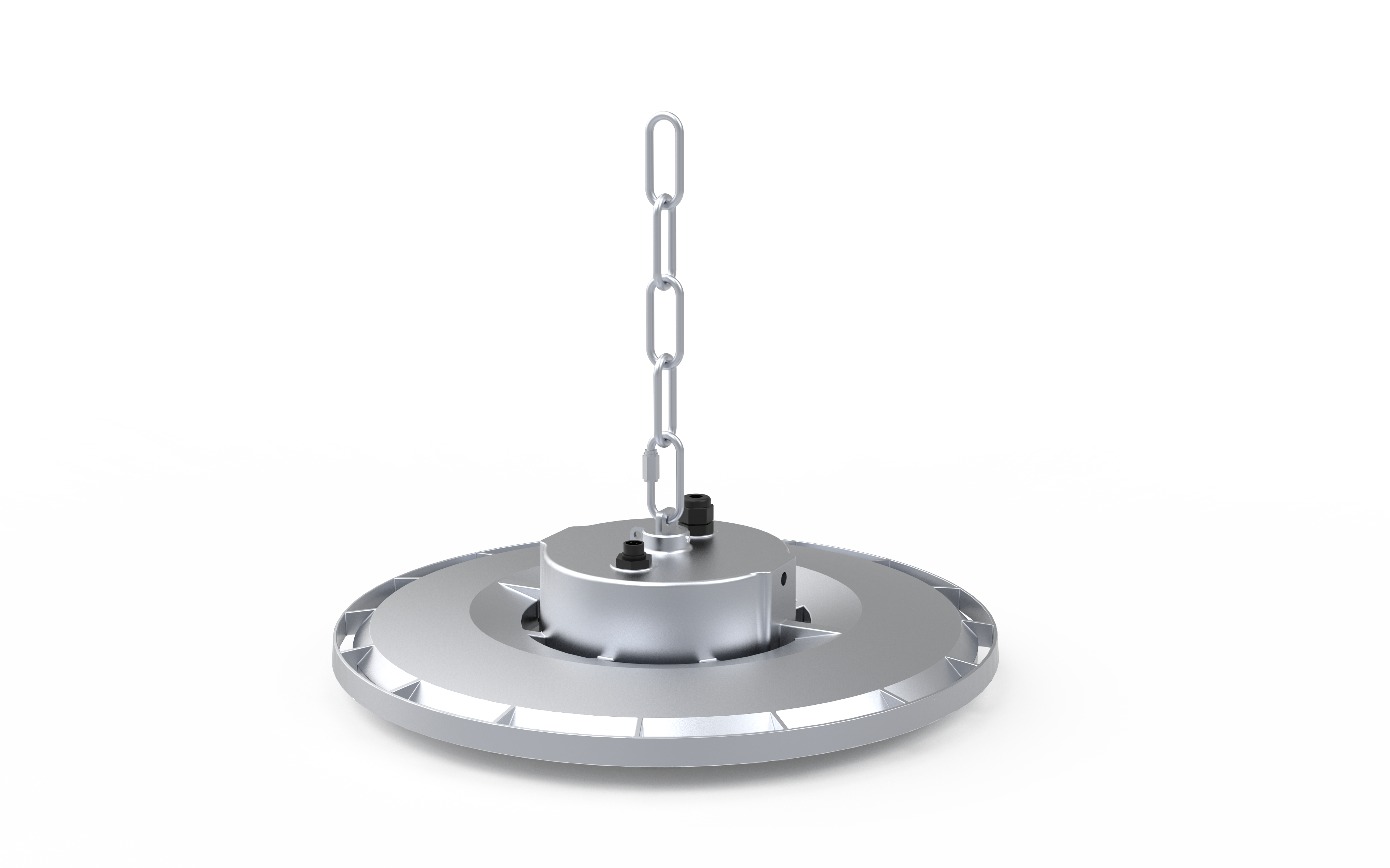

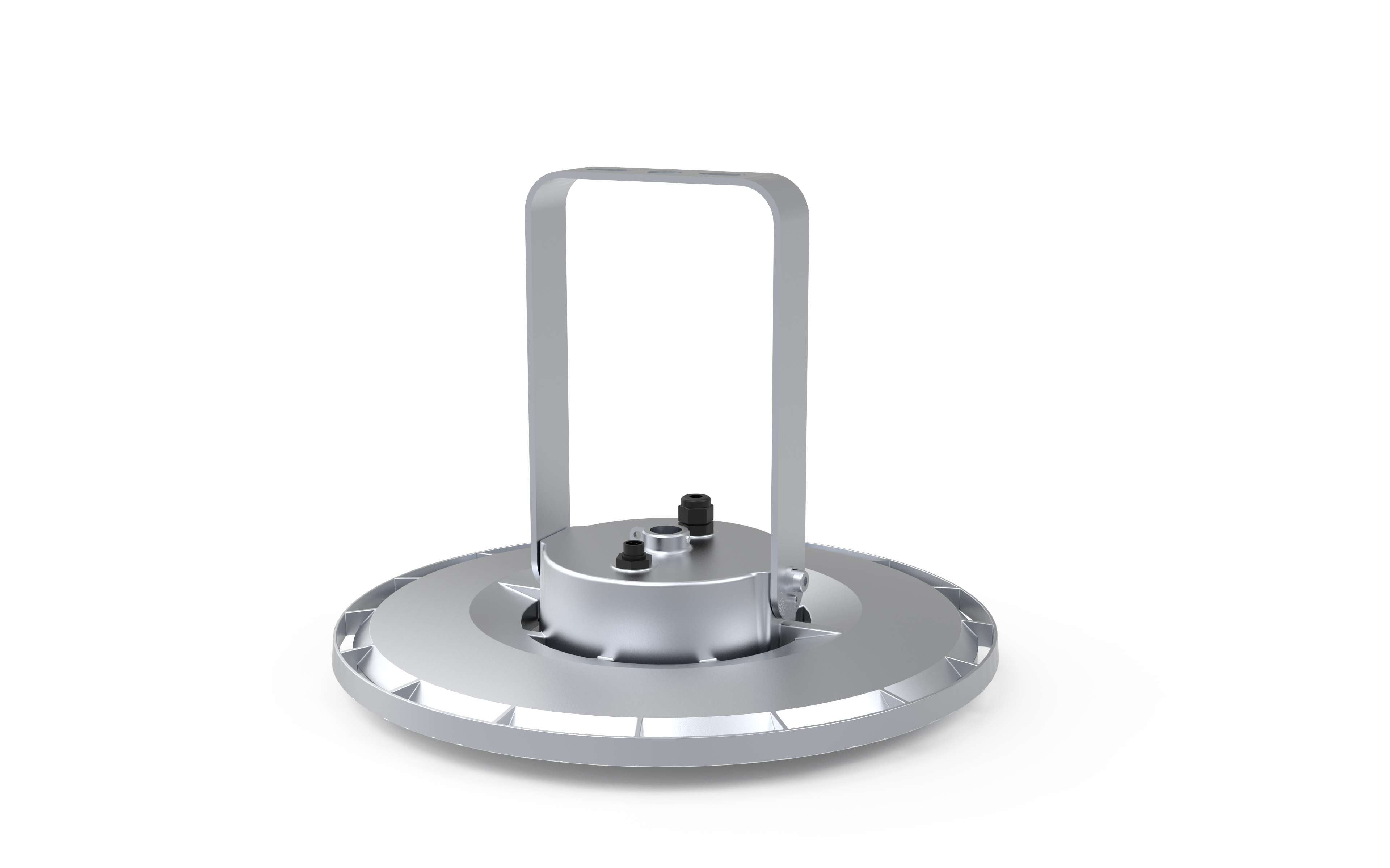

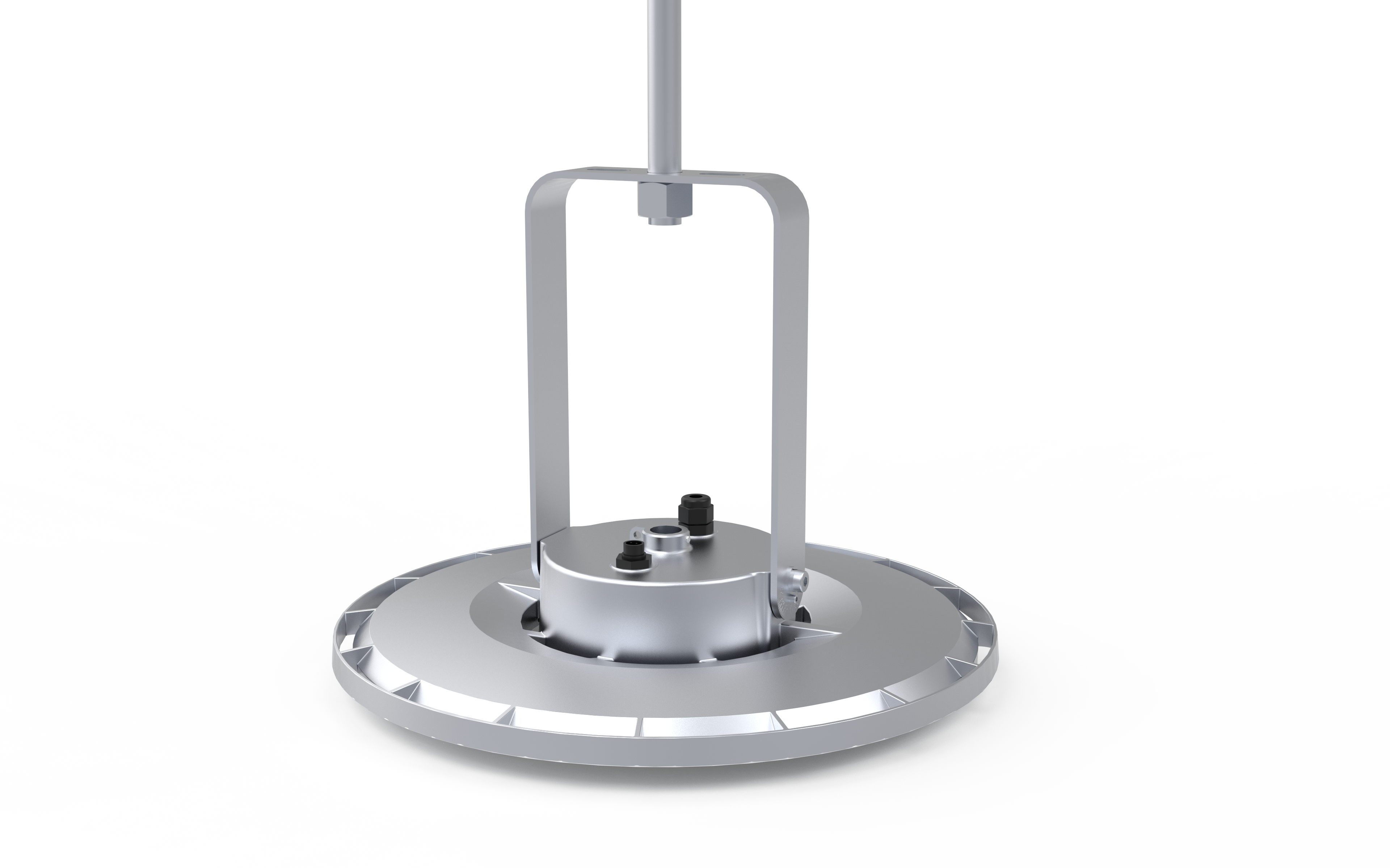

| Mounting | Chain / Pole Mount, Wall Mount with Bracket |
| Operating Temp | -30℃ ~ 45℃ |
| Sensor | PIR Light Control (Optional) |
| Warranty | 5 Years |
| Lifetime | L70B50: 50,000 hrs @ 25℃ |
⚠ Note: 220-240V input only — not for North American market.
Applications
International Warehouses · Factories · Industrial Facilities (Non-North America)
