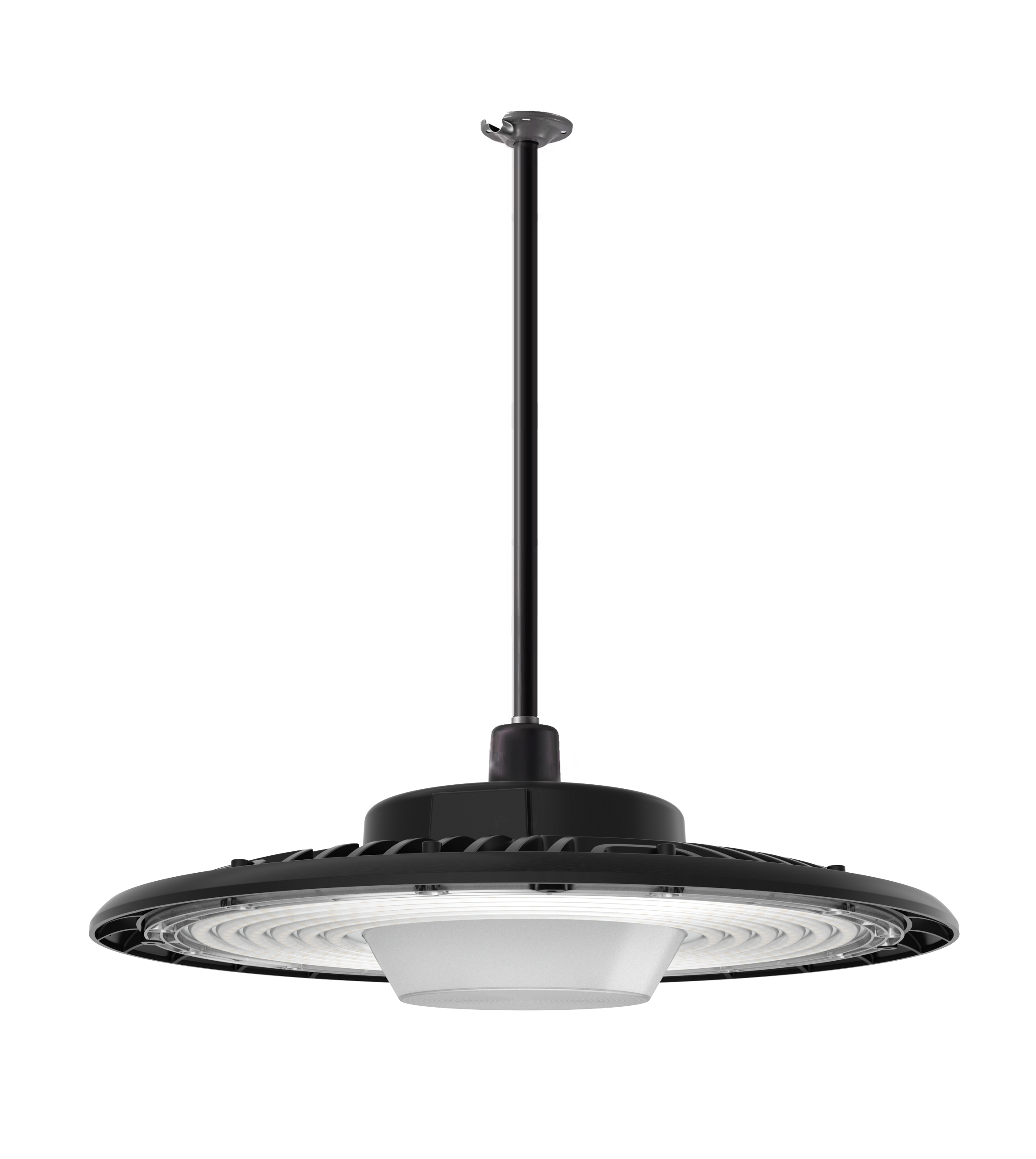

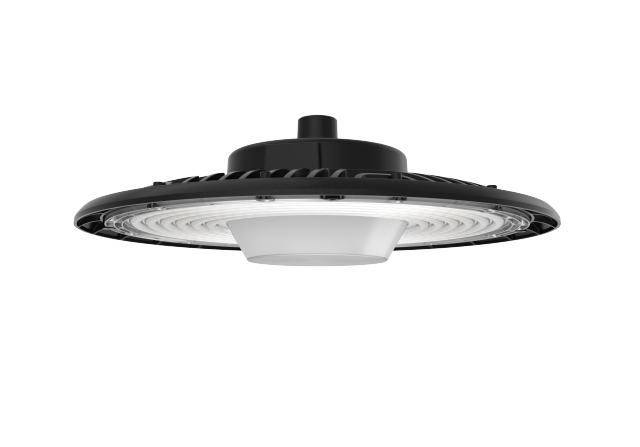

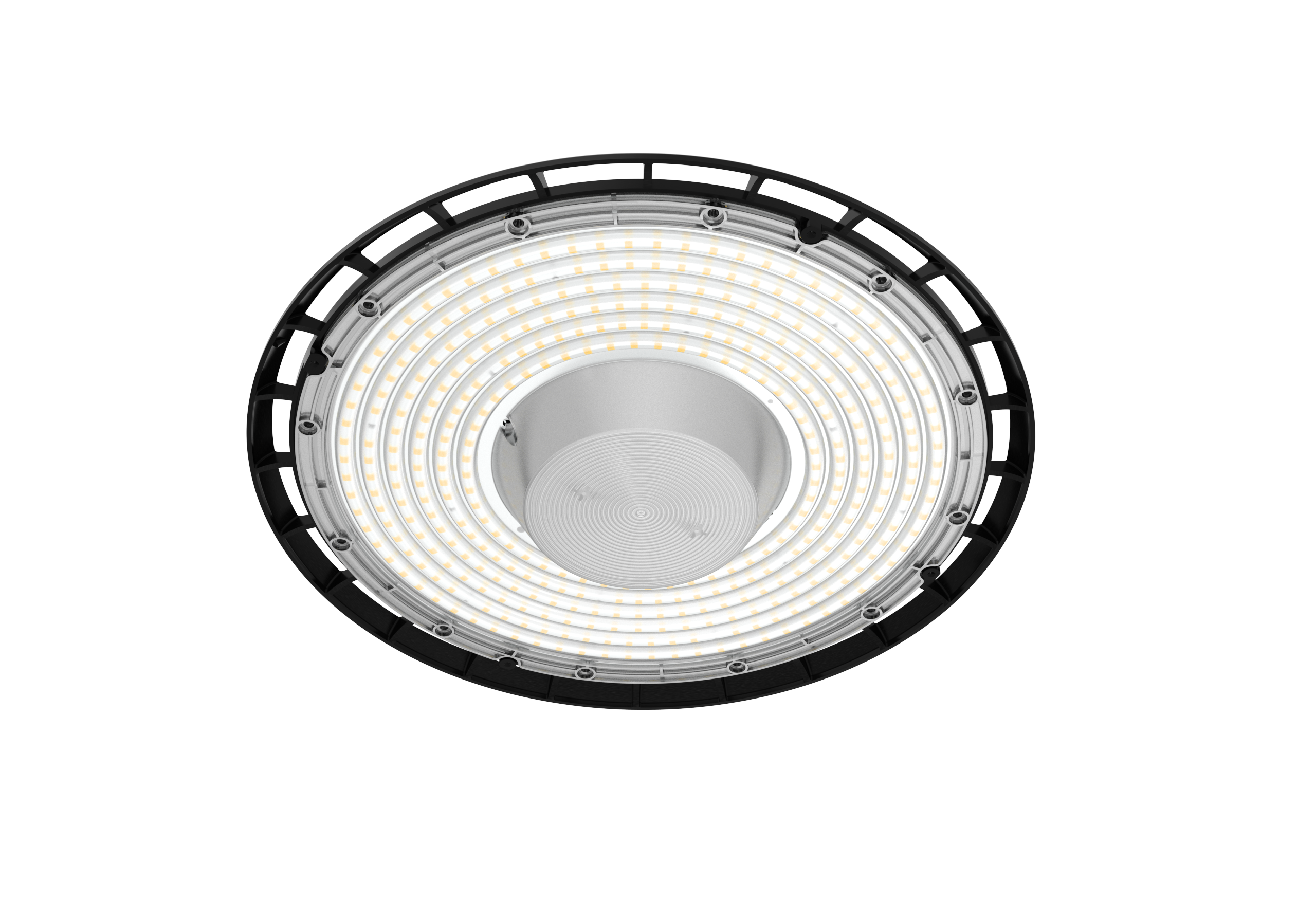

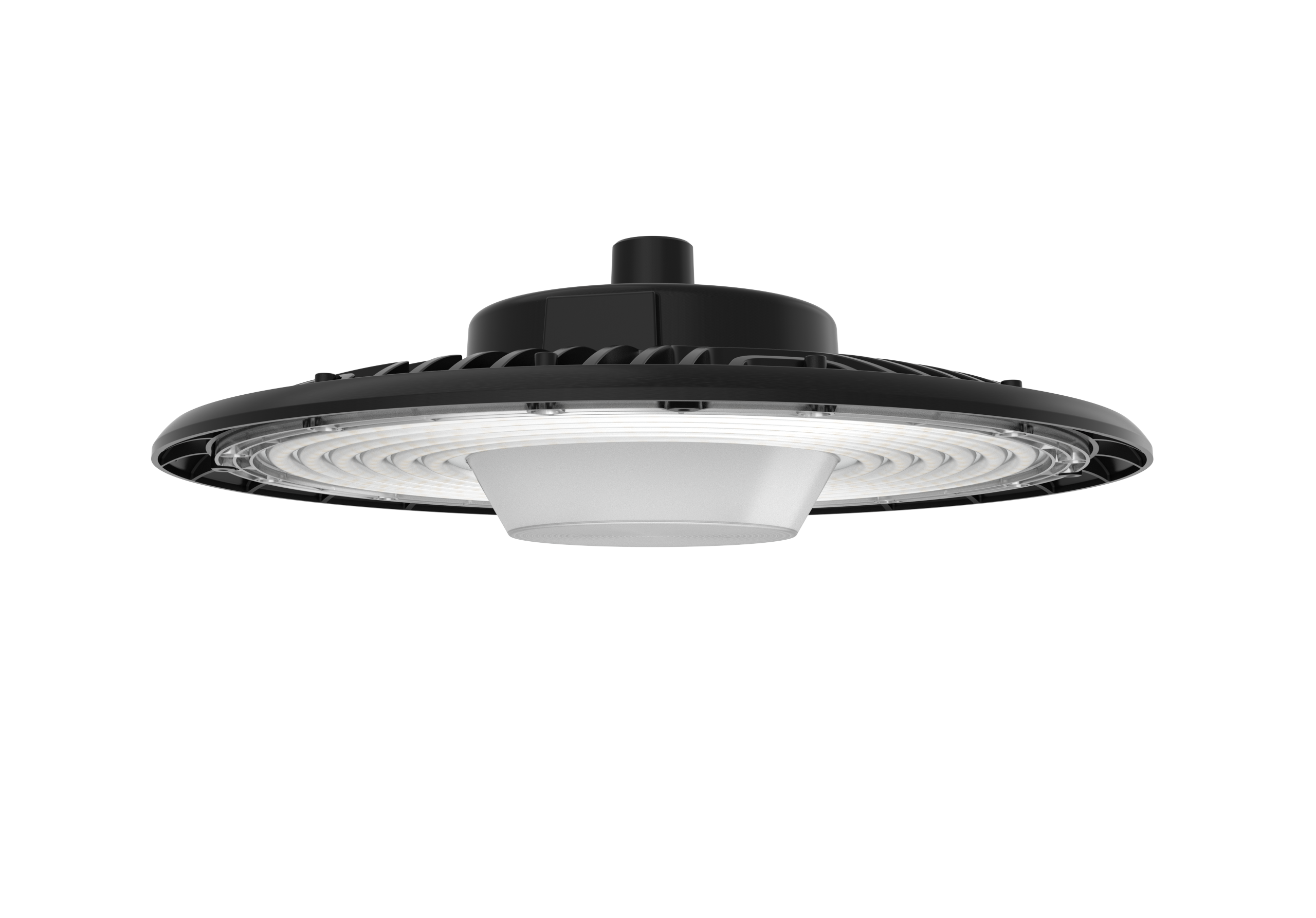

UFO HIGH BAY - SKYEYE VIII

No.GK520

SKYEYE VIII is a compact UFO LED high bay with high-efficacy upgrade option, delivering 130 lm/W standard (up to 180 lm/W). Available in 100W, 150W, and 200W with 3 CCT options (3000K/4000K/5000K). IP65/IK08 rated, 0-10V/DALI dimming, 4KV surge protection, 120-277V input. Slim profile design with only 99mm height. PIR and Microwave sensor options. 50,000-hour lifetime, 5-year warranty.

Download

View all downloads

SKYEYE VIII — UFO LED High Bay

Low-profile UFO high bay at just 99mm height — ideal for installations with limited ceiling cavity space. Supports efficacy upgrade to 180 lm/W and offers 3 CCT options for on-site flexibility.

Model	Wattage	Efficacy	Lumens	Surge Protection	Input Voltage
GK520/100W	100W	130 (up to 180) lm/W	13,000 (up to 18,000) lm	4KV	120-277V
GK520/150W	150W	130 (up to 180) lm/W	19,500 (up to 27,000) lm	4KV	120-277V
GK520/200W	200W	130 (up to 180) lm/W	26,000 (up to 36,000) lm	4KV	120-277V

Key Features

Slim Profile — Only 99mm height, fits tight ceiling spaces
Up to 180 lm/W — High-efficacy upgrade available
3 CCT Options — 3000K / 4000K / 5000K selectable
Dual Sensor Support — PIR and Microwave options
3 Beam Angles — 60°/90°/120°
3 Finishes — Black, White, Bronze

Specifications

Parameter	Value
CRI	＞80
IP Rating	IP65
IK Rating	IK08
Dimming	0-10V / DALI
Color Temperature	3000K / 4000K / 5000K
Mounting	Chain / Pole Mount, Wall Mount with Bracket
Operating Temp	-30℃ ~ 45℃
Sensor	PIR / Microwave (Optional)
Warranty	5 Years
Lifetime	L70B50: 50,000 hrs @ 25℃
