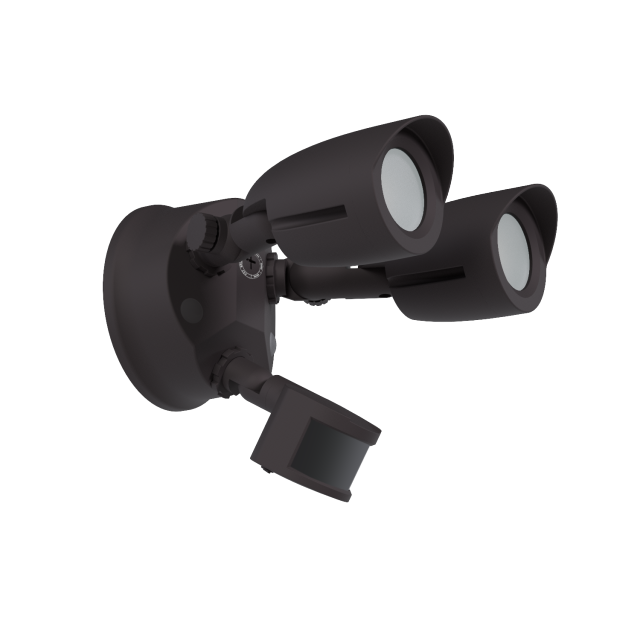

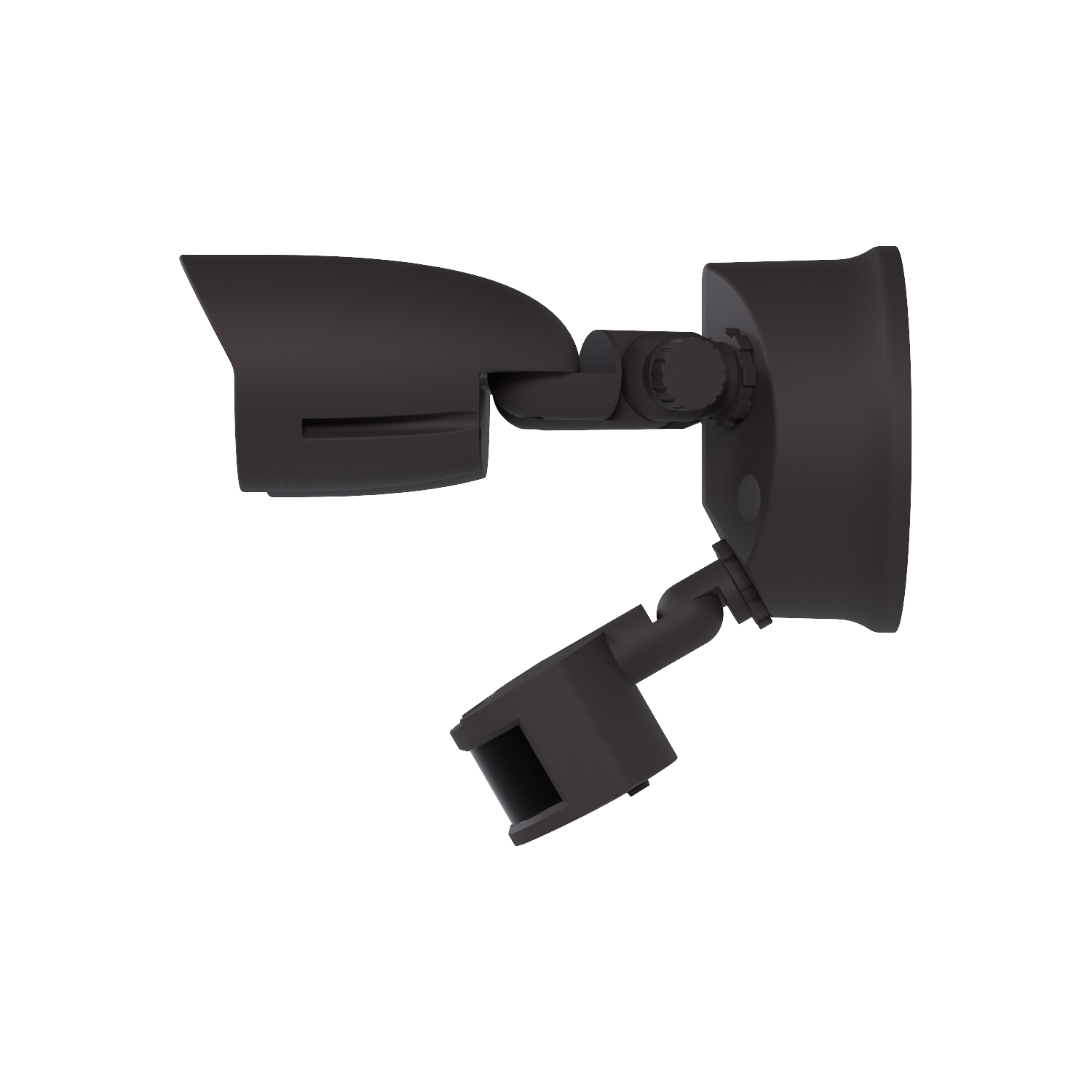

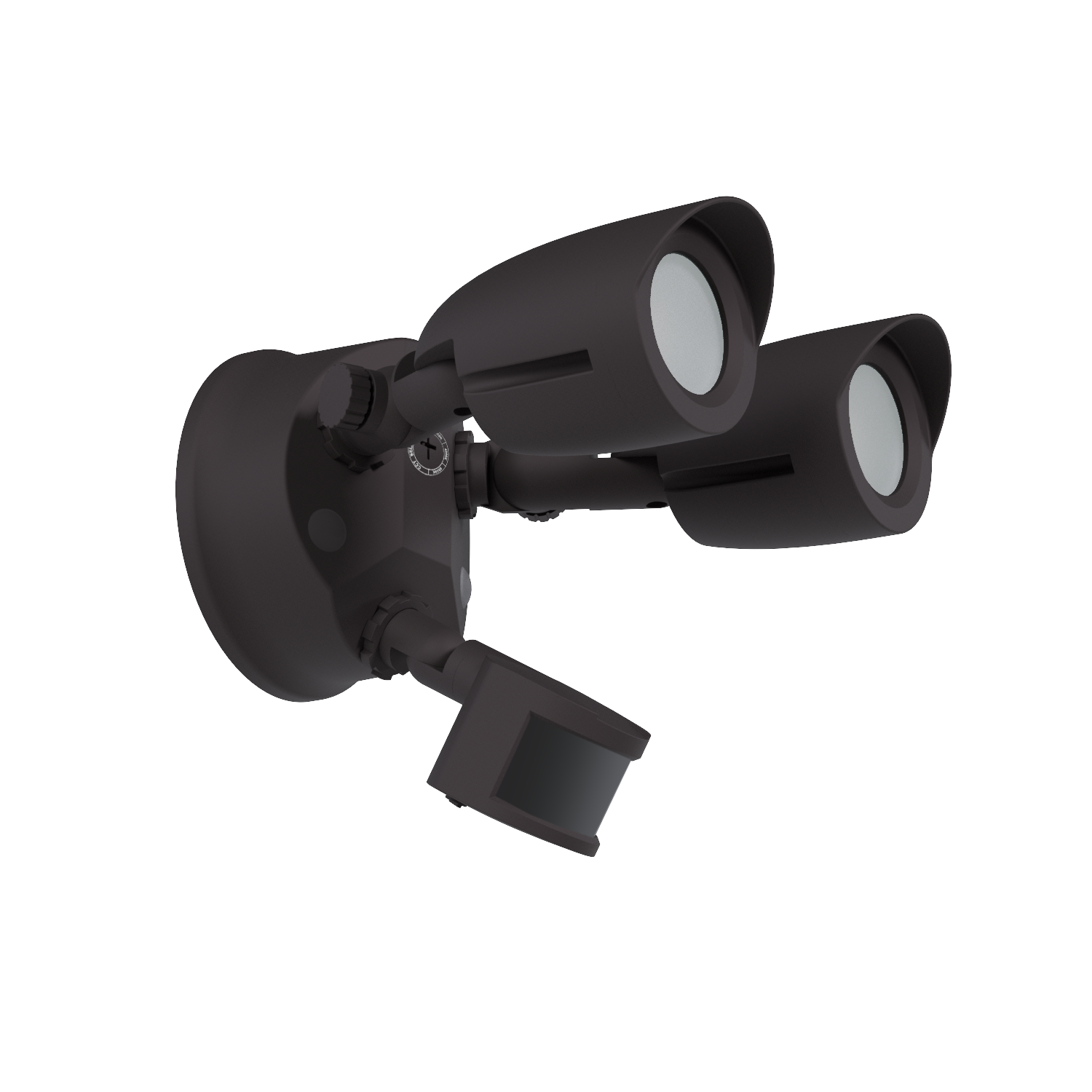

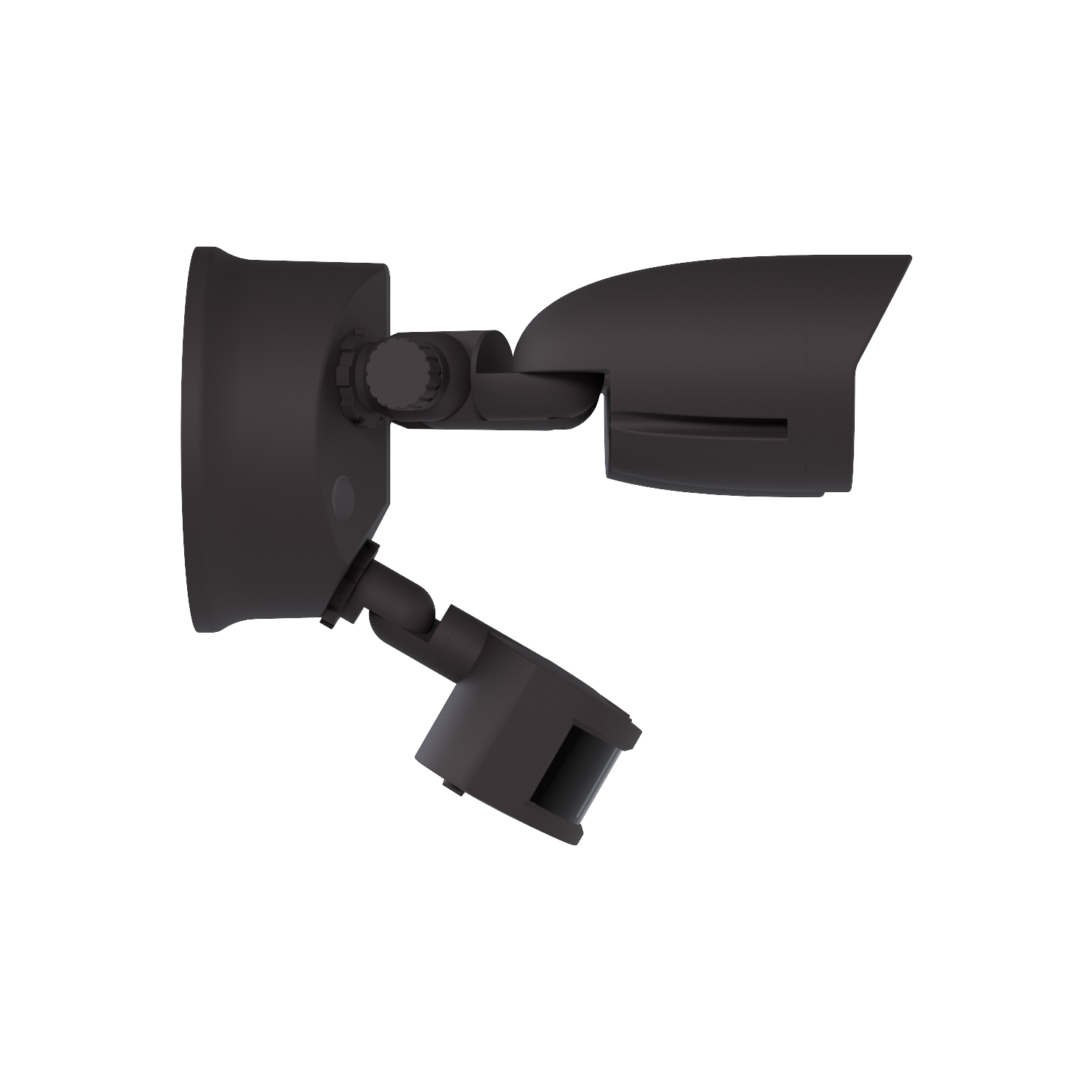

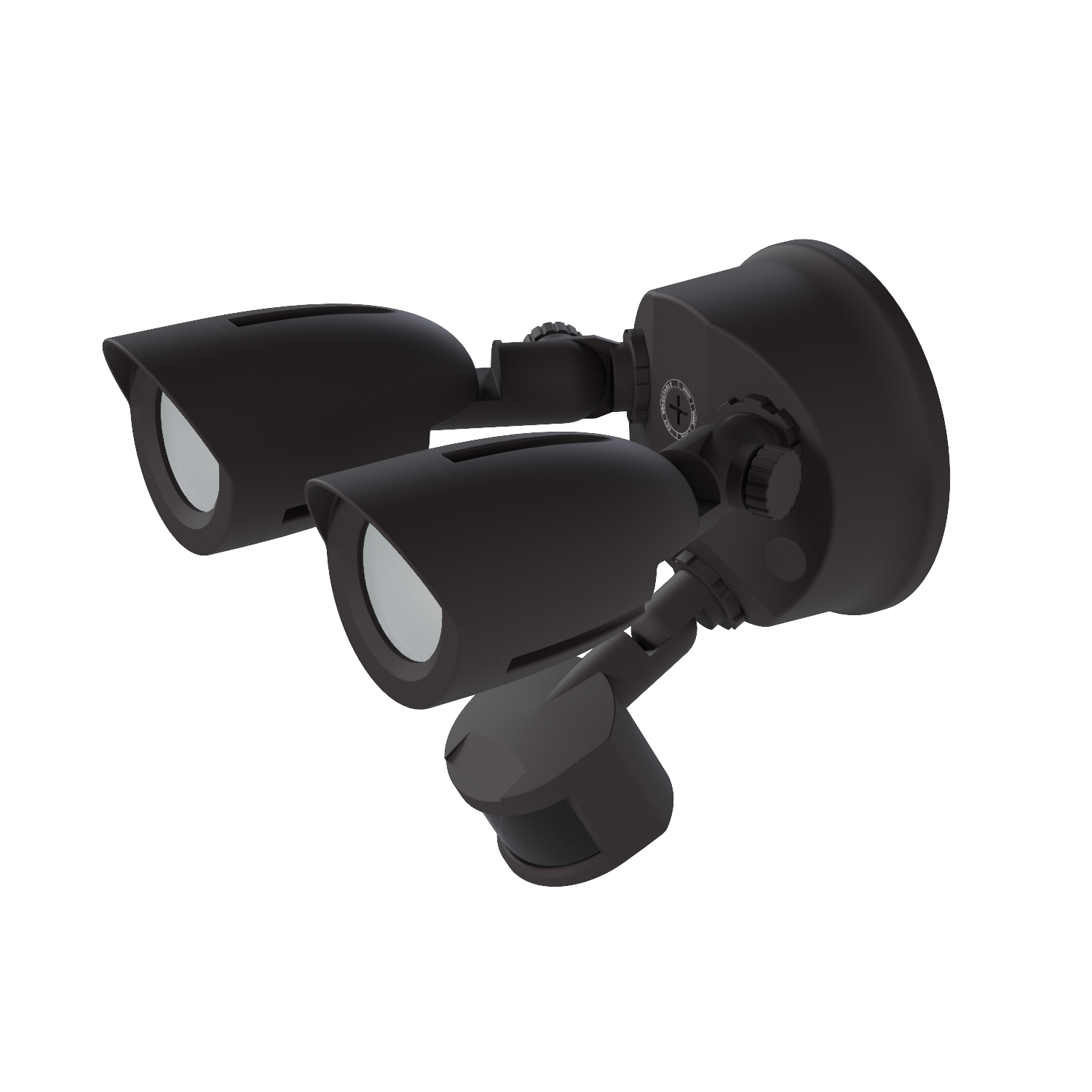

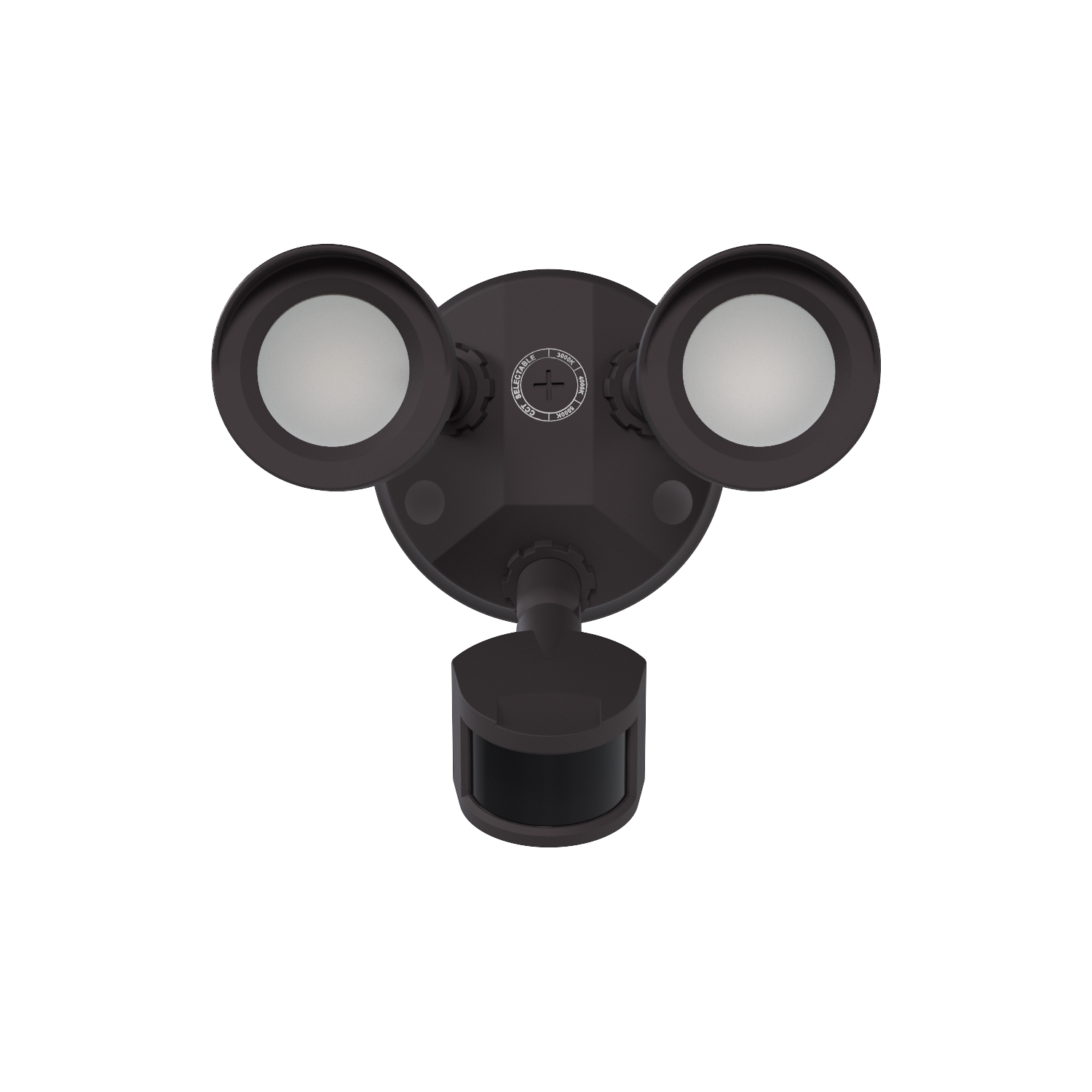

Focused security light with PIR motion sensor and 360° adjustable lens hood. Two versions: standard (without sensor rotation) and SEN (with 180° sensor rotation). Wall or J-box mounting for flexible installation.
| Model | Sensor Rotation | Lens Rotation | Input Voltage |
|---|---|---|---|
| WLR04/20/8S3/YY | — | — | 120-277V |
| WLR04/20/8S3/YY/SEN | 180° | 360° | 120V |
| Parameter | Value |
|---|---|
| CRI | ＞80 |
| IP Rating | IP65 |
| IK Rating | IK06 |
| Wattage | 20W |
| Efficacy | 85 lm/W |
| Lumens | 1,700 lm |
| Color Temperature | 3000K / 4000K / 5000K |
| Colors | Black / White / Bronze |
| Beam Angle | 50° |
| Surge Protection | ＞2KV |
| Sensor | PIR Motion Sensor |
| Mounting | Wall / J-Box |
| Operating Temp | -40℃ ~ 50℃ |
| Dimension | 206.1×225.8×160.6mm (8.11"×8.9"×6.32") |
| Weight | 1.2 kg / 2.65 lb |
| Warranty | 5 Years |
| Lifetime | L70B50: 100,000 hrs @ 25℃ |
Entrances · Walkways · Driveways · Building Perimeters · Residential Security
