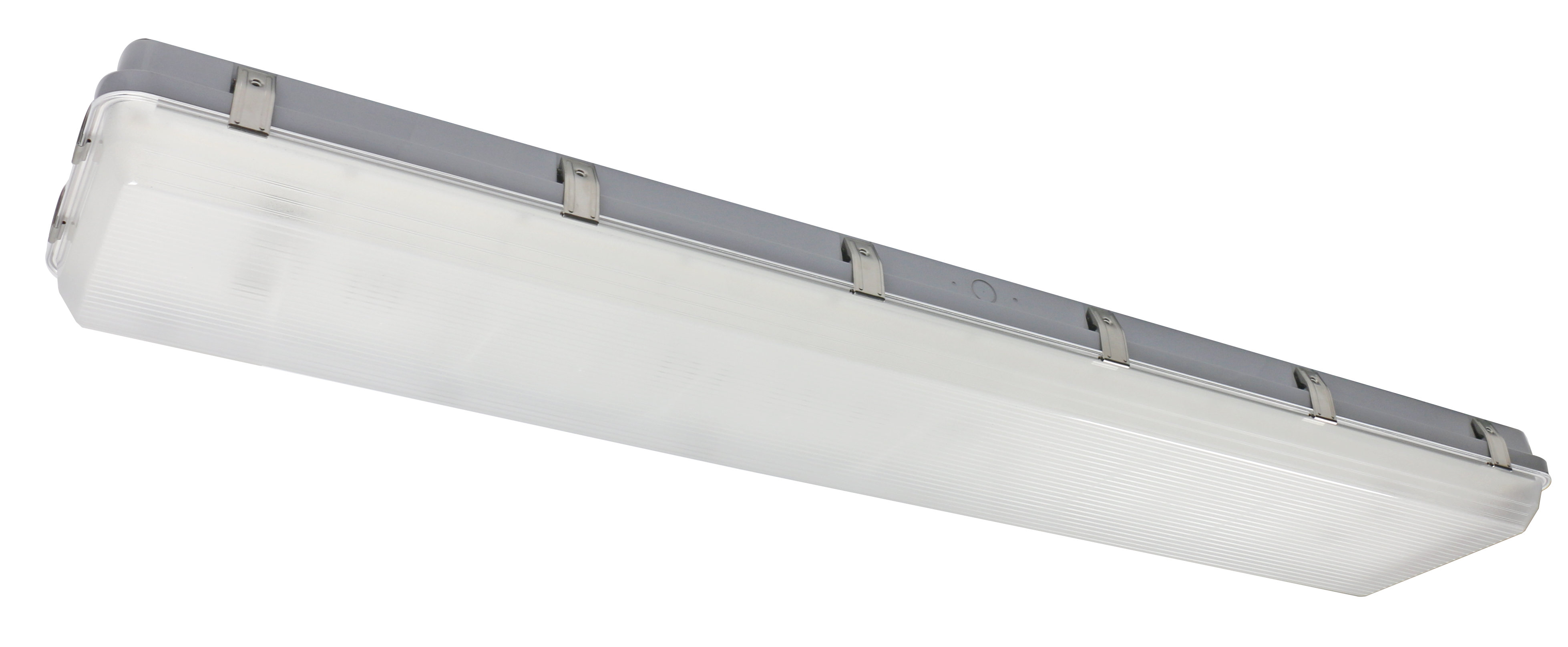

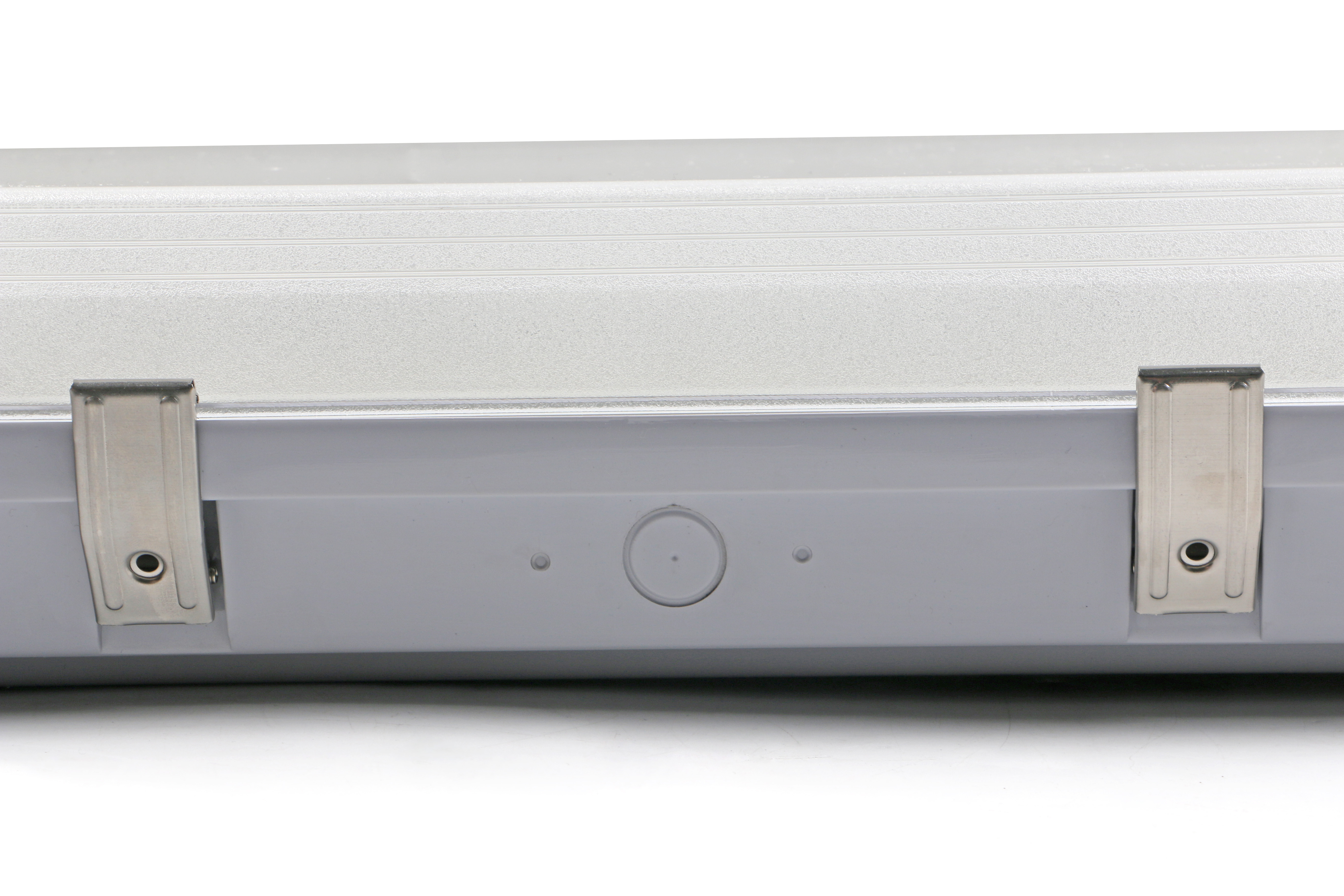

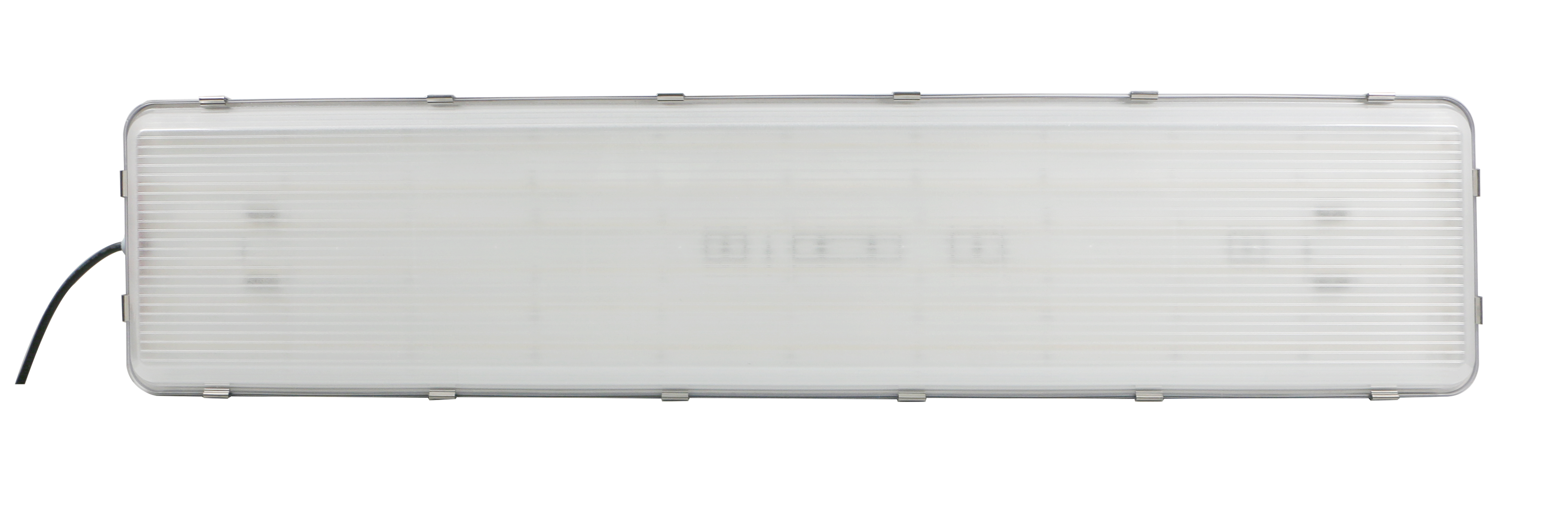

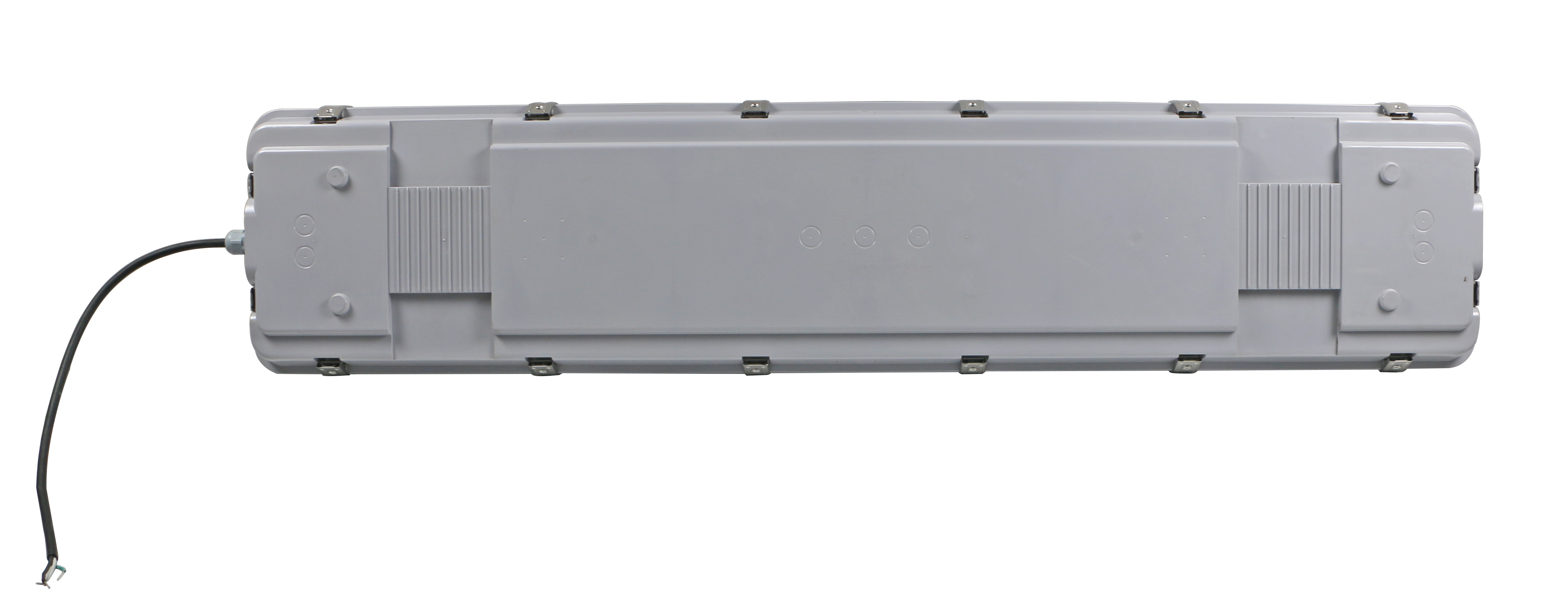

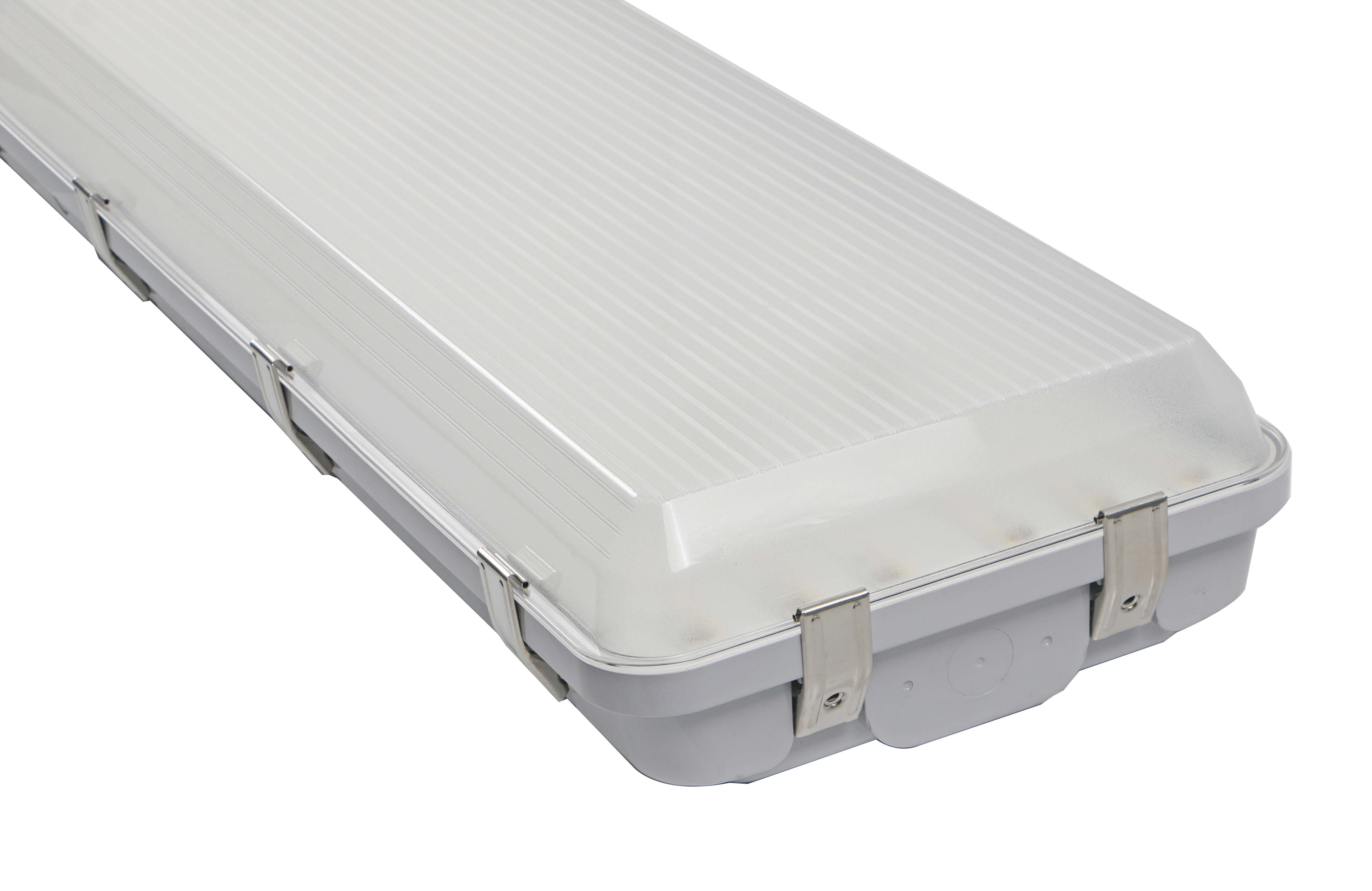

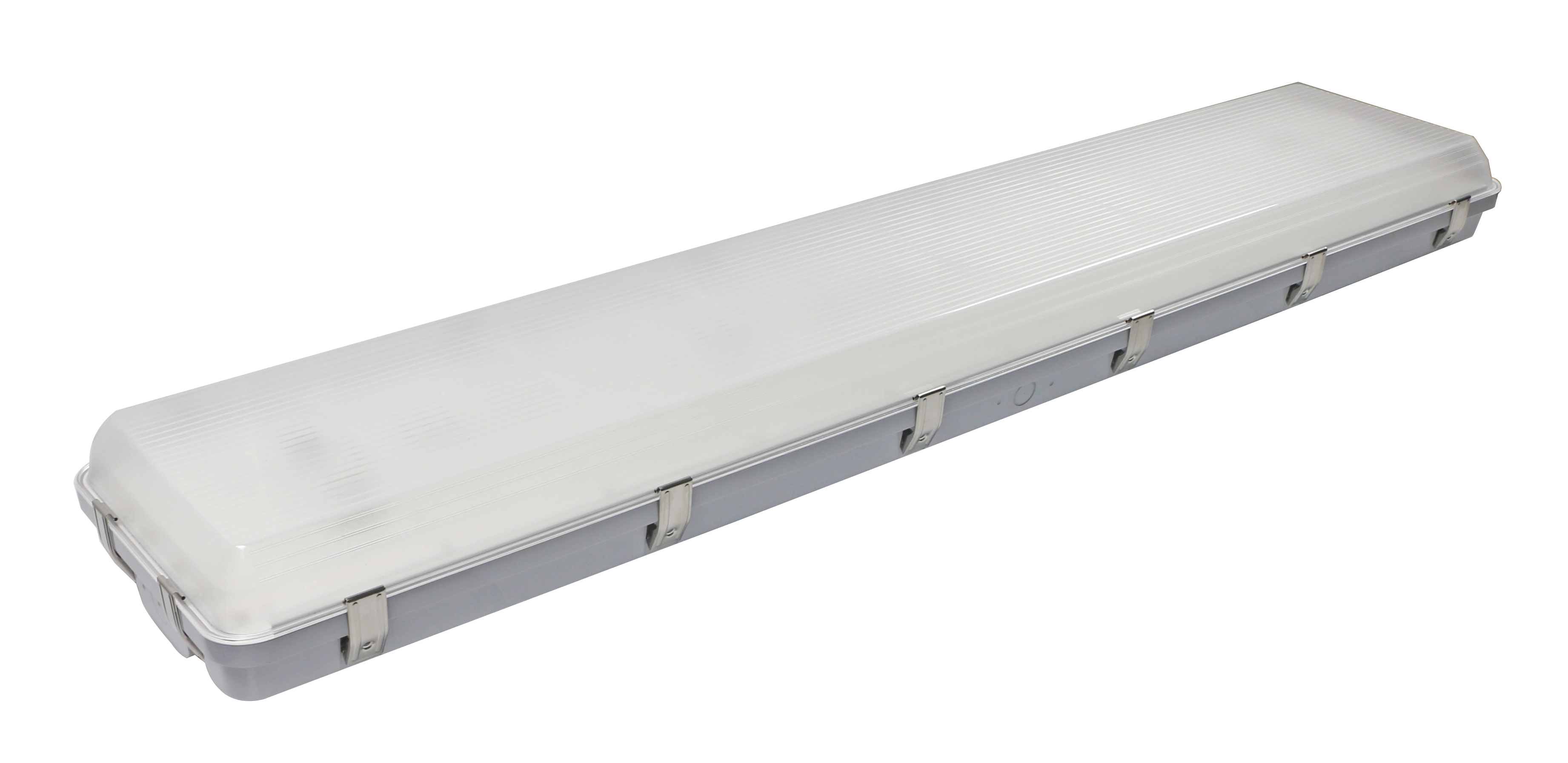

IP66 vapor tight linear LED light with switchable wattage and 3 adjustable CCT for wet, corrosive industrial environments.
| Model | Wattage | Efficacy | Fixture Flux | Surge Protection | Beam Angle | Input Voltage | Dimension(LWH) | Weight |
|---|---|---|---|---|---|---|---|---|
| VTL07/150/SW/8S3/FR/48/347 | ADJ 90/120/150W | 160 lm/W | 14400/19200/24000 lm | >6KV | 120° | 120-347V | 1242266115mm / 48.910.474.53" | 5.48KG / 12.08LB |
| VTL07/200/SW/8S3/FR/48/347 | ADJ 120/160/200W | 160 lm/W | 19200/25600/32000 lm | >6KV | 120° | 120-347V | 1242266115mm / 48.910.474.53" | 5.48KG / 12.08LB |
| VTL07/240/SW/8S3/FR/48/347 | ADJ 160/190/240W | 160 lm/W | 25600/30400/38400 lm | >6KV | 120° | 120-347V | 1242266115mm / 48.910.474.53" | 5.48KG / 12.08LB |
| Parameter | Value |
|---|---|
| CRI | >80 |
| IP Degree | IP66 |
| IK Rating | IK10 |
| Dimming Mode | 0-10V |
| Lens Material | PC |
| Housing Material | PC (Fiberglass Optional) |
| Sensor Options | Motion Sensor / Microwave Sensor / PIR Sensor |
| Operating Temp | -40°C ~ 50°C |
| CCT | 3 Adjustable Color Temperatures |
| Surge Protection | >6KV |
| Beam Angle | 120° |
| Warranty | 5 Years |
| Lifetime | L70B50: 100,000 hrs @ 25°C |
| Certifications | DLC Premium, LM79, LM80, ETL, FC, NEMA |
Applications
Car washes, chemical factories, livestock farms, cold storage, damp industrial workshops and other wet, vapor-rich commercial & industrial spaces
