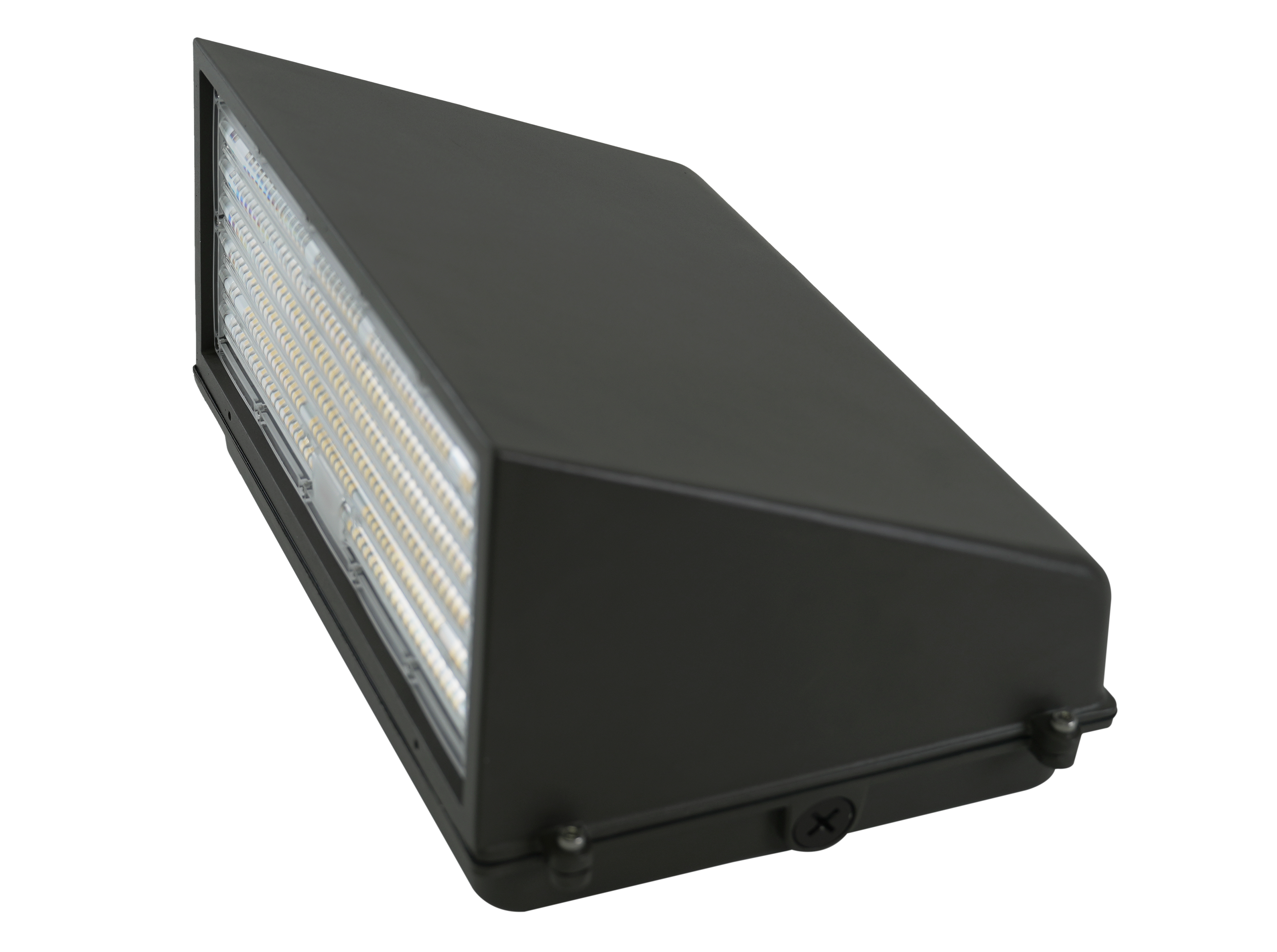

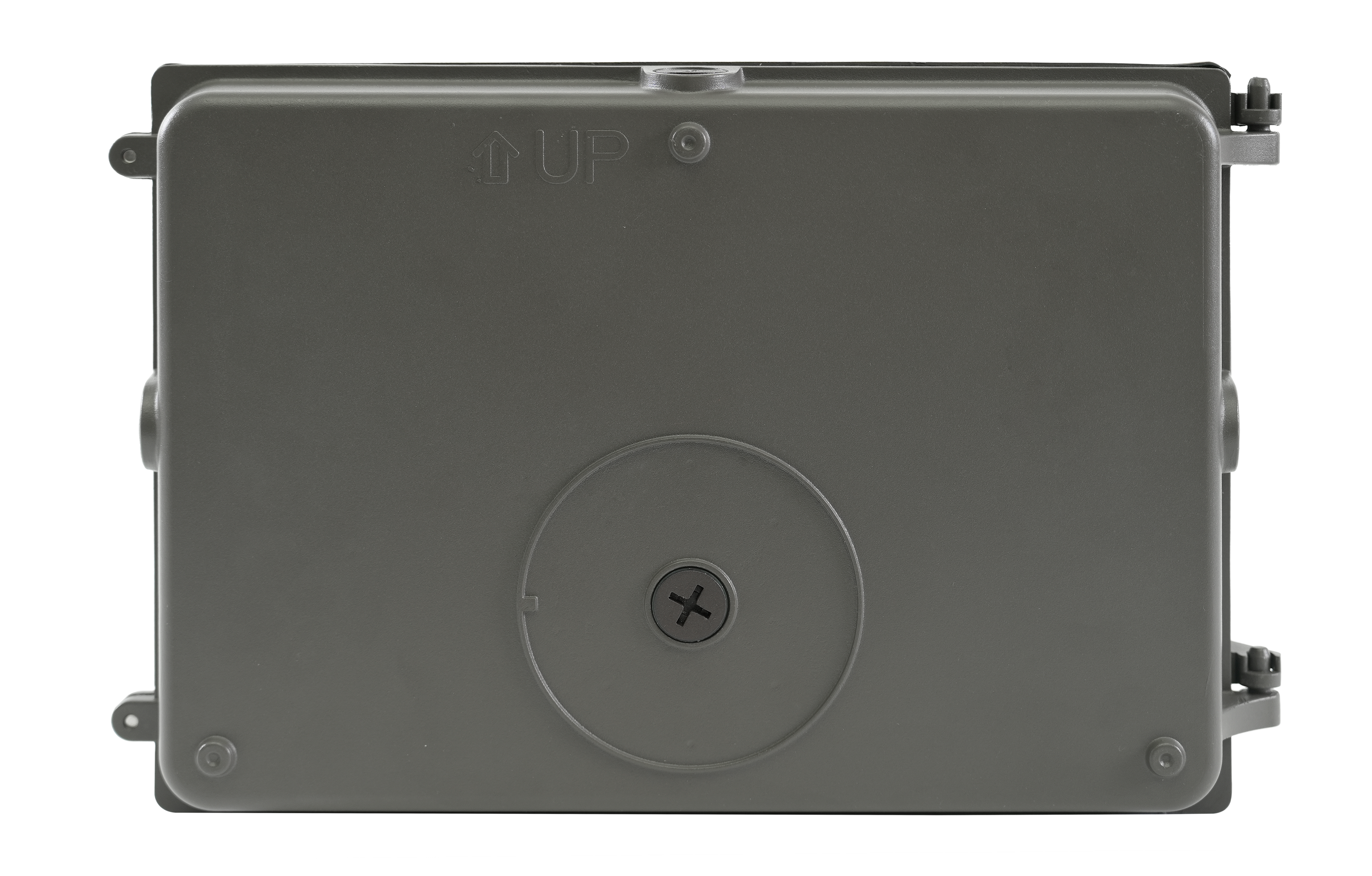

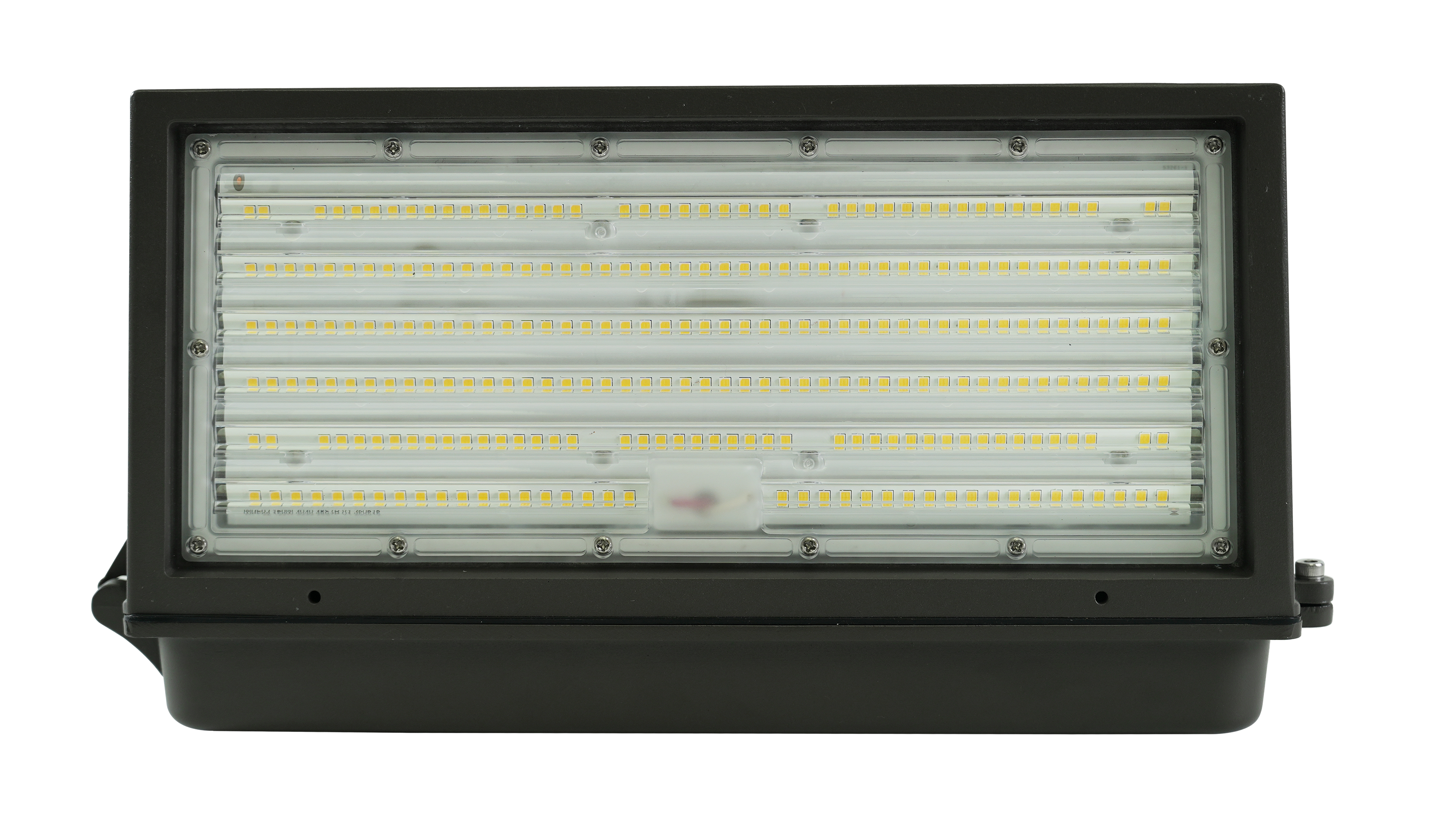

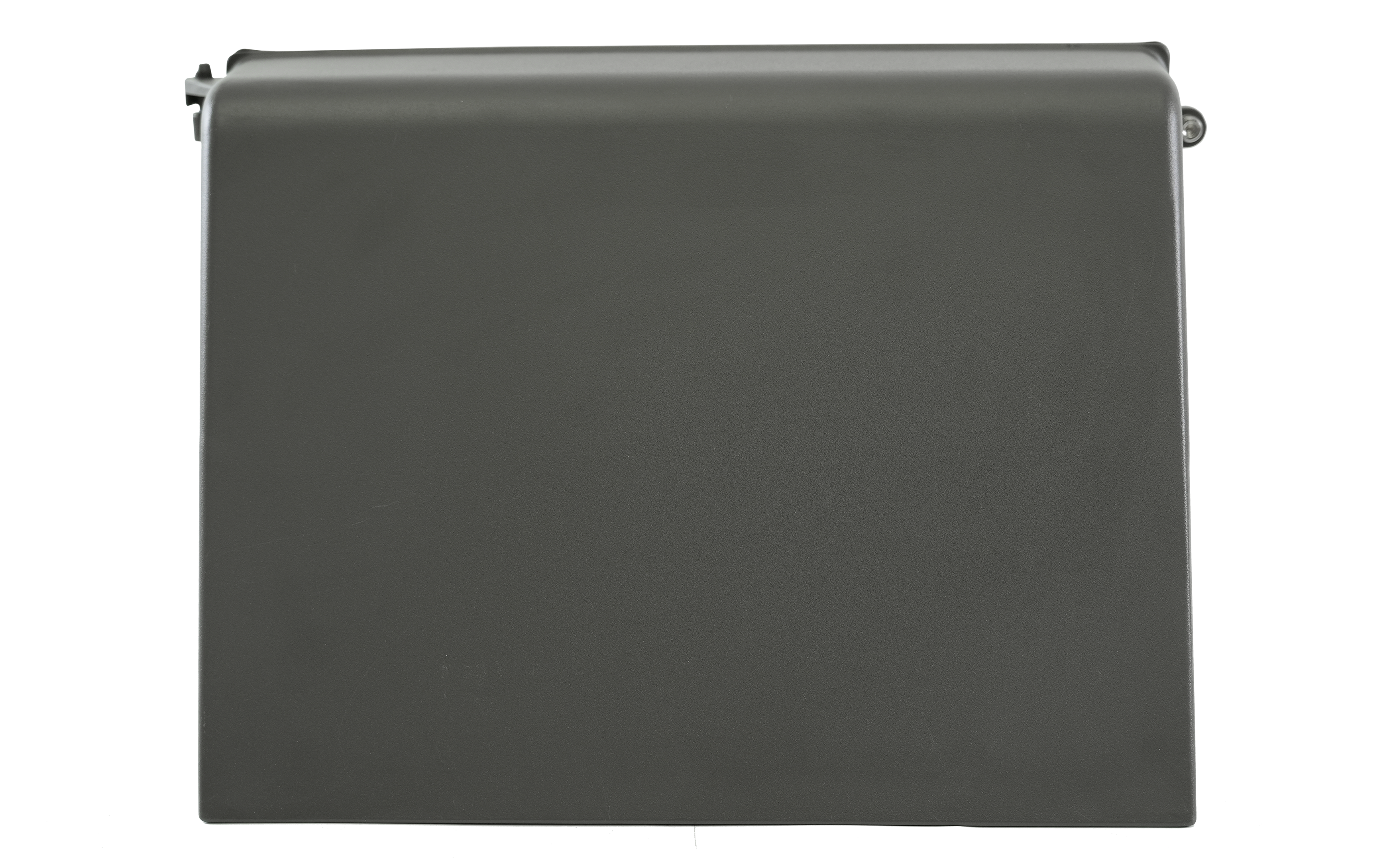

IP65 full cut-off LED wall pack light with switchable wattage for outdoor building perimeter lighting.
| Model | Wattage | Efficacy | Fixture Flux | Surge Protection | Beam Angle | Input Voltage | Dimension(LWH) | Weight |
|---|---|---|---|---|---|---|---|---|
| WPF02/150/SW/8XX/347/YY | ADJ 90/120/150W | 150 lm/W | 13500/18000/22500 lm | 6KV | Full Cut-off | 120-347V | 275152169mm / 10.835.986.65" | 3KG / 6.61LB |
| Parameter | Value |
|---|---|
| CRI | >80 |
| IP Degree | IP65 |
| IK Rating | IK08 |
| Dimming Mode | 0-10V |
| Housing Color | Black / White / Bronze |
| CCT | 4000K / 5000K |
| Mounting Type | Wall Mount |
| Operating Temp | -40°C ~ 45°C |
| Surge Protection | 6KV |
| Beam Angle | Full Cut-off |
| Warranty | 5 Years |
| Lifetime | L70B50: 50,000 hrs @ 25°C |
| Certifications | DLC Premium, LM79, LM80, ETL, FC |
Applications
Building exteriors, parking lot perimeters, commercial walkways, warehouse outer walls, school and municipal outdoor lighting
