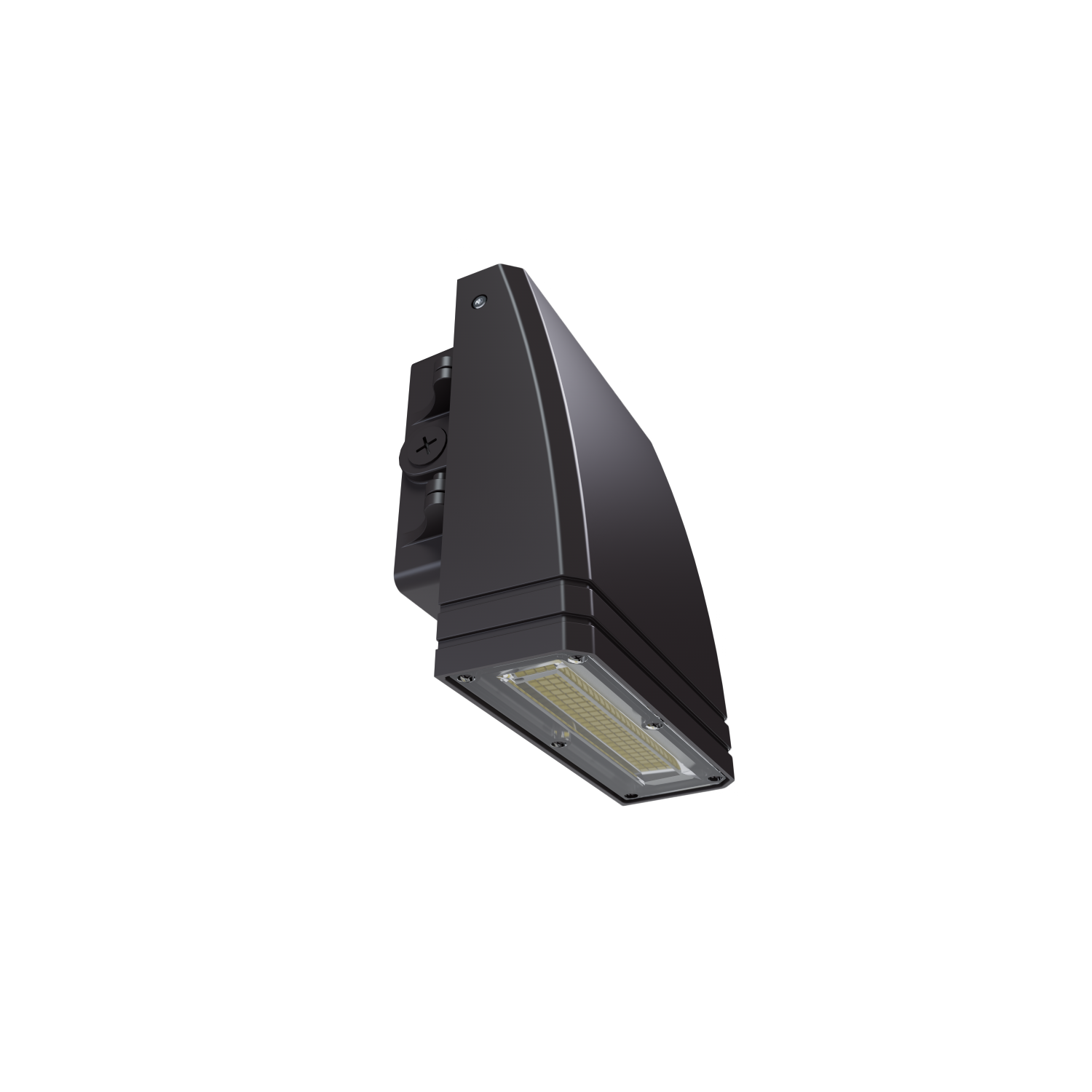

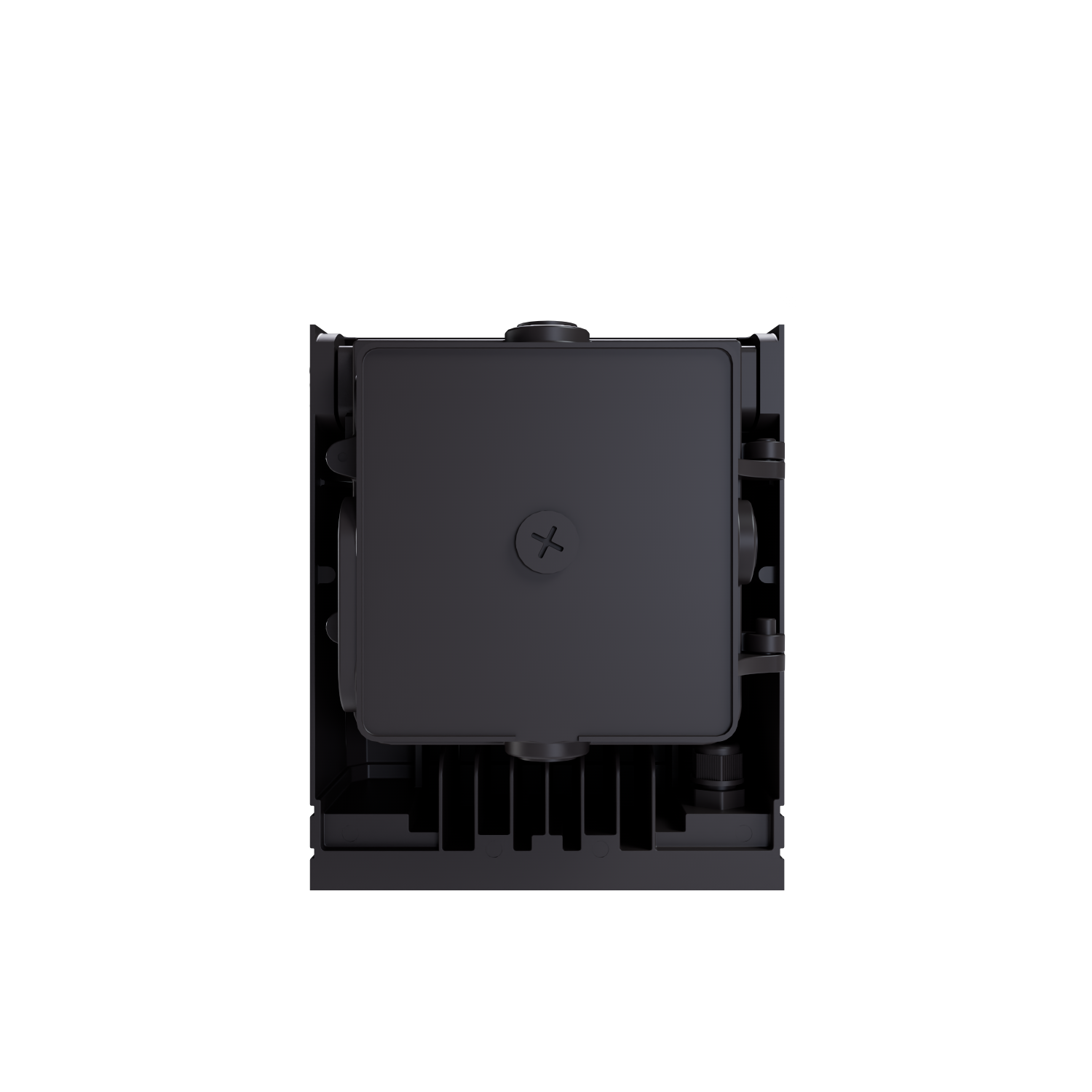

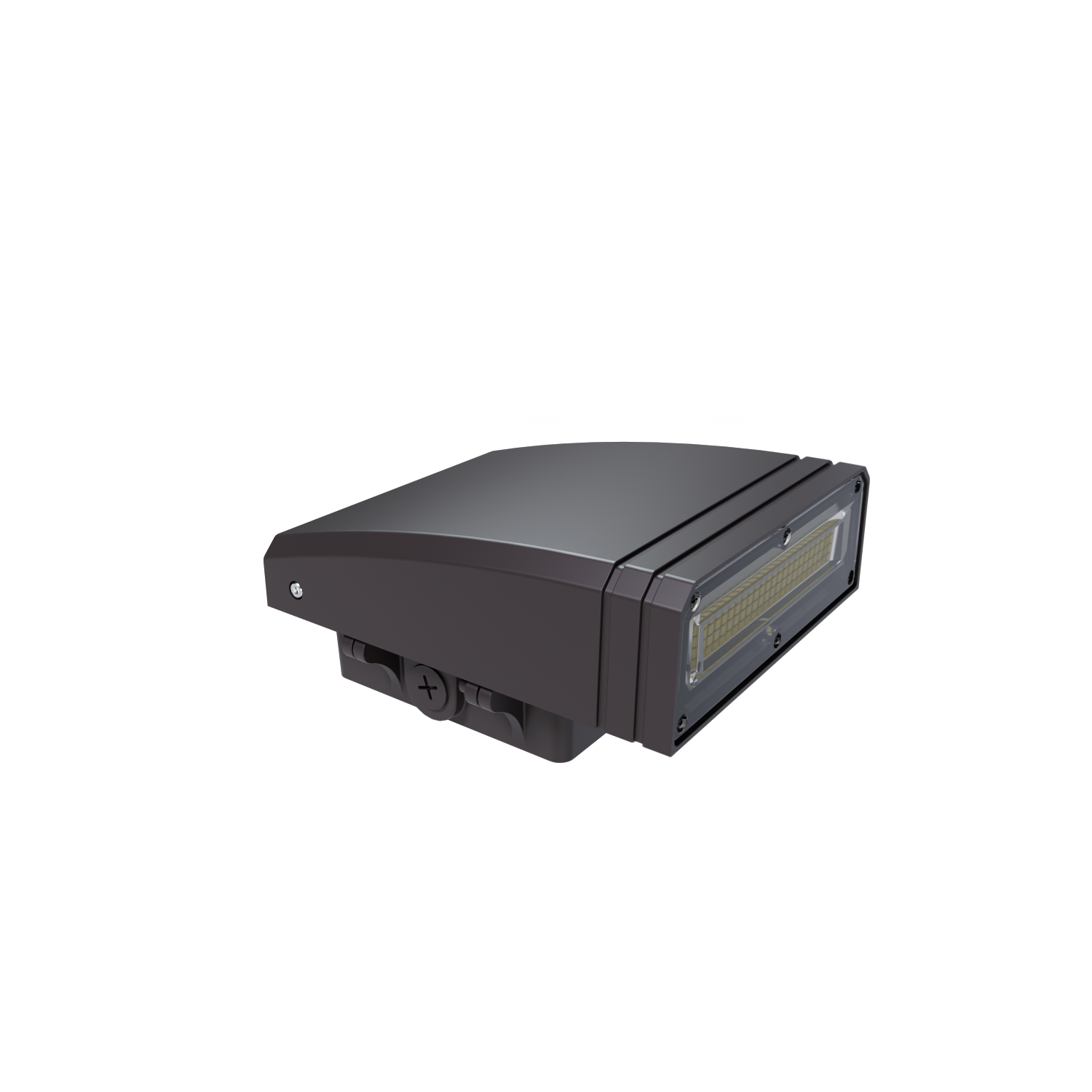

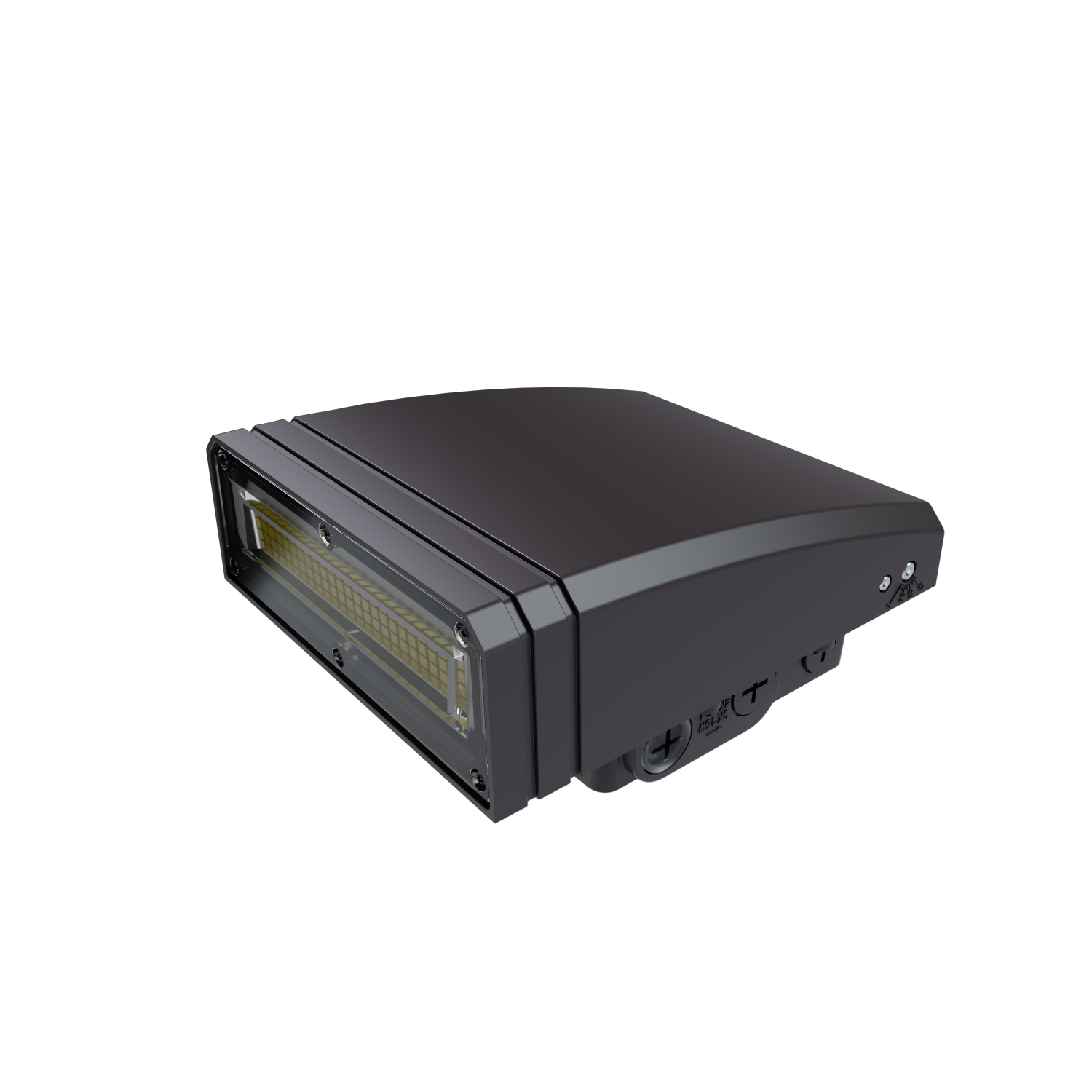

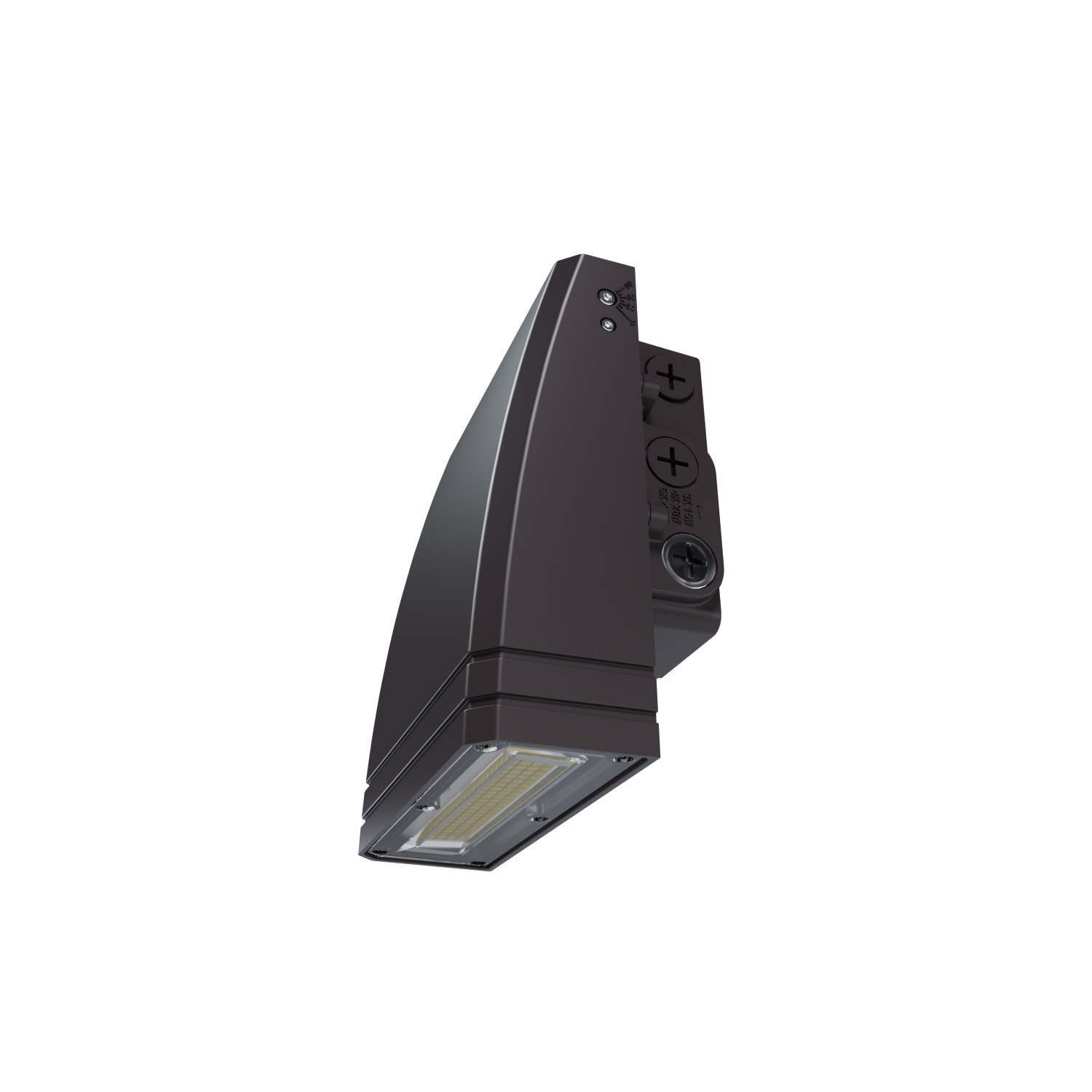

IP65 compact LED wall pack light with switchable wattage and 3 adjustable CCT for outdoor perimeter lighting.
| Model | Wattage | Efficacy | Fixture Flux | Surge Protection | Beam Angle | Input Voltage | Dimension(LWH) | Weight |
|---|---|---|---|---|---|---|---|---|
| WPS03/45/SW/8S3/YY/PHO | ADJ 15/28/45W | 120 lm/W | 1800/3360/5400 lm | 4KV | 90° | 120-347V | 200167100mm / 7.876.573.94" | 1.8KG / 3.97LB |
| Parameter | Value |
|---|---|
| CRI | >80 |
| IP Degree | IP65 |
| IK Rating | IK08 |
| Dimming Mode | 0-10V |
| Housing Color | Black / White / Bronze |
| Sensor | Built-in Photocell |
| Mounting Type | Wall Mount |
| Operating Temp | -40°C ~ 50°C |
| CCT | 3 Adjustable Color Temperatures |
| Surge Protection | 4KV |
| Beam Angle | 90° |
| Warranty | 5 Years |
| Lifetime | L70B50: 100,000 hrs @ 25°C |
| Certifications | DLC Premium, LM79, LM80, ETL, FC |
Applications
Commercial building facades, parking lot walkways, warehouse perimeter, school and municipal outdoor lighting
