UFO HIGH BAY - SKYEYE I

No.GK501

SKYEYE I is a high-output UFO LED high bay available in 100W, 150W, 200/240W, and 300W models delivering up to 40,500 lumens at 135 lm/W. IP65/IK08 rated with 0-10V and DALI dimming, 4000K CCT, and 6KV surge protection. Input voltage 120-277V and 220-240V. Three beam angle options (60°/90°/120°) and three color finishes (Black, White, Bronze). Chain or pole mount with optional PIR sensor. 100,000-hour lifetime, 5-year warranty.

Download

View all downloads

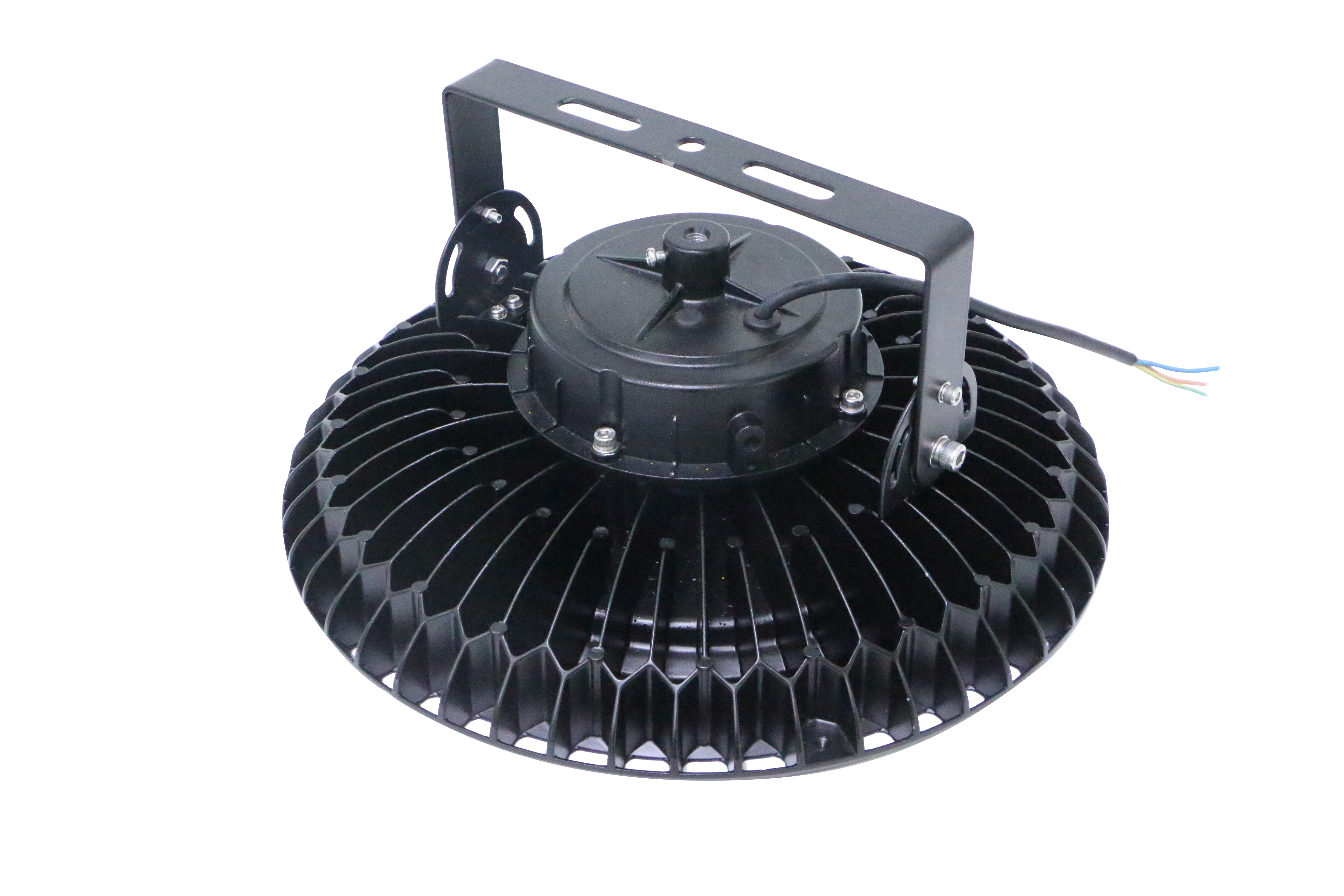

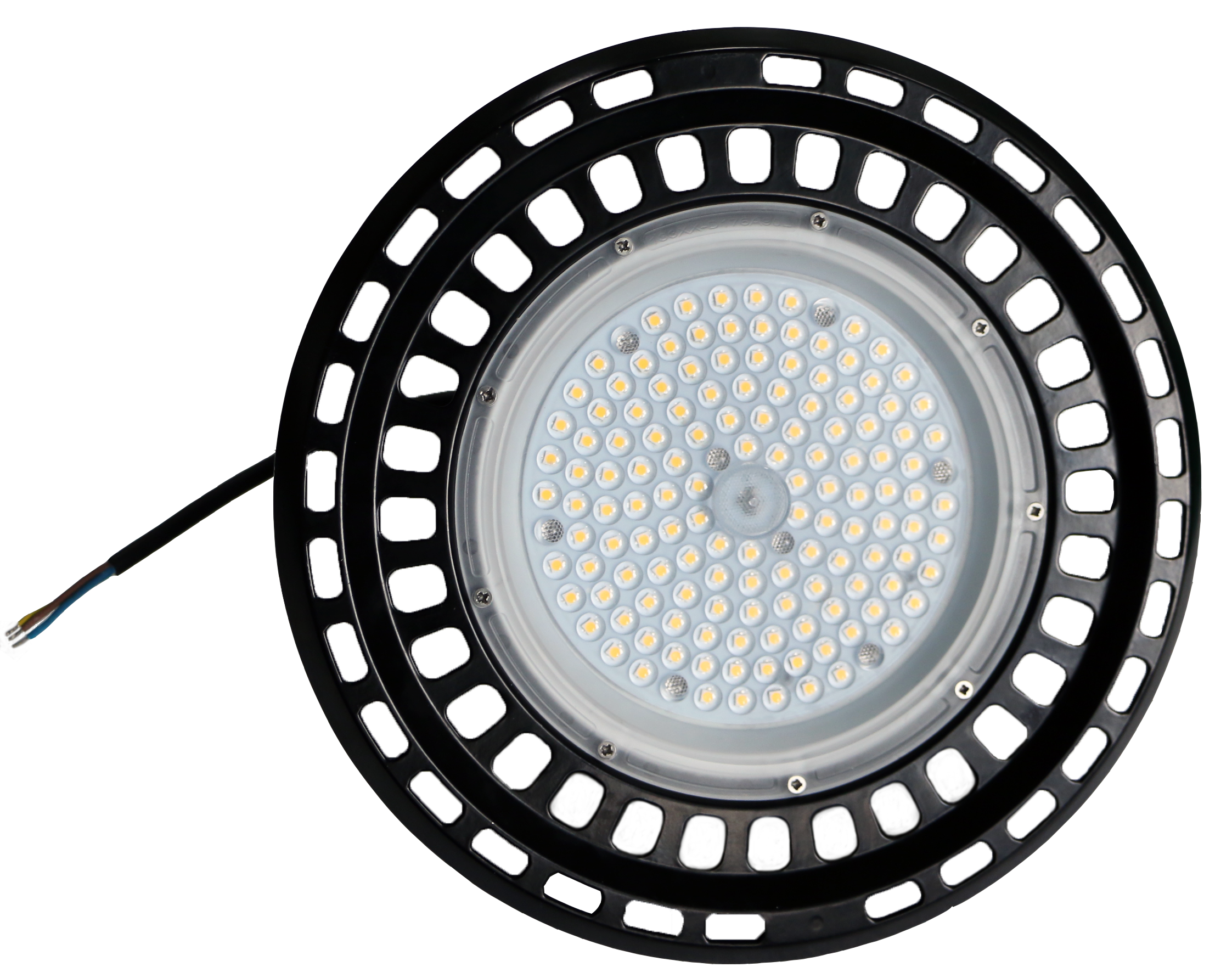

SKYEYE I — UFO LED High Bay

High-efficiency round LED high bay for warehouses, factories, and large commercial spaces. Four wattage options cover projects from small workshops to heavy industrial facilities. Standard 0-10V/DALI dimming and selectable beam angles for flexible installation.

Model	Wattage	Efficacy	Lumens	Surge Protection	Input Voltage
GK501/100W	100W	135 lm/W	13,500 lm	6KV	120-277/220-240V
GK501/150W	150W	135 lm/W	20,250 lm	6KV	120-277/220-240V
GK501/200-240W	200/240W	135 lm/W	27,000/32,400 lm	6KV	120-277/220-240V
GK501/300W	300W	135 lm/W	40,500 lm	6KV	120-277/220-240V

Key Features

4 Wattage Options — 100W / 150W / 200-240W / 300W for different ceiling heights and area sizes
135 lm/W Efficacy — High lumen output reduces fixture count
3 Beam Angles — 60°/90°/120° selectable for various mounting heights
Dual Dimming — 0-10V and DALI compatible
6KV Surge Protection — Reliable in storm-prone areas
3 Finishes — Black, White, Bronze

Specifications

Parameter	Value
CRI	＞80
IP Rating	IP65
IK Rating	IK08
Dimming	0-10V / DALI
Color Temperature	4000K
Mounting	Chain / Pole Mount, Wall Mount with Bracket
Operating Temp	-30℃ ~ 45℃
Sensor	PIR Light Control (Optional)
Warranty	5 Years
Lifetime	L70B50: 100,000 hrs @ 25℃

Applications
Warehouses · Factories · Gymnasiums · Large Retail Spaces
